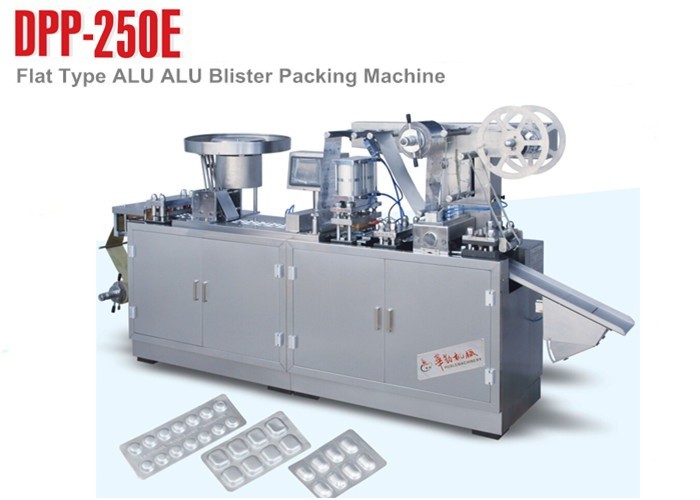

Name: Muti-function Automatic Blister Packaging Machine Alu PVC / Alu Alu Blister Packing Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-250E
Availability: InStock

Home Products Alu Alu Blister Packing Machine

Muti-function Automatic Blister Packaging Machine Alu PVC / Alu Alu Blister Packing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-250E

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Alu Alu Blister Packing Machine	Output:	Max.30 Cutting/min
Max. Forming Area And Depth:	25012012	Pulling:	Step Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection
Plate Correspondence:	PRC System	Used:	Alu-PVC Blister And Alu-Alu Blister
Highlight:	Pharmacy Blister Packaging Machine , Capsule Packing Machine

Muti-function Automatic Blister Packaging Machine Alu PVC / Alu Alu Blister Packing Machine

Specifications

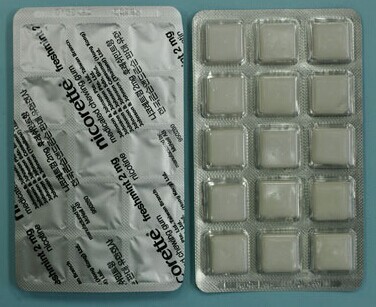

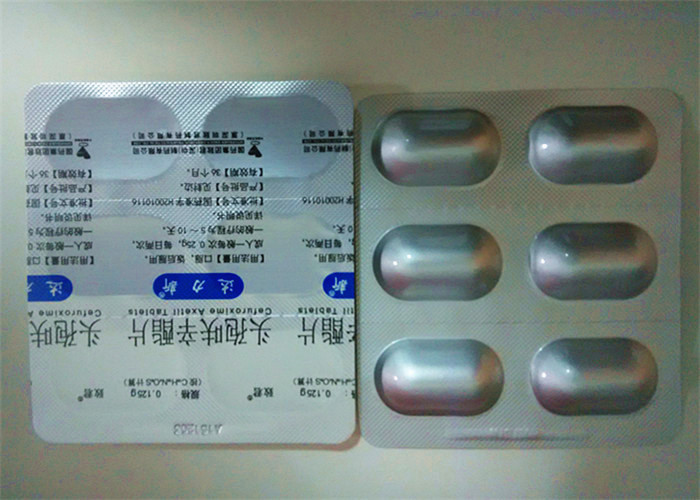

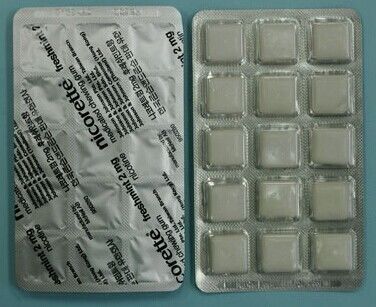

This product adopts international popular materials with good sealing,anti-moisture, protecting from light, using a special cold forming. It is a new equipment in the pharmaceutical industry, which will combine both functions, Alu-Alu and Alu-PVC by changing moulds.
Model	ALU ALU	ALU-PVC
Machine Body	Stainless Steel 304/316
Blanking frequency(times/min)	15-30	20-45
Adjustable pulling length	30-120mm
Max Forming area and depth(mm)	25012012	25011015
Air compressor(self-prepared)	0.6-0.8Mpa ≥0.45m3/min
Mould cooling	(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)	380V/220V 50HZ 4.5KW	380V/220V 50HZ 8KW
Wrapper specification (mm)	Alu Alu Foil 260(0.14-0.18)(Φ400)	PVC 260(0.15-0.4)(Φ400)
	Aluminum Foil: 260(0.02-0.15)(Φ400)
Overall Dimension(LWH) (including foundation)	29007501600
Dimension of Each Part	15007501600(front)
	14007501450(back)
Weight	About 1200kg

Description

Main motor adopts inverter speed controlling system.
It adopts newly designed double hopper feeding system with high precision optical control for automatic
and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.(the
feeder can be designed according to client’s specific packaging object.)
Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing and
adjusting.
The machine will stop automatically once the materials are finished. Also it has installed emergency stop
to keep safety when the workers run the machine.
Organic glass cover is optional.
