Place of Origin: | CHINA |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | CE ISO9001 |
Model Number: | DPP-140E |
Minimum Order Quantity: | 1Set |
Price: | Negotiation |
Packaging Details: | WOODEN BOX. |
Delivery Time: | 30 working days after received your payment. |
Supply Ability: | 15 Set per month |
Product Name: | Alu Alu Blister Packing Machine | Output: | Max.30 Cutting/minute |
---|---|---|---|
Max. Forming Area And Depth: | 140mm*110mm*12mm | Pulling: | Step Motor Pulling |
Punch Pin: | PTFE(High Temperature Resistant, Non Stick Coating) | Detection System: | Mechanical Or Visual Detection |
Plate Correspondence: | PRC System | Used: | Alu-PVC & Alu-Alu |
Warranty: | 1year | ||
Highlight: | Alu Alu Blister Machine,Capsule Packing Machine |

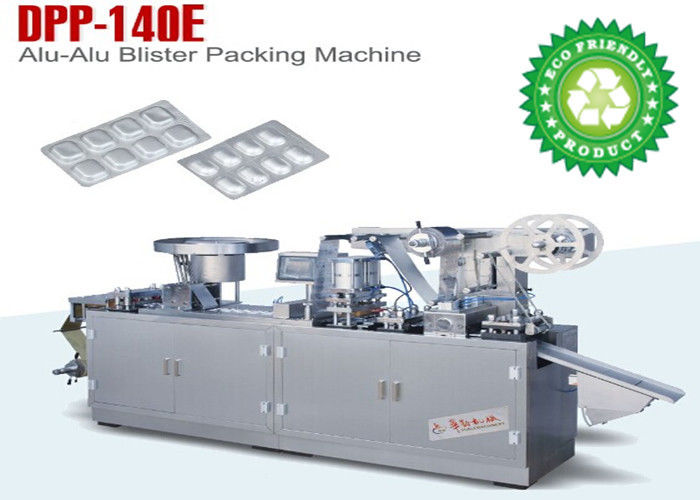

DPP-140E Full Automatic Capsule Alu Alu Blister Packing Machine for small Pharmacy Plant
Introduction:
This machine is designed in strict compliance with GMP standard, advanced functions, easy to operated,
high output.
Packaging Features:
protect the material from steam or dust
improve product packing degree,
increase the additional value.
Description:
1. Adopts SIMENS PLC control with touch screen displayed in Chinese and English, Frequency inverter for
speed control,servo traction,which can ensure the length of blister traction adjustable within the range.
2.The machine station module type design of level frame,good sight,safe and convenient easy operation.
3. Thermal with contact type,positive press formed,air cushion thermal seal upper and lower net,photo register
make your product package better.
4.Detachable design make the blister packing machine can be easily carried and installed according to the
requirement of user.
Technical Parameter:
Model DPP-140E | ALU-ALU | ALU-PVC | |
Cutting Frequency(ideal sizes:80*57mm) | 15-30 cutting/min | 20-45 cutting/min | |
Max. Forming Area and Depth | 140×110×12mm | 140×110×15mm | |
Adjustable Scope of Travel(mm) | 30-120mm | 30-120mm | |
Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.4)×150×(Φ350) | |
PTP(mm) | (0.02-0.15)×150×(Φ250) | (0.02-0.15)×150×(Φ250) | |
Alu Alu Foil | (0.14-0.18)×150×(Φ350) | ||
Paper(mm) | (50-100)g/㎡ | ||
Power | 380V 50Hz 3kw | 380V 50Hz 5.5kw | |
Air compression(self-prepared) | 0.6-0.8Mpa≥0.4m³/min | 0.6-0.8Mpa≥0.4m³/min | |
Recycle water or circulating water consumption | 40-80L/h | 40-80L/h | |
Overall Dimension(L*W*H)(including foundation) | 2400×650×1450 | 2400×650×1450 | |
Dimension of Each Part | 1350×650×1450(front) | 1350×650×1450(front) | |
1050×650×1450(back) | 1050×650×1450(back) | ||
Weight | About 800kg | About 800kg |
Machine eletric Parts List
Name | Type | Brand | Number | Note |
Touch screen | MT506lv45wv | weinview(Taiwan) | 1 | |
PLC motor | DVP32ES00T2 | DELTA | 1 | |
Temperature controller | DVP4848V1 | DELTA | 3 | |
Transducer | VFD015B43A | DELTA | 1 | |
Stepping motor | 110BYG350A(200NM) | Wuxi tonghui | 1 | |
Stepping drive | HB-B3C | Wuxi tonghui | 1 | |
Encoder | ZLB2.806-G-500BM | ZDDT(Taiwan) | 1 | |
Air Circuit breaker | BKN-3P/32A | LG | 1 | |
Air circuit breaker | BKN-1P/16A | LG | 1 | |
Air circuit breaker | BKN-1P/10A | LG | 3 | |
Air circuit breaker | BKN-1P/3A | LG | 1 | |
A.C contactor | GMC-32 | LG(AC220v) | 1 | |
relay | MY2NT | OMRON(DC24v) | 1 | |
Approach switch | TL-Q5MC1 | Bardelli | 2 | |
Delay approach switch | J6-D7NK | Bardelli | 3 | |
Urgent stop switch | ZB2-BS54C | Baredelli | 1 | |
Power switch | 110/220V | mingwei | 1 | |
Thermocouple | Model K 3m | Meigeer | 3 | |
SSVR | AC250V/25A | Meigeer | ||
Switch power adapter | S-30W | 1 | 24-5V | |
Solid state relay | 25DA | OMRON | 3 | AC 220V |
Optical testing | E32-D32 | OMRON | User need |
