Place of Origin: | China |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | ISO9001 |
Model Number: | DPP-320 |
Minimum Order Quantity: | 1Set |
Price: | Negotiation |
Packaging Details: | Wooden Box |
Delivery Time: | 50 working days after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 10 Set per month |
Product Name: | Paper And PVC Blister Packaging Machine | Max. Forming Area And Depth: | 250*160*40 |
---|---|---|---|
Max.Paper-card Size: | 320*220(200-700g) | Material Consist: | Stainless Steel 304 |
Control: | PLC Control | Used: | Medicine, Daily Necessities, Etc. |
Highlight: | PVC Blister Packing Machine,Blister Packing Machines |

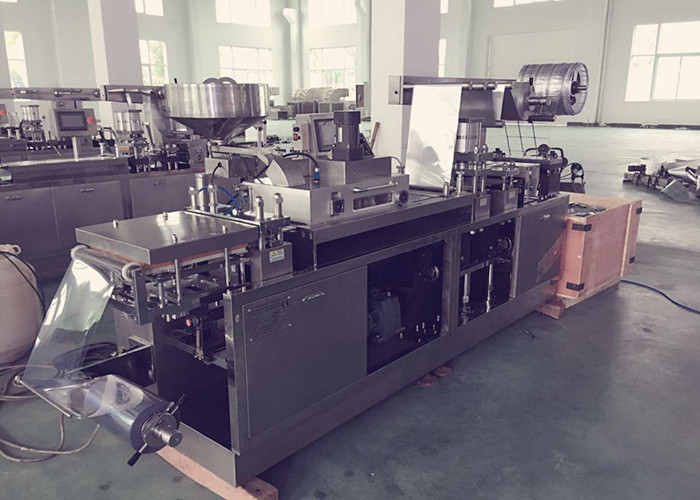

DPP-320 Automatic Stainless Steel Pharmacy Capsule Blister Packing Machine
Specifications
Item Model |
DPP-320 |
Max. Cutting Speed |
25times/min |
Max. Forming Area |
250*160(mm) |
Max. Paper-card Size |
320*200(mm)(200g-700g) |
Adjustable Pulling Length |
40-160(mm) |
Max. Forming Depth |
40(mm) |
Power |
380v 50Hz 9kw |
Air Compression |
≥0.25m3/min |
Overall Dimension(L*W*H) |
4800*600*2000(mm) |
Weight |
1500kg |
Description
1. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.
2. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
3. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.
4. Photo electrical control, auto detection.
5. Separated card feeder, which will reduce the labor force.
6. The whole machine is separately designed, it is convenient to delivery with lift.
7. To design the mold and auto feeding method according to the product shape.
Applications
The machine adopts frequency control of motor speed. Collecting machine, electricity, photo, air to integrate. And innovative design, manufacture according to National Standard strictly. Flexible stroke, modularize station structure, easy operate, high output, low noise, and equipped with beautiful out looking. Automatic toothbrush machine is applicable for paper-plastic packing articles of daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glues, plug base, bearing, etc. to improve the grade of the finished products.
