Place of Origin: | CHINA |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | CE ISO9001 |
Model Number: | DPP SERIES |
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wooden Box. |
Delivery Time: | 45 working days after received your payment |
Supply Ability: | 5 Set per month |
Name: | Blister Line | Output: | 30-100 Boxes/min |
---|---|---|---|
Uesd: | Pharmaceutical Package | Power: | 380/220V 50HZ |
Air Consumption: | 120-160L/min | Machine Size: | According To Customer's Workshop Design |
Highlight: | Tablet Packaging Machine,Blistering Machine |

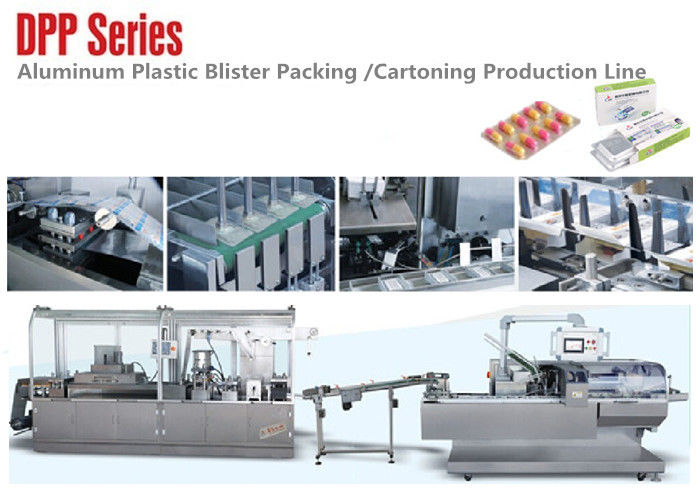

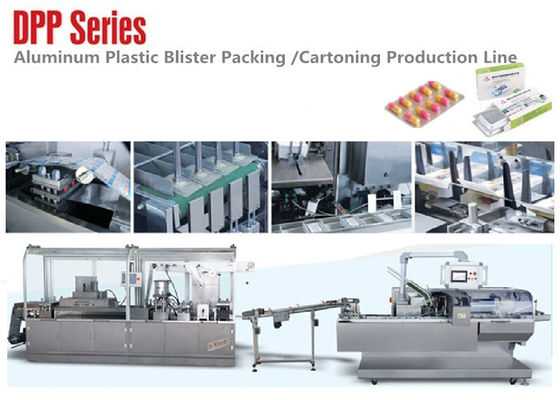

High Speed ALU PVC Blister Line Pharmaceutical Blister Packaging Machines
This production line is suitable for high speed alu pvc packing of medicines,especially capsules,tablets and sugar-coated tablets.It is equipped with automatic inspection and rejection device.Blisters automatically queue to be transmitted to high speed automatic cartoning machine’s feeder,then automatic high speed cartoning machine packs blisters and leaflets into cartons and do batching no.The entire process is automatically controlled to save labor and work space,The high automation and high purity also make machine more in line with GMP standard. |
||
Blister | ALU-Plastic | |
Speed |
30-100 boxes/min |
|
Power |
380V 50Hz 11.5kw |
|
220V 50HZ 1.5kw |
||
Recycle water or circulating water consumption |
40-80L/h |
|
Air compressor(self-prepared) |
Pressure |
0.6-0.8Mpa≥0.9m³/min |
Air consumption |
120-160L/min |
|
Attention: these are just for your reference, and the final design will be depend on your workshop. |
