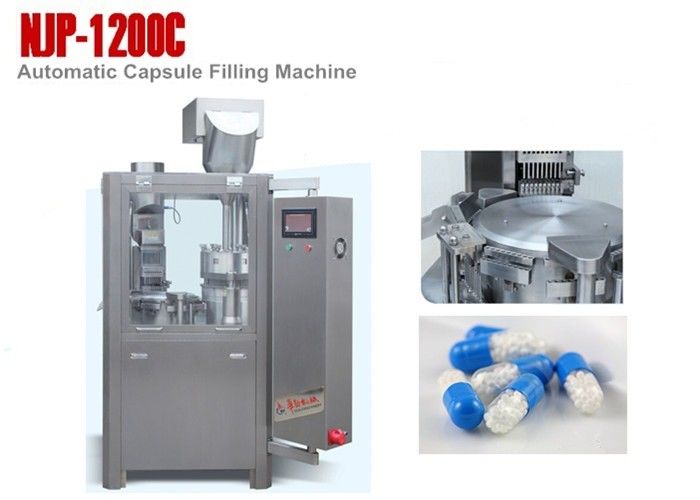

Hard Gelatin Automatic Capsule Filling Machine / Gel Capsule Filling Machine

The working station cam runs under the good lubricating condition, increase the pressure spray pump, maintain the lubrication of cam slot, reduce wear, longer the service life of spare parts.
Automatic hard Capsule filling  Machine adopt computer controller, has frequency conversion, digital display makes an easy operation and clear appearance.
Automatic hard Capsule filling  Machine can automatically completely capsule feeding, separating, filling, (waste capsule rejecting), capsule closing, finished product discharging and die cleaning.


Specifications

• Independentcontrol systerm , which make the main moter and the mechanical systerm is not mutual interference each other .
• There is big resistance when the filling pole running up and down. to ruduce this resistance ,we adopt counterweight assistant .guaranteeing the machine running safely.
• conditioning site adopt clear handspike enter into the lower module derectly and with the air . to make the power which is in the upper and lower module can be cleared in time . avoide the left powder influence the next station .
• To increase the transmission torquemoment ,increase the diameter of the principal axis , to make sure the transmission more stablely and asol increasing load resistor ability.
• Die hole array with Back and forth derangement ,which is greatly increase the powder filling precision ,make sure the filling capcity is more exactly .
• Adopt multiholedoctor brade , make the podwer can be dispersed equably on the dosing disc , which is more favorable for the capacity exactly .
• New stucture twelve state totally closed batch type rotating floor .upper and lower module uni-directional running is safe and reliable . totally closed structure make the products prevent the lubrication oil from pullution .accordong with GMP.
• Simplify quibcunx leveling stucture and upper base . which is convience to cleaning the spread powder and increasing the work efficiency .
• Batch gas auxiliary system for exhausting capsule , avoid exhaust long time and without a break .
• Accurate orientation, Capsule vacuum positioned mechanism to make the capsule upload percentage over 99%.
• Freely adjusting dosage, easy speed selection and closed capsule length adjustment.
• PLC program control panel with LCD.touch screen operation, and monitoring function.

Product Picture
