Oil Free Vacuum Pump Hard Capsule Filling Machines Fully Automatic Capsule Filler

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE/ISO9001
Model Number:	NJP-200C

Minimum Order Quantity:	1 Set
Price:	Negotiation

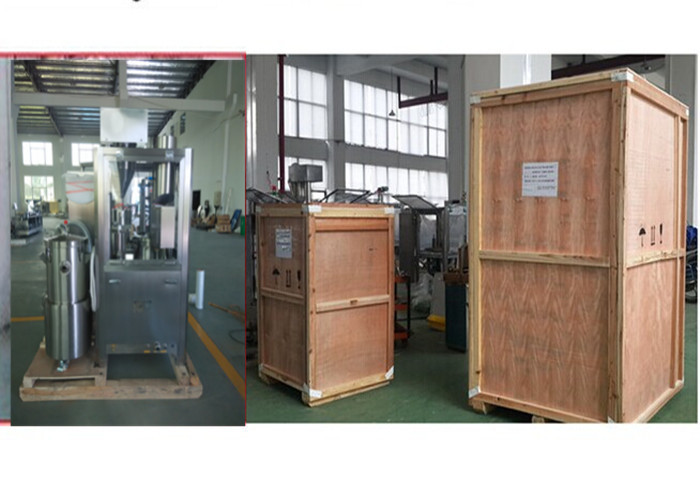

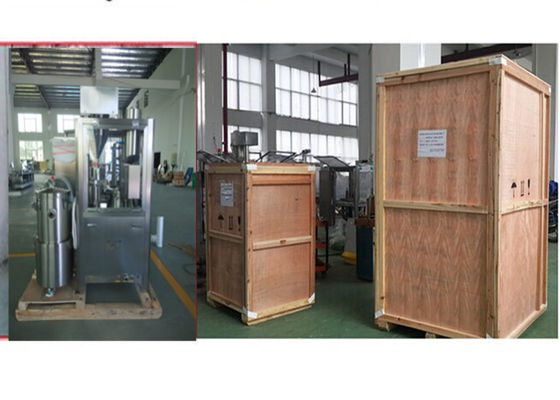

Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	30 Set per month

Get Best Price Contact Now

Product Name:	Aotomatic Capsule Filling Machine	Material Consist:	Stainless Steel 304/316
Control:	PLC Control	Vacuum Pump:	Water Circulating Vacuum Pump
Fining Precision:	Higher Than 99%	Guarantee:	1year
Highlight:	Automatic Capsule Filler , Capsule Filler Machine

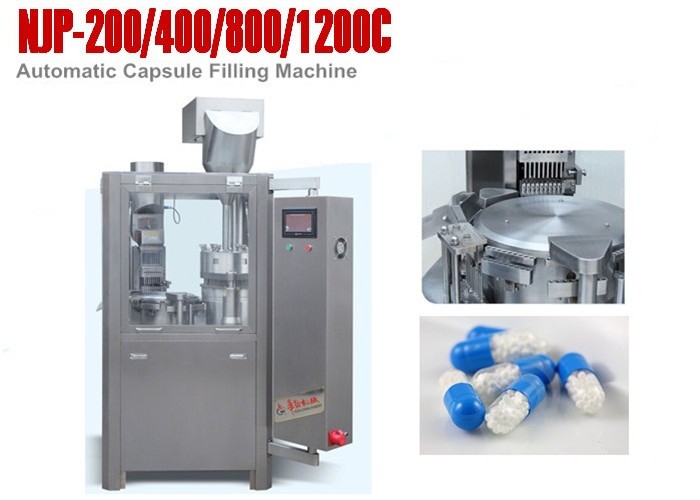

Automatic Capsule Filling Machine

Specifications

Model	NJP-1200	NJP-800	NJP-400	NJP-200
Output	1200	800	400	200
NO of Filling hole	9	6	3	2
Capsule filling hole	00#-4#	00#-4#	00#-4#	00#-4#
Total Power	5kw	4kw	3kw	3kw
Weight	900kg	800kg	700kg	600kg
Dimension	800×1000×1800mm	730×950×1800mm	700×900×1800mm	610×670×1800mm

Description

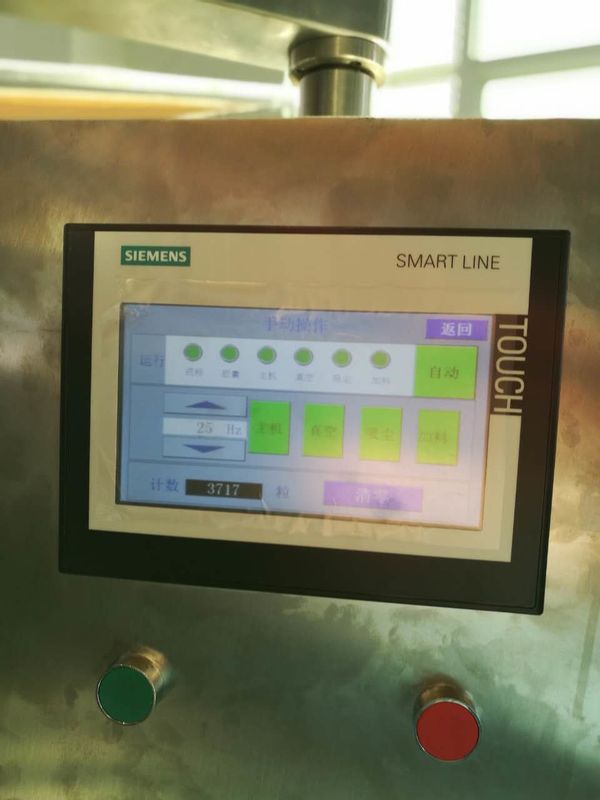

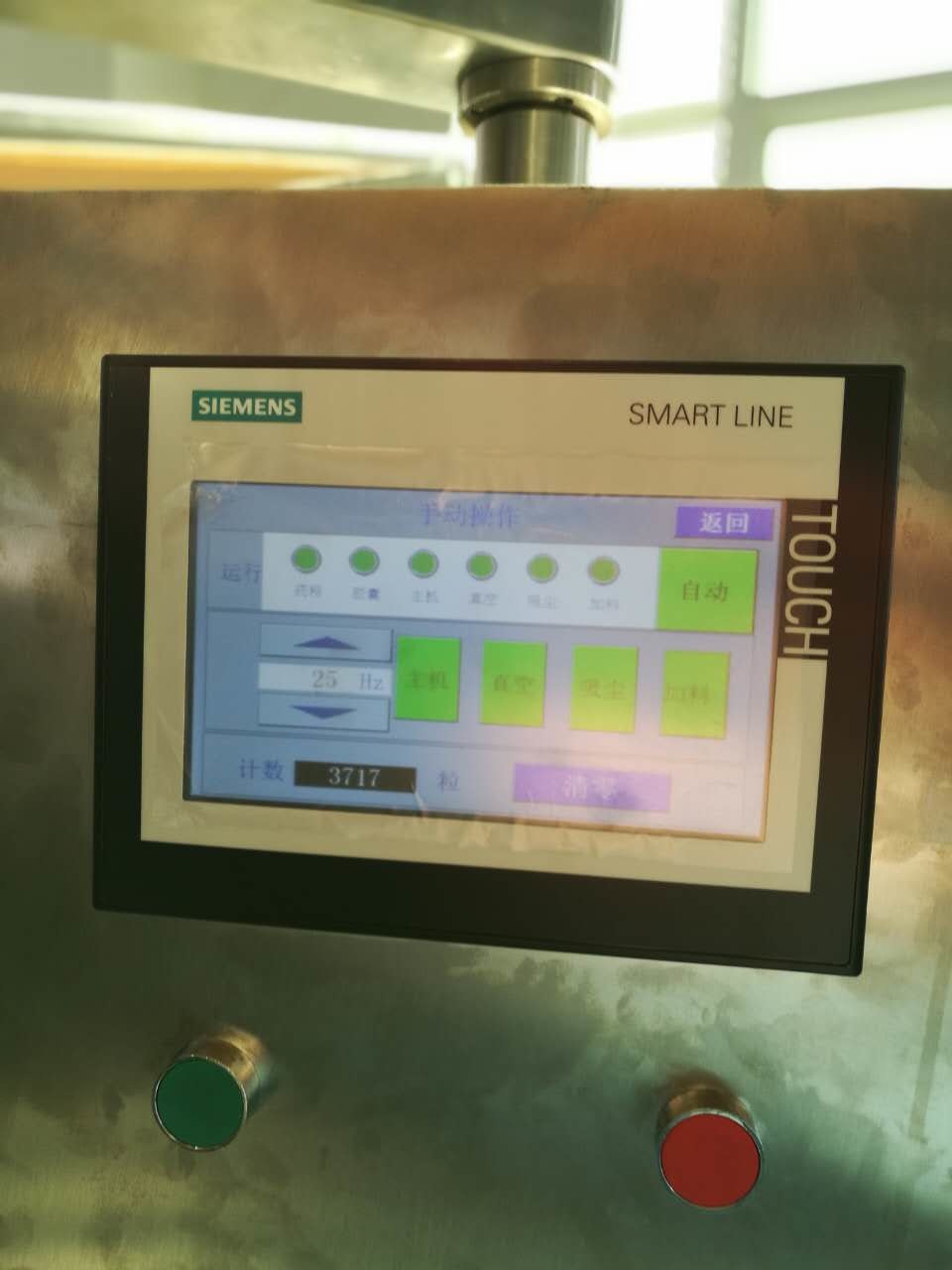

Touch Screen operation system with PLC Control ensure the machine under stable working situation.

Imported Filling Spring affords million times pressing but never change their shape to ensure the filling dosage in accurate range.

High efficiency German brand Siemens vacuum pump ensure machine in long time working.

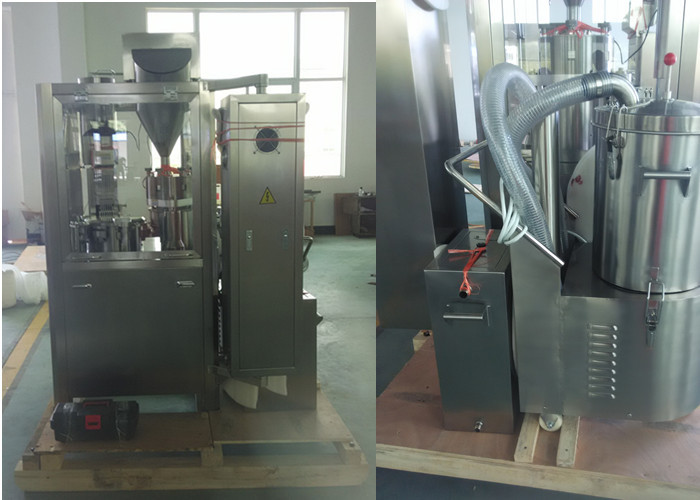

High efficiency industrial dust collector for saving material and ensure machine under cleaning environment working.

The moulds are all processed in our CNC Machining Center to make machine accurate working without wear out or wrong dosage.

Online status printing is available

Automatic capsule and powder elevator are available.

Applications

This machine is an intermittent full automatic capsule filling machine with multiple tamping stations,precise design and stable performance.It can complete the following process automatically:feeding capsule,separating capsule,filling,rejecting defective capsule,closing,discharging finished capsule.It adopt totally enclosed rotary table with twelve stations.There are 6 holes in single row on the module.Machine performance meet international advanced standard,which also meet the requirement of "GMP"and FDA standard.It's absolutely the most ideal equipment for producing capsule products.
