Name: Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-140E
Availability: InStock

Home Products Alu Alu Blister Packing Machine

Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-140E

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Small Alu Alu Blister Packing Machine	Output:	Max.30 Cutting/min
Max. Forming Area And Depth:	14011012	Pulling:	Step Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection
Used:	Alu-PVC Blister And Alu-Alu Blister
Highlight:	Alu Alu Blister Machine , Capsule Packing Machine

Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder

DPP-140E

Model	ALU-ALU	ALU-PVC
Machine Body Material	SS 304/316
Blanking frequency(times/min)	15-30	20-45
Adjustable pulling length	30-120mm
Blister Size	Design According To Customers’ Requirements
Max Forming area and depth(mm)	14011012	14011015
Air compressor(self-prepared)	0.6-0.8Mpa ≥0.4m3/min
Mould cooling	(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)	380V/220V 50HZ 3KW	380V/220V 50HZ 5.5KW
Wrapper specification (mm)	Alu Alu Foil 150(0.14-0.18)(Φ400)	PVC 150(0.15-0.4)(Φ400)
	Aluminum Foil:150(0.02-0.15)(Φ400)
Overall Dimension(LWH) (including foundation)	24006501450
Dimension of Each Part	13506501250(front)
	10506501450(back)
Weight	About 800kg

Description

Main motor adopts inverter speed controlling system.
and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
and
Organic glass cover is optional.

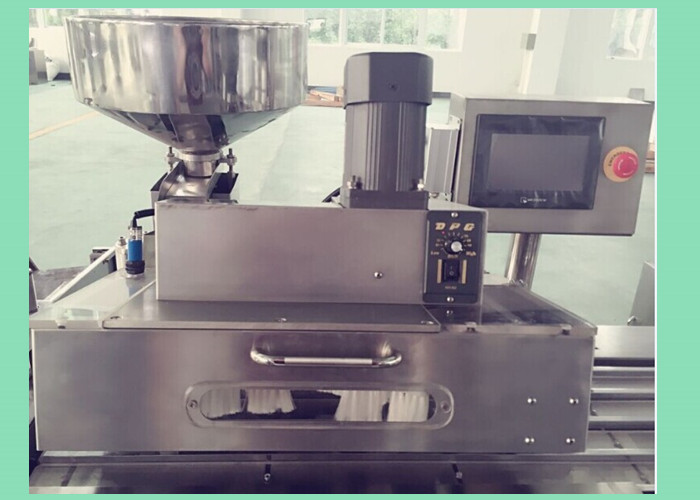

It adopts newly designed double hopper feeding system with high precision optical control for
automatic
The machine will stop automatically once the materials are finished. Also it has installed emergency

Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder 0

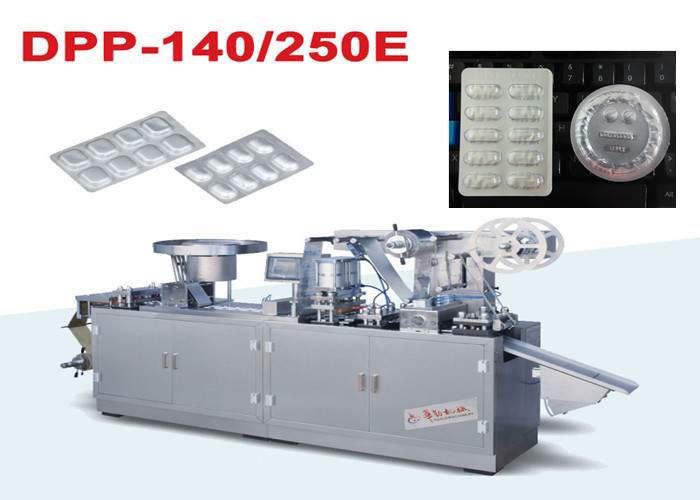

OVERALL SKETCH

Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder 1

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separatly.
If there are strict requirements, chassis can use iron girders.

Pharmaceutical Industry Automatic Alu Alu Blister Packaging Machine With Cylinder 2
