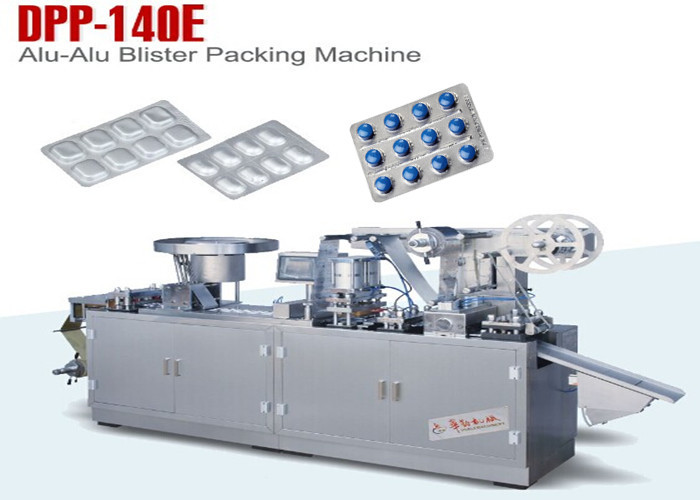

Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging

Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging
Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging
Basic Information
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-140E
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 30 working days after received your payment.
Supply Ability: 15 Set per month
Get Best Price Contact Now
Product Name: Small Alu Alu Blister Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 140*110*12 Pulling: Step Motor Driving
Punch Pin: PTFE（High Temperature Resistant, Non Stick Coating） Detection System: Mechanical Detection Or Visual Inspection
Used: Alu-PVC Blister And Alu-Alu Blister
Highlight:

Pharmacy Blister Packaging Machine

,

Capsule Packing Machine





Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging

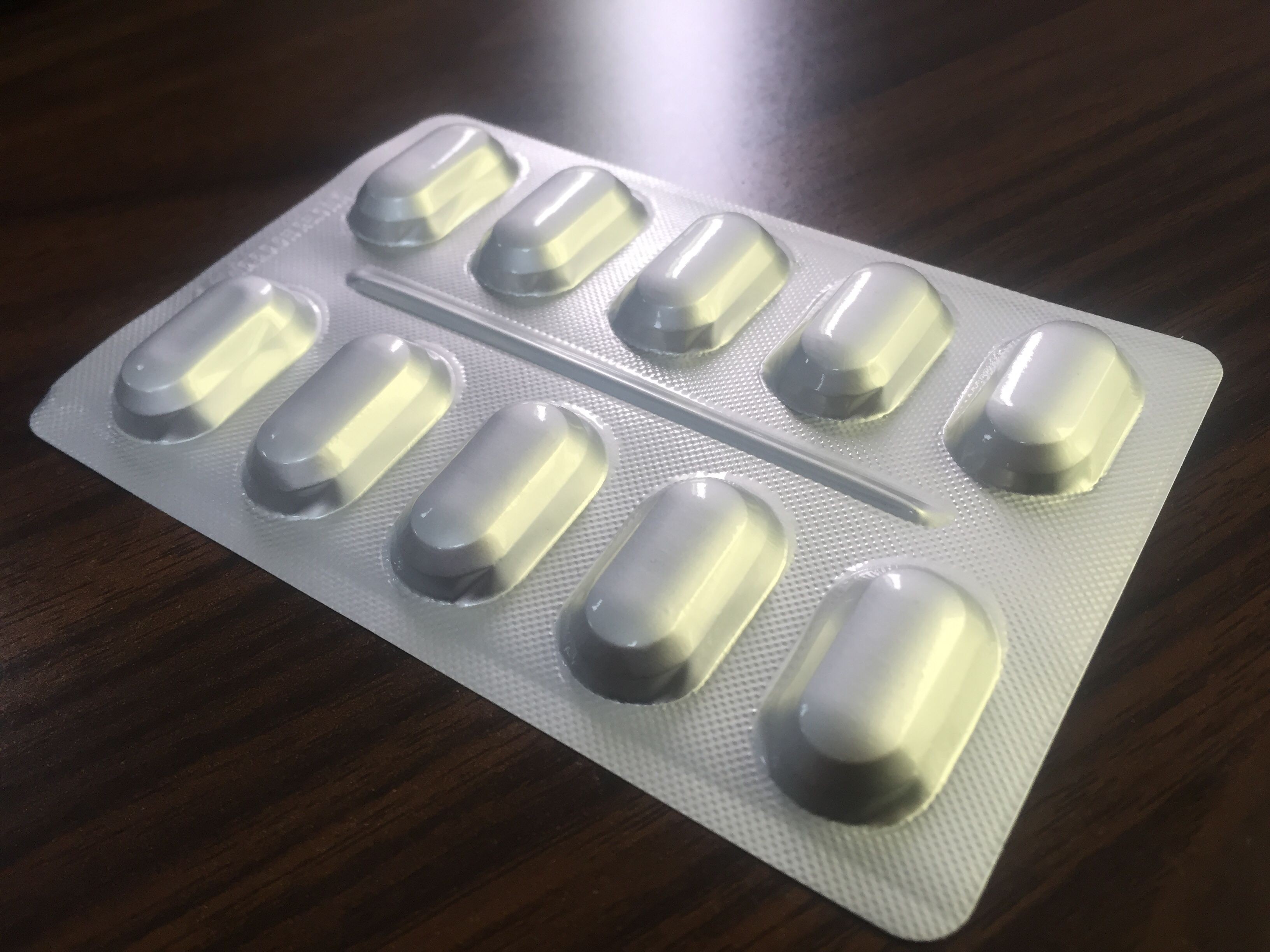

Can make both ALU-ALU and ALU-PVC





DPP-140E



Model

ALU-ALU

ALU-PVC

Machine Body Material

SS 304/316

Blanking frequency(times/min)

15-30

20-45

Adjustable pulling length

30-120mm

Blister Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

140*110*12

140*110*15

Air compressor(self-prepared)

0.6-0.8Mpa  ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption)

40-80 L/h

Power supply(Three phase)

380V/220V 50HZ 3KW



380V/220V 50HZ 5.5KW



Wrapper specification (mm)

Alu Alu Foil

150*(0.14-0.18)*(Φ400)

PVC

150*(0.15-0.4)*(Φ400)

Aluminum Foil:150*(0.02-0.15)*(Φ400)

Overall Dimension(L*W*H)

(including foundation)

2400*650*1450

Dimension of Each Part

1350*650*1250(front)

1050*650*1450(back)

Weight

About 800kg



Description

  • Main motor adopts inverter speed controlling system.
  • and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.

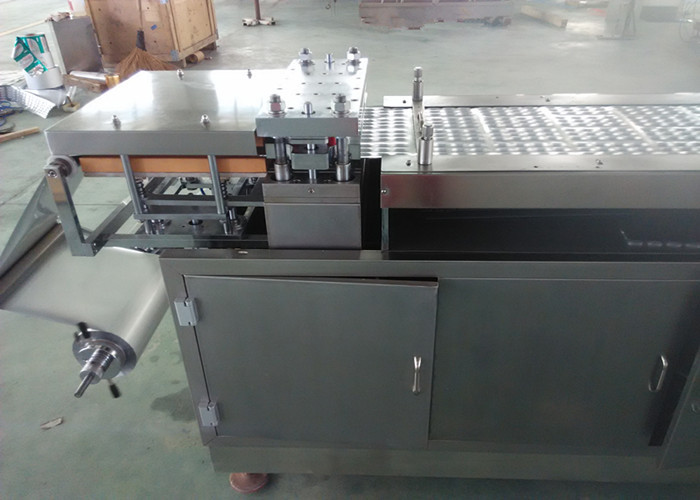

  • Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
  •  and
  • Organic glass cover is optional.

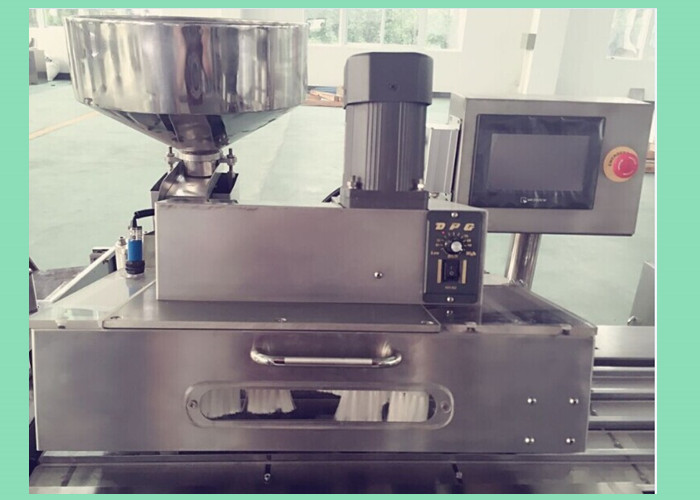

  • It adopts newly designed double hopper feeding system with high precision optical control for
  • automatic

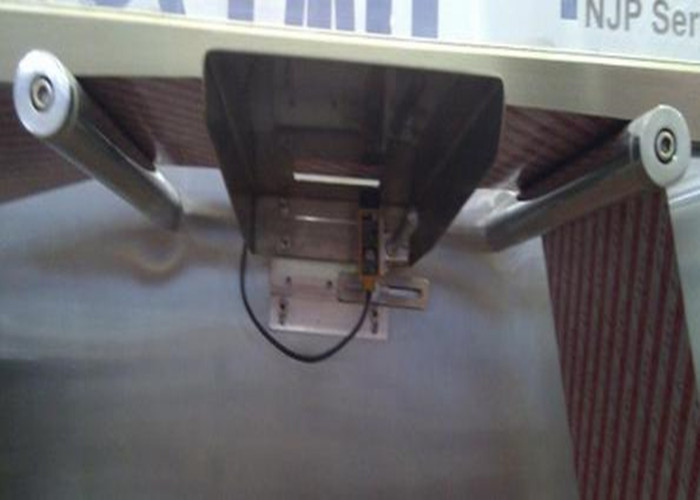

  • The machine will stop automatically once the materials are finished. Also it has installed emergency

Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging 0



OVERALL SKETCH

Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging 1





PACKAGE

  • The machine will not be shaking in transport with wooden fixed.
  • The machine will not be affected with damp in transport with packed with PE plastic bags.
  • Easy shaking station will fixed with hard rope.
  • Long machine will packed separatly.
  • If there are strict requirements, chassis can use iron girders.

Small Alu Alu Blister Packing Machine for Medicine Vacuum Thermoform Packaging 2
