Automatic Alu Alu Blister Packing Machine High SealedBlister Packaging Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-140E

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	10000usd-30000usd/set
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Small Alu Alu Blister Packing Machine	Output:	Max.30 Cutting/min
Max. Forming Area And Depth:	14011012	Pulling:	Step Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection
Used:	Alu-PVC Blister And Alu-Alu Blister
Highlight:	Alu Alu Blister Machine , Capsule Packing Machine

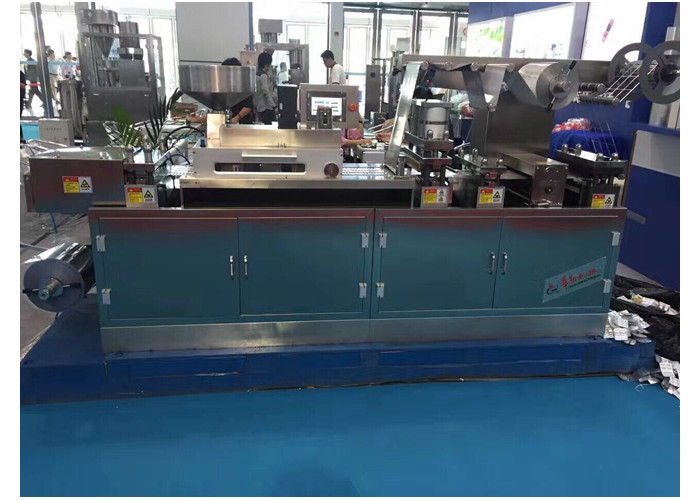

Automatic Alu Alu Blister Packing Machine High Sealed Blister Packaging Equipment

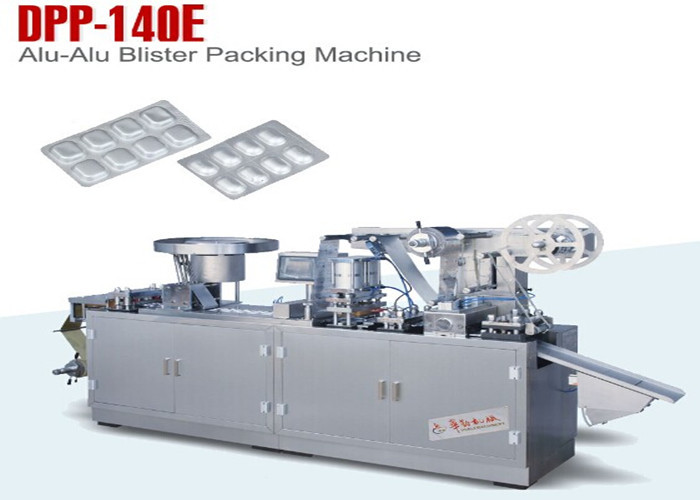

DPP-140E

Machine Body Material: SS 304/316

Adjustable pulling length: 30-120mm

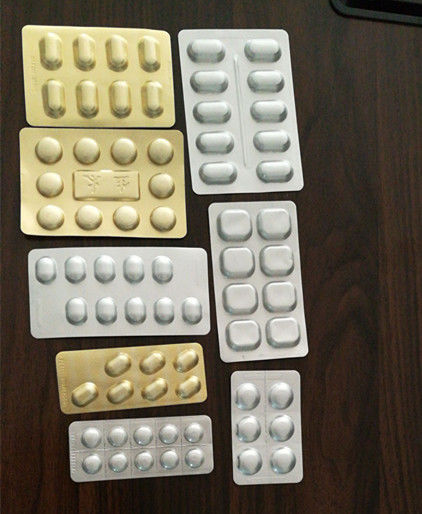

Blister Size: Design According To Customers’ Requirements

Air compressor(self-prepared): 0.6-0.8Mpa ≥0.4m3/min

Overall Dimension(L*W*H): 2400*650*1450

Weight: About 800kg

Description

Main motor adopts inverter speed controlling system.
and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.

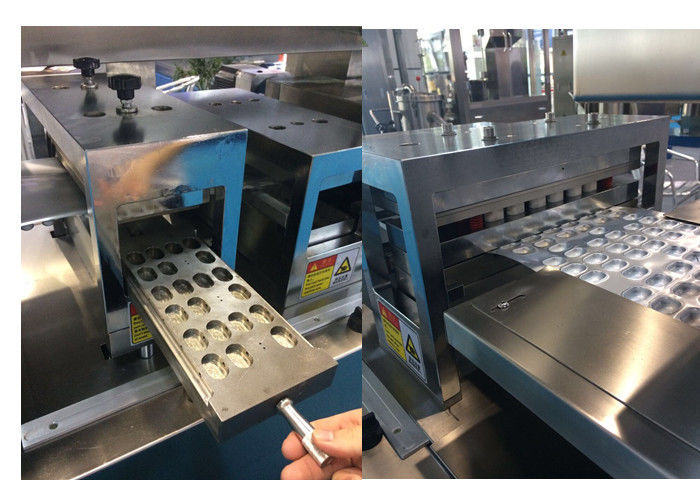

Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
and
Organic glass cover is optional.

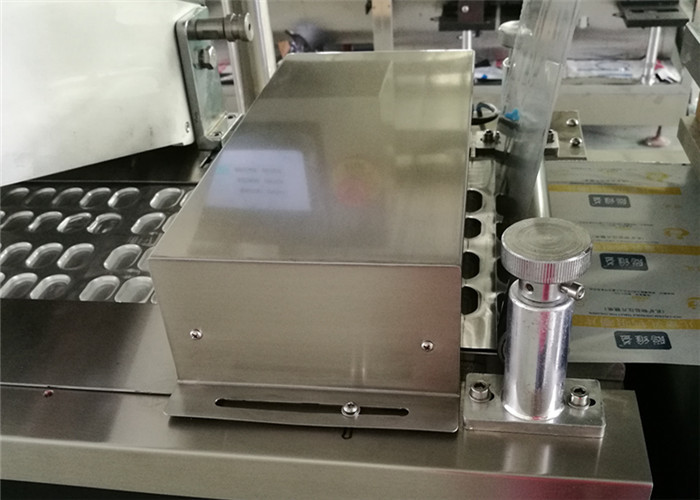

It adopts newly designed double hopper feeding system with high precision optical control for
automatic
The machine will stop automatically once the materials are finished. Also it has installed emergency

Technical Parameters

Double Function		ALU-ALU	ALU-PVC
Cutting Frequency(ideal sizes:80*57mm)		15-30 cutting/min	20-45 cutting/min
Max. Forming Area and Depth		140×110×12mm	140×110×15mm
Adjustable Scope of Travel(mm)		30-120mm	30-120mm
Packaging material(I.D.Φ75)	PVC(mm)		(0.15-0.4)×150×(Φ350)
	PTP(mm)	(0.02-0.15)×150×(Φ250)	(0.02-0.15)×150×(Φ250)
	Alu Alu Foil	(0.14-0.18)×150×(Φ350)
	Paper(mm)		(50-100)g/㎡ ×150×(Φ300)
Power		380V 50Hz 3kw	380V 50Hz 5.5kw
Air compression(self-prepared)		0.6-0.8Mpa≥0.4m³/min	0.6-0.8Mpa≥0.4m³/min
Recycle water or circulating water consumption		40-80L/h	40-80L/h
Overall Dimension(LWH)(including foundation)		2400×650×1450	2400×650×1450
Dimension of Each Part		1350×650×1450(front)	1350×650×1450(front)
Dimension of Each Part		1050×650×1450(back)	1050×650×1450(back)
Weight		About 800kg	About 800kg

OVERALL SKETCH

Automatic Alu Alu Blister Packing Machine High SealedBlister Packaging Equipment 0

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separatly.
If there are strict requirements, chassis can use iron girders.

Automatic Alu Alu Blister Packing Machine High SealedBlister Packaging Equipment 1
