High Packing Standard Small Automatic Aluminum Blister Packaging Machine

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-140E

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Get Best Price Contact Now

Product Name:	Small Alu Alu Blister Packing Machine	Output:	Max.30 Cutting/min
Max. Forming Area And Depth:	14011012	Pulling:	Step Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection

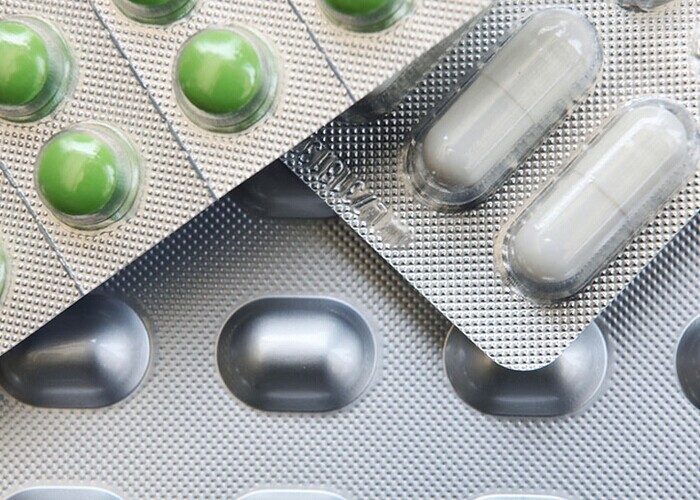

Used:	Alu PVC Blister And Alu-Alu Blister
Highlight:	Alu Alu Blister Machine , Capsule Packing Machine

High Packing Standard Small Automatic Aluminum Blister Packaging Machine

Description

Main motor adopts inverter speed controlling system.
It adopts newly designed double hopper feeding system with high precision optical control for
automatic
and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
(the feeder
Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
and
The machine will stop automatically once the materials are finished. Also it has installed emergency

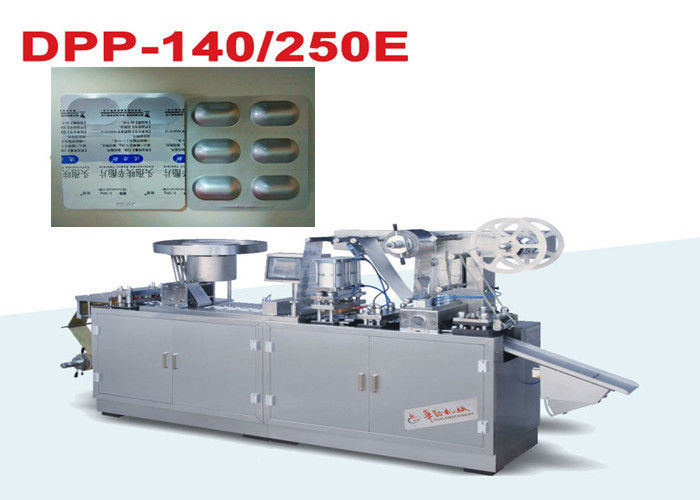

DPP-140E

Model	ALU ALU	ALU-PVC
Machine Body	Stainless Steel 304/316
Blanking frequency(times/min)	15-30	20-45
Adjustable pulling length	30-120mm
Blister Plate Size	Design According To Customers’ Requirements
Max Forming area and depth(mm)	14011012	14011015
Air compressor(self-prepared)	0.6-0.8Mpa ≥0.4m3/min
Mould cooling	(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)	380V/220V 50HZ 3KW	380V/220V 50HZ 5.5KW
Wrapper specification (mm)	Alu Alu Foil 150(0.14-0.18)(Φ400)	PVC 150(0.15-0.4)(Φ400)
	Aluminum Foil:150(0.02-0.15)(Φ400)
Overall Dimension(LWH) (including foundation)	24006501450
Dimension of Each Part	13506501250(front)
	10506501450(back)
Weight	About 800kg

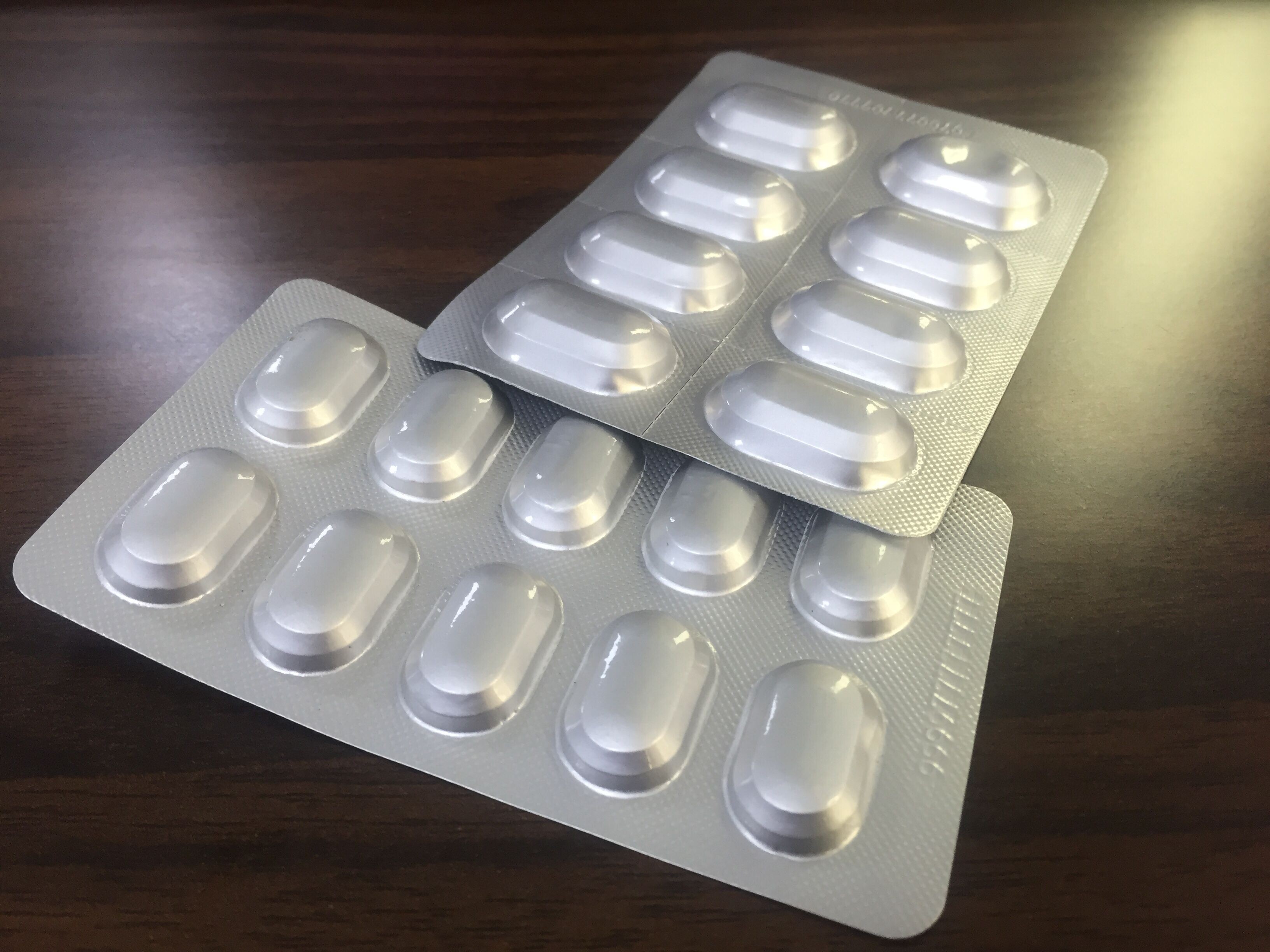

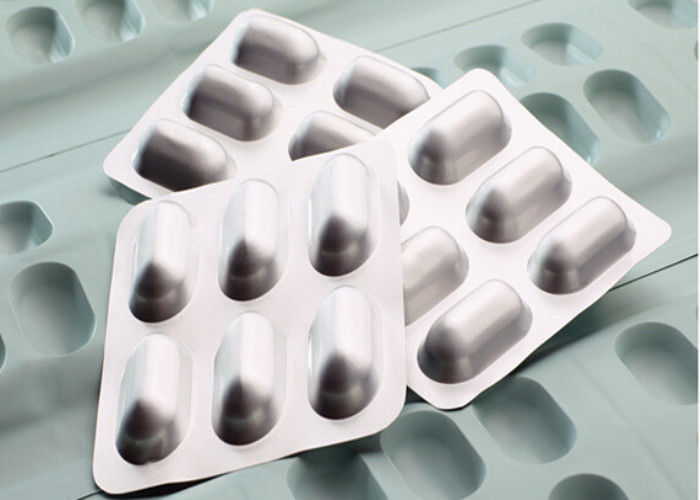

Performance as Aluminum Aluminum blister packing machine

The machine adopt a special cold forming module to make Aluminum foil formed.
The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
Mould and feeder can be designed according to customer ‘s request.
the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

Performance as Aluminum PVC blister packing machine

The machine use heating board to make PVC’s temperature up to 100℃ and use compressed air to make PVC formed.
The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
Mould and feeder can be designed according to customer ‘s request.
The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.
