Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate

Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate

  • Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate
  • Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate
  • Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate
  • Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate
Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate
Product Details:
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DXH-120WB
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 40 working days after received your payment.
Supply Ability: 10 Set per month
Contact Now
Detailed Product Description
Product Name: Blister Cartoning Machine Output: Max.120 Boxes/min
Box Dimension Range: (55-200)mm*(20-80)mm*(14-45)mm Material Consist: Stainless Steel 304
Control: PLC Control Capacity Of Air Compressor: ≥0.5Mpa
Power Supply: 380V/220V 50HZ 0.75KW
Highlight:

Auto Cartoning Machine

,

Automatic Carton Packing Machine





Product name:Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate



Description

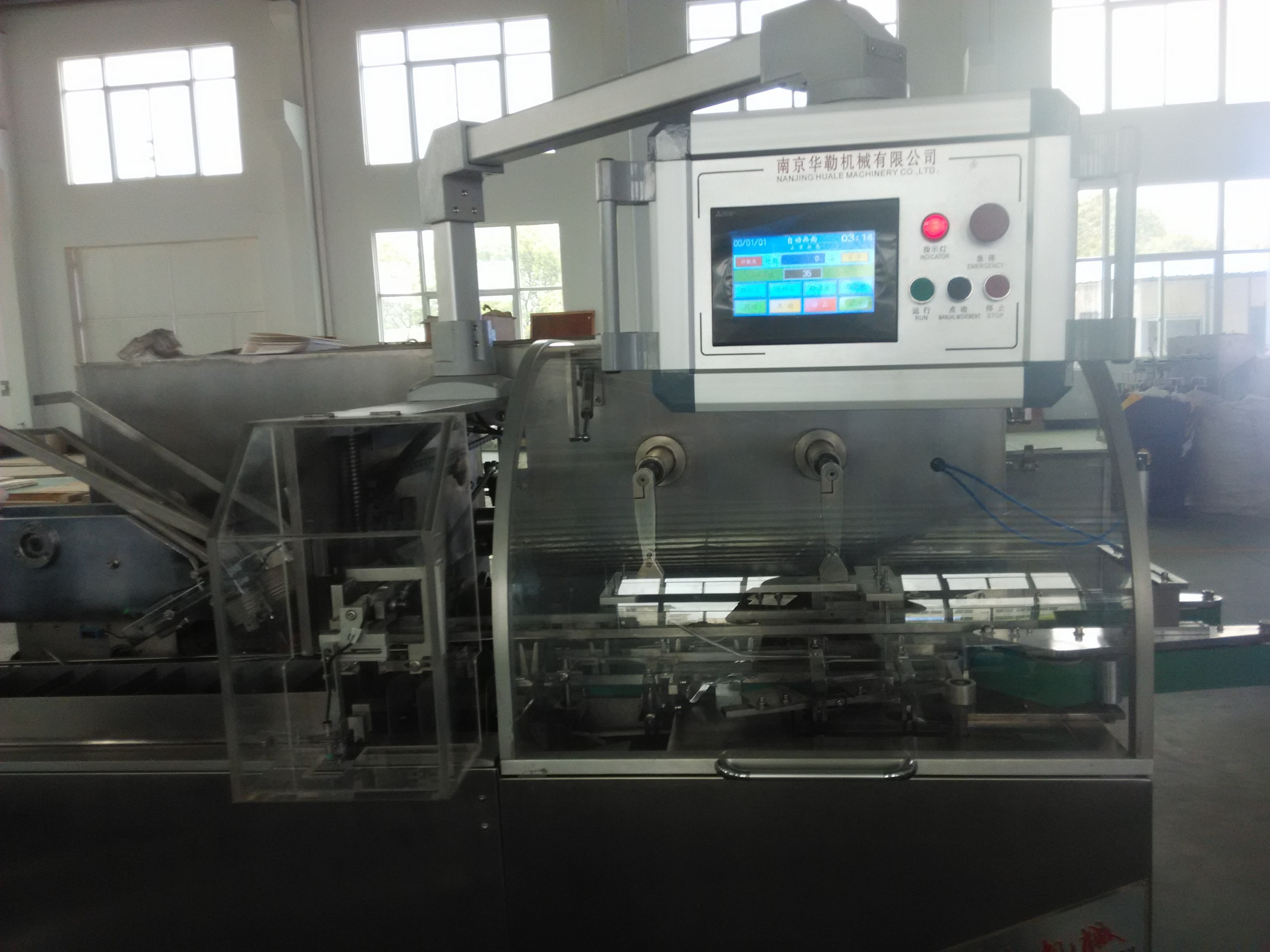

  • It adopts PLC control and touch screen operating system with speed adjusted.
  • Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
  • Main transmission system gets overloading protecting device
  • The machine gets stable performance, easy changing different sizes of products
  • Detection and Rejection of cartons which gets no object fed or leaflet fed.
  • Servo motor pulling is apply to feed different styles of blister plate.

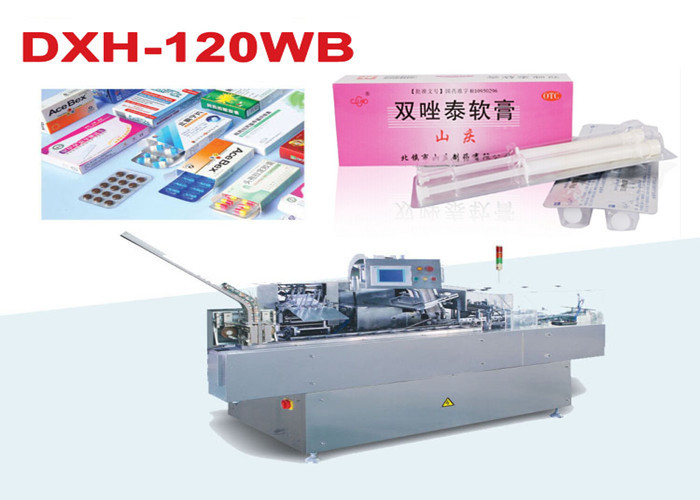

DXH-120WB Specifications



Speed

50-120box/min

Carton

Quality Requirement

250-350g/m2

Dimension Range (L×W×H)

(50-200) ×(20-80)  ×(14-45)mm

leaflet

Quality Requirement

55-65g/m2

Folded Leaflet  Specification

(80-240)X(90-190)mm

Folding Range

1-4 fold

Air Consumption

>0.5Pa 120-160L/min

Motor Power

0.75kw   220V   50HZ

Machine  Dimension (L×W×H)

3100x1100x1600mm

Machine Net  Weight

About 1500kg





Applications



The machine can pack different sizes and specifics of blister plate or similar objects with

automatic leaflet folding, inserting, carton opening, batch number embossing and carton

 sealing (hot glue sealing is an optional for the machine).







Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate 0

Max 120 Boxes / Min Automatic Cartoning Machine For Blister Plate 1
