Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum

Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum
Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum
Basic Information
Place of Origin: China
Brand Name: HUALE MACHINUARY
Certification: CE/ ISO9001
Model Number: DPP-350A
Minimum Order Quantity: 1 set
Price: negoation
Packaging Details: packed in plastic bag and fixed in export wooden box
Delivery Time: 30 working days after received your payment
Supply Ability: 20 Sets per month
Get Best Price Contact Now
Machine Name: Flat Type Aluminum Plastic Blister Packing Machine Packaging Material: Aluminum Foil PVC Or PVC Heating Sealing Paper
Puching Frequnency: 45cutting/min Max Forming Area And Depth: 350*130*15mm Depth 50mm Can Be Customer Made
Blister Plate Size: Design According To Customer's Requirement Machine Weight: About2000kg
Highlight:

PVC Blister Packing Machine

,

Blister Packaging Machinery

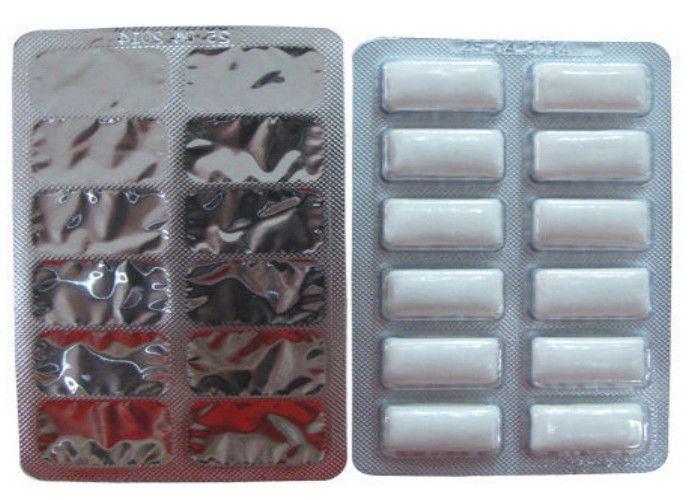

Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum

Introductions:

This machine is suitable for kinds of products packaging and it is easy to operate. The machine is suitable for aluminum foil(PTP), PVC or paper PVC blister packaging.



Performance and characteristics:



  1. The machine is controlled by PLC,which make it has accurately operation and simple construction. The larger forming area and depth is suitable for more items which expand application range of the machine.
  2. The machine use heating board to make PVC’s temperature up tp 100℃ and use compressed air to make PVC formed.
  3. The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.
  4. Speed is shifted by step-less transducer. Blanking frequency is 45 times/min at max.
  5. the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
  6. Mould and feeder can be designed according to customer ‘s request.





TECHNICAL PARAMETER



Item Model

DPP-350A

Cutting Frequency(ideal sizes:80*57mm)

15-45 cutting/min

Max. Forming Area and Depth

350×130×15mm( depth 50mm can be customer made)

Adjustable Scope of Travel(mm)

30-140mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.4)×350×(Φ400)

PTP(mm)

(0.02-0.15)×350×(Φ400)

Paper(mm)

(50-100)g/㎡

×350×(Φ400)

Power

380V  50Hz  9.5kw

Air compression(self-prepared)

0.6-0.8Mpa≥0.6m³/min

Recycle water or circulating water consumption

 60-100L/h

Overall Dimension(L*W*H)(including foundation)

3650×850×1700

Dimension of Each Part

1850×850×1700(front)

1800×850×1650(back)

Weight

About 2000kg

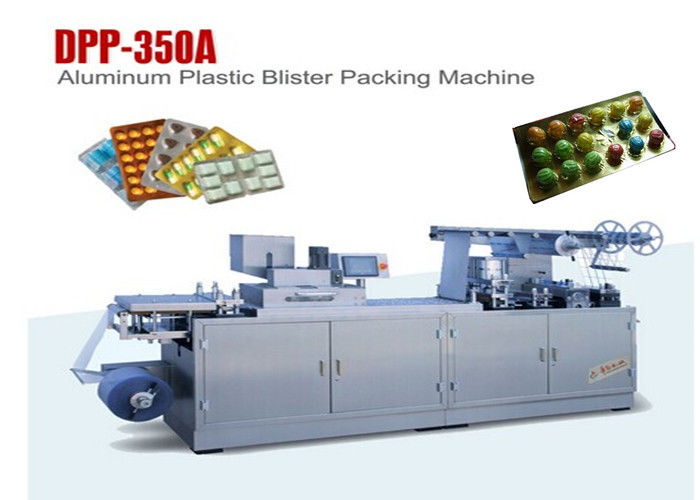

Overall Sketch

Automated Blister Packaging Equipment With Big Sheet And Deep Bubble For Bubble Gum 0

1.PVC feeder  2.Transporting roller    3.Heating box   4.Forming mechanism   5.Medicine feeder

6.touch screen   7.Empty detecting equipment     8.heat sealing mechanism    9.color mark sensor

10 wrapper pulling mechanism   11.trace- pressing mechanism  12.blanking mechanism  13. finished product output





WARRANTY

  1. Technical Support(24 hours on line trademanager, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
