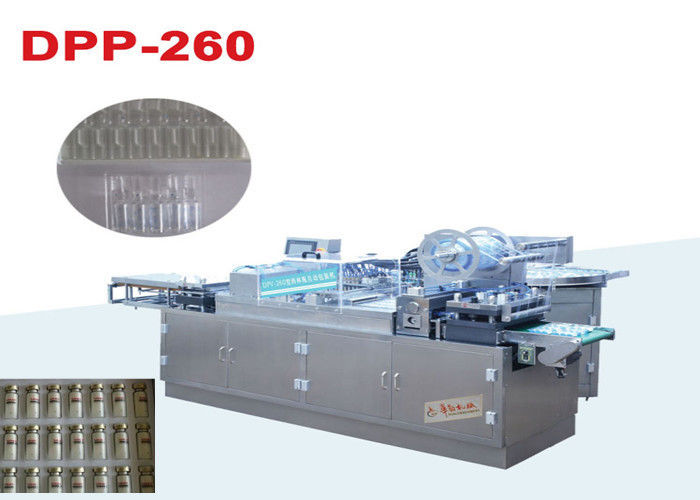

Name: Fully Automatic Medicine Bottle Blister Packaging Machine Line
This machine line is used for small round bottle tray forming, feeding in tray, cartoning packing. The structure is compact and convenient operation. It integrates the photo-electronic, mechanics, electric and phneumatic, controlled by PLC, driven by servo motor, automatically folds leaflet and finish cartoning packing. It adopts sensor monitoring to coordinate the operation of each section. If any error takes place, it can stop automatically and display the report so as to solve them on time. With advanced detection system, the line can detect and recognize the empty or lack packing tray or lack packing carton to achieve 100% finished product. The tray mould can be made according to customer’s requirement.
Main technical parameters
| Speed |
30-100 boxes/min |
| Power |
380V 50Hz 8kw |
| |
220V 50HZ 1.5kw |
| Recycle water or circulating water consumption |
40-80L/h |
compressor(self-prepared)
|
Pressure |
0.6-0.8Mpa≥0.9m³/min |
| Air consumption |
120-160L/min |
| Attention: these are just for your reference, and the final design will be depend on your workshop. |

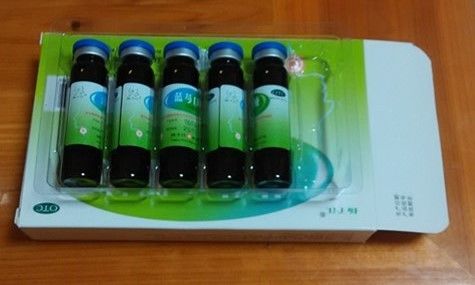

Finished Product

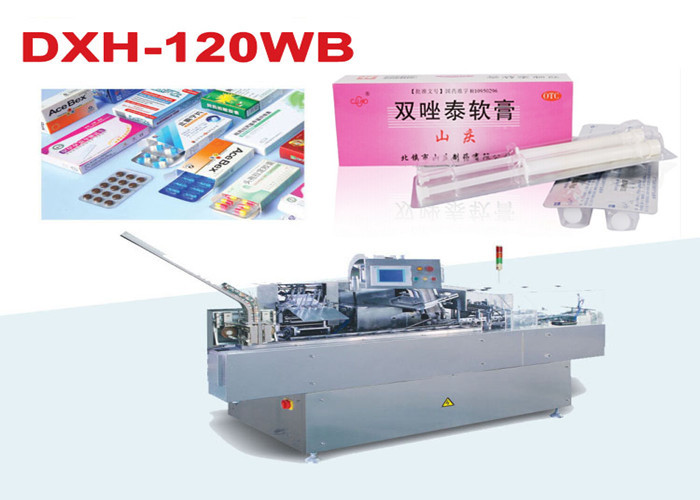

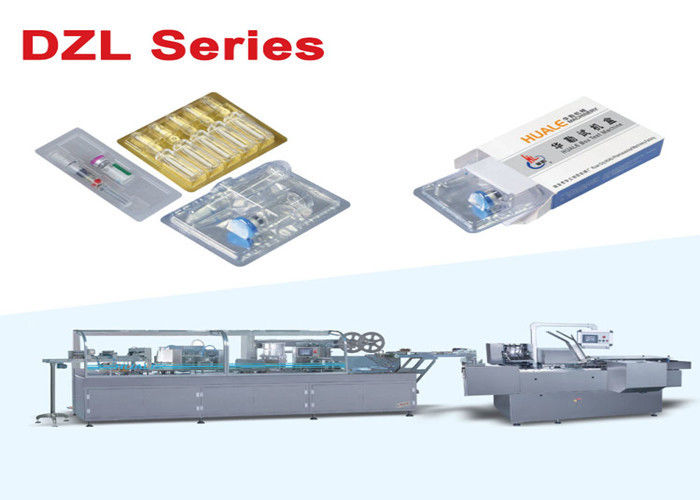

Connect Machines
Package
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separately.
- If there are strict requirements, chassis can use iron girders.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your product,the target capacity you want the machine meet. The more information the better.
