Name: Touch Screen Cosmetic Blister Line Cartoning And 3D Film Over Wrapping
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DZL SERIES
Price: 50.00 USD
Availability: InStock

Home Products Blister Line

Touch Screen Cosmetic Blister Line Cartoning And 3D Film Over Wrapping

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DZL SERIES

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	1-100,000 usd/set
Packaging Details:	Wooden Box.
Delivery Time:	45 working days after received your payment
Supply Ability:	5 Set per month

Contact Now

Detailed Product Description

Name:	Cosmetic Industry Packaging Line	Output:	10-25 Bags/min
Used:	Carton Package	Power:	380/220V 50HZ
Control System:	PLC Control System With Touch Screen	Main Motor Driving:	Servo Motor Driving
Machine Size:	According To Customer's Workshop Design
Highlight:	Blister Forming Machine , Tablet Packaging Machine

Name: Touch Screen Cosmetic Blister Line Cartoning And 3D Film Over Wrapping

This fully automatic outside packing line is consist of carton box packing machine and transparent film over wrapping machine.It have advantages of high efficiency, reduce labor intensity and human labor cost.This production line is famous for high automatic degree, stable working, safe and reliable performance, with auto-reject function etc. It is the ideal packing production line used in the industries of pharmaceutical, food, cosmetic etc.

Performance and characteristic

Reasonable structure, advanced technology

Multi-function digital display frequency conversion step-less speed regulation, PLC programming control technology

Main transmission system gets overloading protecting device.

Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.

Detection and Rejection of cartons which gets no object fed or leaflet fed.

Rotary feeder with speed adjusting motor for feeding different sizes of object.

This production line gets stable performance, easy to change different sizes of products.

Touch Screen Cosmetic Blister Line Cartoning And 3D Film Over Wrapping 0

Main technical parameters

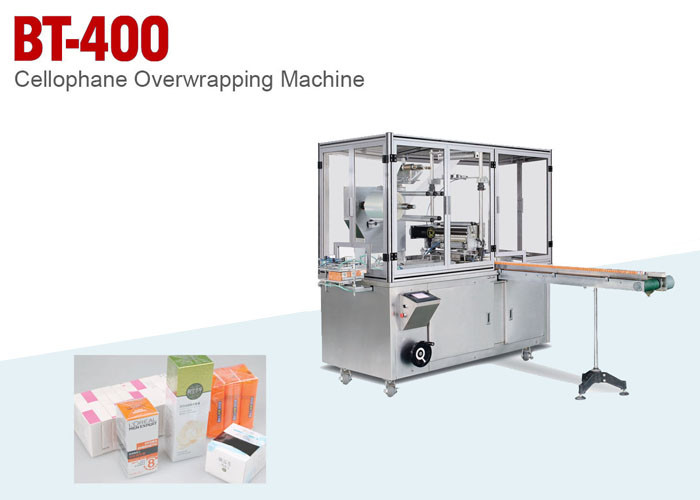

Model	BT-400
Productivity	10-25 bags/min
Packing size	L+H+(5-10)≦400mm
Power supply	220v 50HZ
Motor power	0.75kw
Electric heating power	5kw
Dimensions	22009351960mm
Conveyor belt	1365150910
Weight	1000kg
Application	Single box or boxes( in Spear)

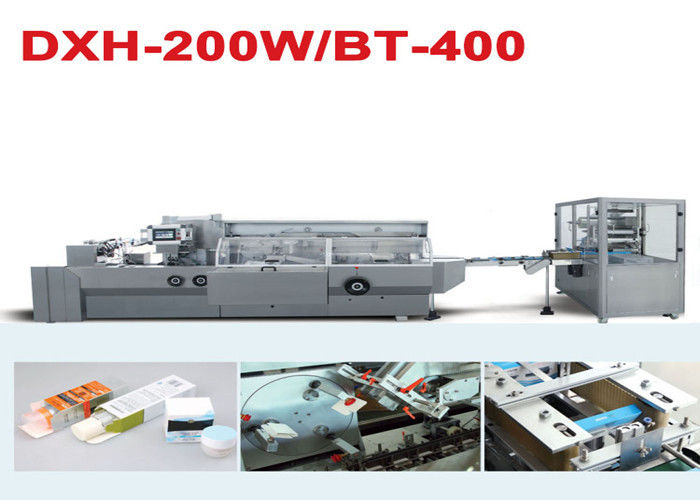

Model	DXH-120W	DXH-200W
Capacity	50-100carton/min	80-200carton/min
Max Carton Size	120×70×30mm	200×120×70mm
Min Carton Size	70×30×10mm	50×20×12mm
Carton Quality	250-300g/m³	250-300g/m³
Max leaflet size(L*W)	260×190mm	260×190mm
Min leaflet size(L*W)	100×100mm	100×100mm
Leaflet Quality	55-659m³	55-659m³
Air consumption	20m³/h press0.5-0.7mpa	20m³/h press0.5-0.7mpa
Power	0.75kw	2.2kw
Voltage	380v 50Hz	380v 50Hz
Dimension(LHW)	950×1050×1500mm	4380×1460×1800mm
Weight	750kg	2500kg

Package

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.

WARRANTY

Technical Support(24 hours on line trademanager, skype, MSN, mobile).
Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
Video for debugging after sent products.
Pre-maintance.
Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
Welcome send us samples to test on our machine and we will take video for you to confirm.
Welcome visit our factory for checking machine and offer training course for your workers.
