Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery

  • Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery
  • Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery
  • Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery
  • Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery
Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery
Product Details:
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DPP-250E
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: WOODEN BOX.
Delivery Time: 35 working days after received your payment.
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: Alu / Alu Blister Packing Machine Control System: PLC Control System With Touch Screen
Automatic Grade: Automatic Motor Driving: Servo Motor Or Step Motor Driving
Certification: CE Total Power: 380V/220V 50HZ 8KW
Feeder: Disco Brush Feeder Or Vibrating Feeder Function: Alu Alu Packaging Or Alu PVC Packaging
Highlight:

Alu Alu Blister Machine

,

Capsule Packing Machine

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery





Use & Feature



This machine is suitable for pack capsules and tablets which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function:aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing modules.







Specifications



Model DPP-250E

ALU ALU

ALU-PVC

Machine Body

Stainless Steel 304/316

Blanking frequency(times/min)

15-30

20-45

Adjustable pulling length

30-120mm

Blister Plate Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

250*120*12

250*110*15

Air compressor(self-prepared)

0.6-0.8Mpa  ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption) 40-80 L/h

Power supply(Three phase)

380V/220V 50HZ 4.5KW



380V/220V 50HZ 8KW



Wrapper specification (mm)

Alu Alu Foil

260*(0.14-0.18)*(Φ400)

PVC

260*(0.15-0.4)*(Φ400)

Aluminum Foil PTP:260*(0.02-0.15)*(Φ400)

Overall Dimension(L*W*H)

(including foundation)

2900*750*1600

Dimension of Each Part

1500*750*1600(front)

1400*750*1450(back)

Weight

About 1200kg

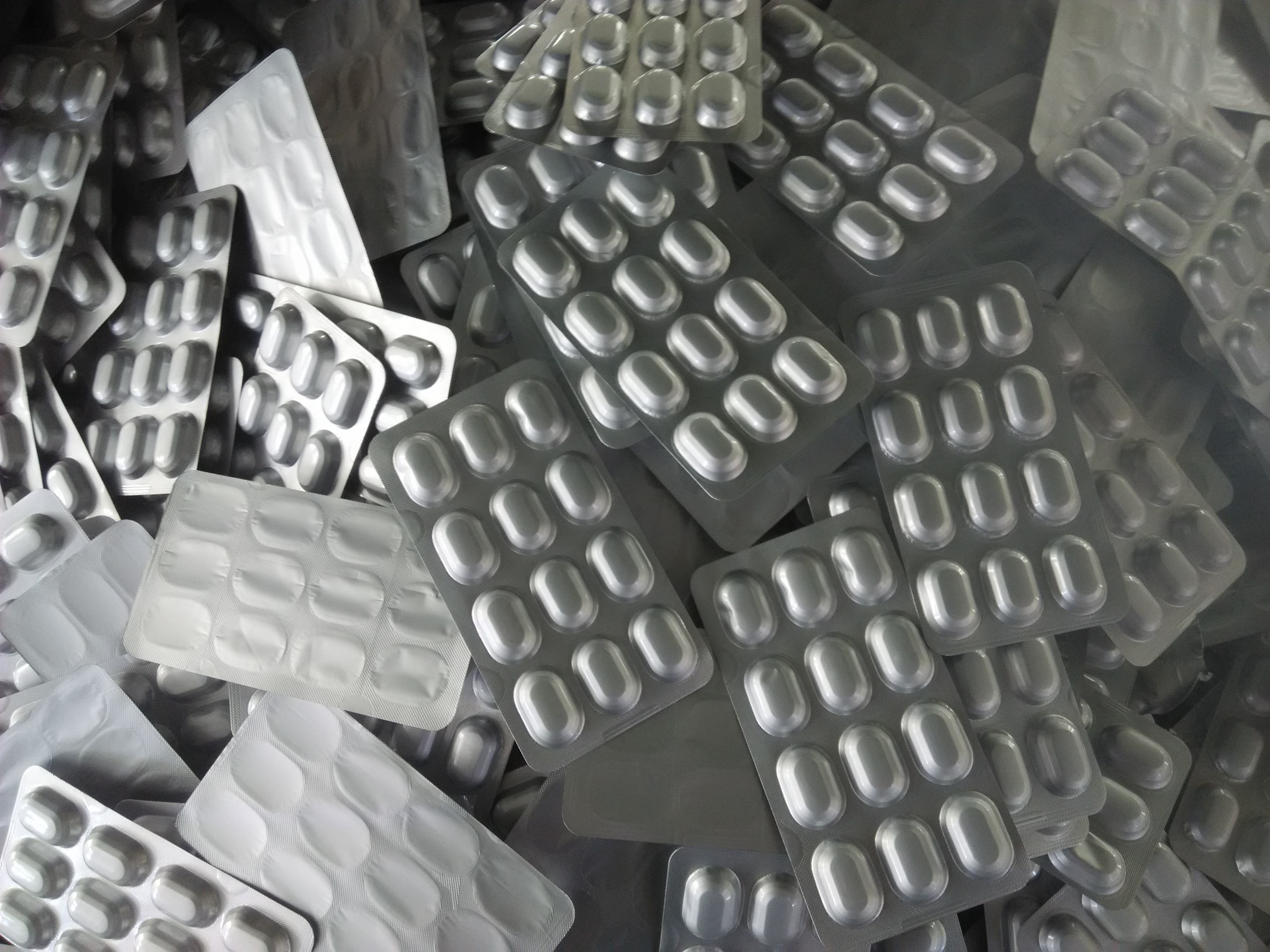

Packaging feauture

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery 0

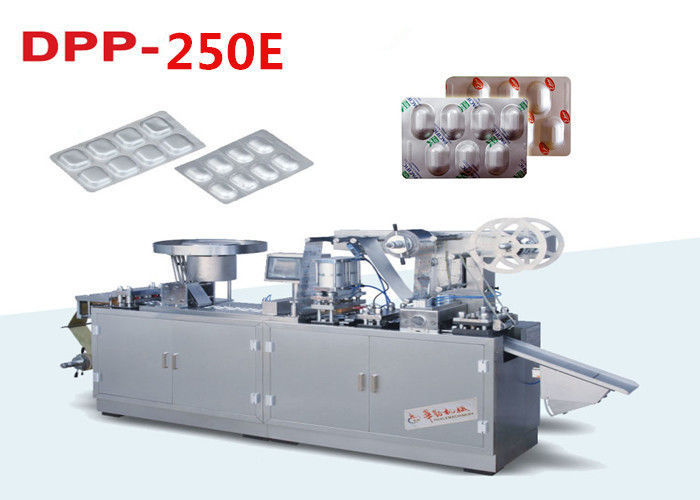

Machine Sketch

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery 1

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery 2

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery 3



After service

Multi Functional Alu Alu Blister Packing Machine DPP - 250E Capsule Blister Packaging Machinery 4



For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem. For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.



Warranty

  1. Technical Support(24 hours on line support by emails, skype, MSN, mobile).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.
