Place of Origin: | CHINA |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | CE ISO9001 |
Model Number: | DXH-120WB |
Minimum Order Quantity: | 1Set |
Price: | Negotiation |
Packaging Details: | WOODEN BOX. |
Delivery Time: | 50 working days after received your payment. |
Supply Ability: | 10 Set per month |
Product Name: | Autoamtic Cartoning Machine | Max Capacity: | 120 Boxes/min |
---|---|---|---|
Material Consist: | Stainless Steel 304 | Control: | PLC Control |
Highlight: | Automatic Carton Packing Machine,Carton Sealer Machine |

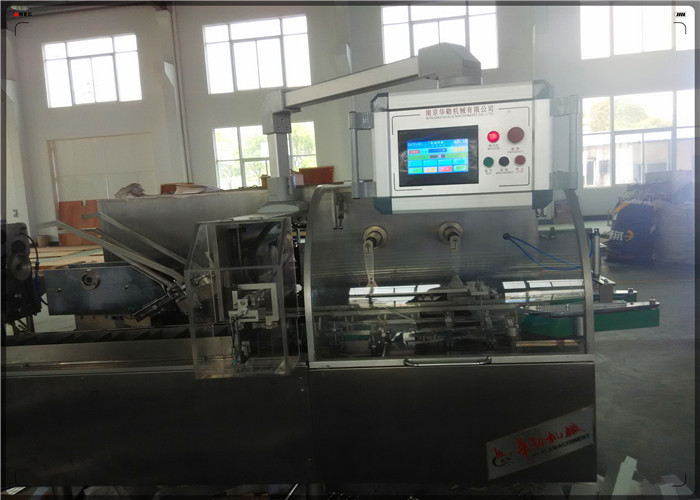

Blister Plates Automatic Cartoning Machine / Small Object Filling And Sealing Equipment
Description
It adopts PLC control and touch screen operating system with speed adjusted.
Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.

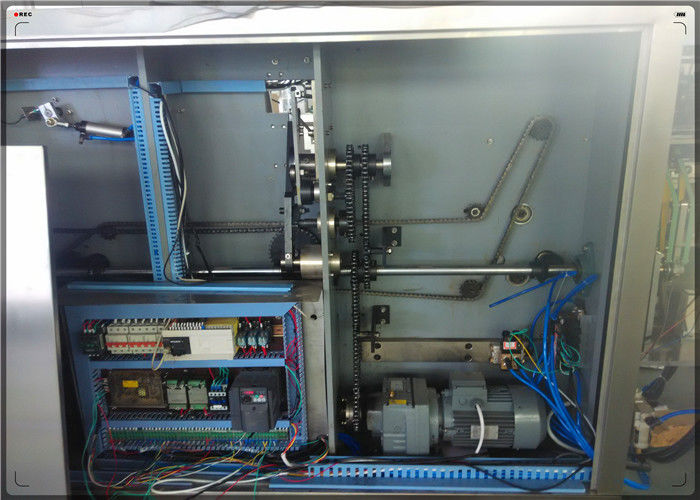

Main transmission system gets overloading protecting device
The machine gets stable performance, easy changing different sizes of products
Detection and Rejection of cartons which gets no object fed or leaflet fed.
Servo motor pulling is apply to feed different styles of blister plate.
Specifications
Speed |
50-120box/min |
|
Carton |
Quality Requirement |
250-350g/m2 |
Dimension Range (L×W×H) |
(50-200) ×(20-80) ×(14-45)mm |
|
leaflet |
Quality Requirement |
55-65g/m2 |
Folded Leaflet Specification |
(80-240)X(90-190)mm |
|
Folding Range |
1-4 fold |
|
Air Consumption |
>0.5Pa 120-160L/min |
|
Motor Power |
0.75kw 220V 50HZ |
|
Machine Dimension (L×W×H) |
3100x1100x1600mm |
|
Machine Net Weight |
About 1500kg |
Applications

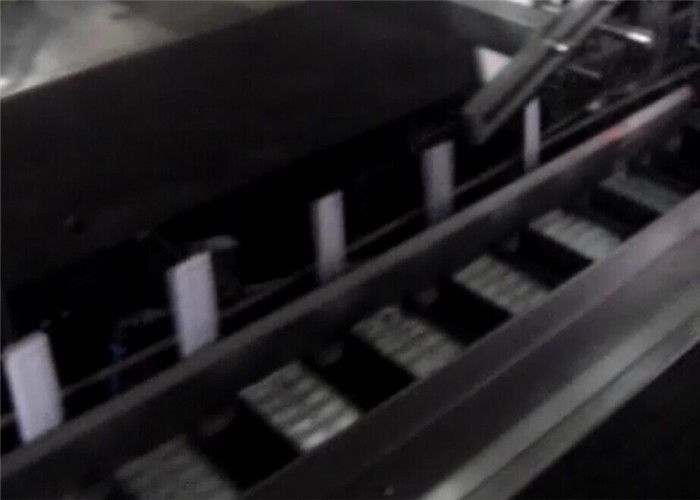

The machine can pack different sizes and specifics of blister plate or similar objects with
automatic leaflet folding, inserting, carton opening, batch number embossing and carton
sealing (hot glue sealing is an optional for the machine).

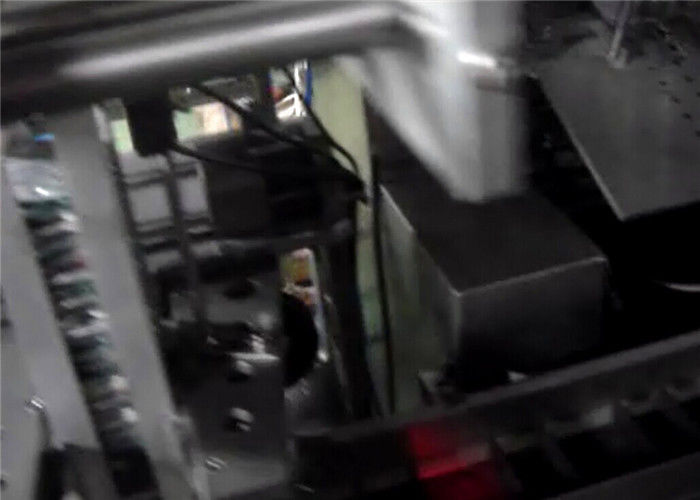

Performance
