Place of Origin: | CHINA |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | CE ISO9001 |
Model Number: | DPP-140A |
Minimum Order Quantity: | 1Set |
Price: | $9000-$11000/set |
Packaging Details: | packed with plastic film then fixed in export wooded box |
Delivery Time: | Within 40 working days upon receipt the machine deposit |
Supply Ability: | 10 Sets per month |

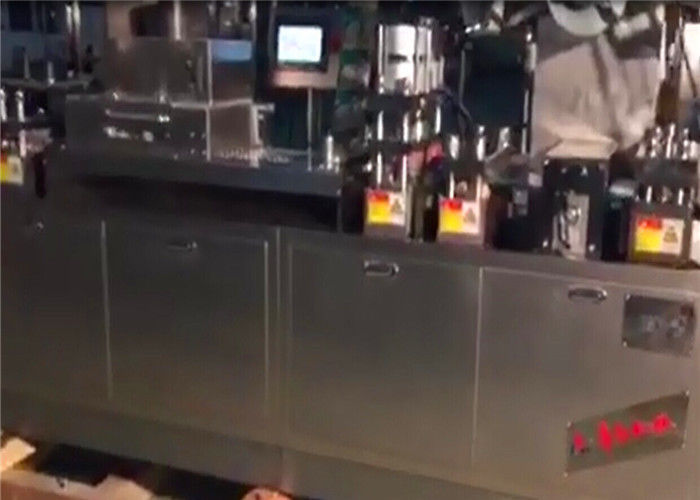

Machine Name: | Aluminum Plastic Blister Packing Machine | Punch Pin: | PTFE(High Temperature Resistant, Non Stick Coating) |
---|---|---|---|
Detection System: | Mechanical Detection Or Visual Inspection | Plate Correspondence: | PRC System |
Highlight: | shrink packing machine,Blister Packaging Machine Pharmaceutical Industry |
The machine Cutting Frequency:45cutting/min. 648000pills/each working shift(10pills/per board:8 hrs/each working shift
High productivity, low energy consumption, saves fund and decreases the packing cost)
Beautiful appearance overall, all are built and covered with stainless steal, fully sealed and conformed to the standards of GMP pharmaceutical production.
The product is reliable in quality, smooth in operation.
The shapes formation can be selected according to different production scales.
Features:
Small size of body, easy operation, long durability and much performance.
Autoamtic cutting line,batch number
Wasted packaging material rewinding
Techincal Parameters:
Item Model |
DPP-350A |
DPP-250A |
DPP-140A |
|
Cutting Frequency (ideal sizes:80*57mm) |
15-45 cutting/min |
15-45 cutting/min |
15-45 cutting/min |
|
Max. Forming Area and Depth |
350×130×15 |
250×120×15 |
140×110×15 |
|
Adjustable Scope of Travel(mm) |
30-140mm |
30-130mm |
30-120mm |
|
Packaging material (I.D.Φ75) |
PVC(mm) |
(0.15-0.6) ×350×(Φ400) |
(0.15-0.4) ×260×(Φ400) |
(0.15-0.4) ×160×(Φ350) |
PTP(mm) |
(0.02-0.15) ×350×(Φ400) |
(0.02-0.15) ×260×(Φ400) |
(0.02-0.15) ×160×(Φ350) |
|
Paper(mm) |
(50-100)gsm ×350×(Φ400) |
(50-100)gsm ×260×(Φ400) |
(50-100)gsm ×160×(Φ350) |
|
Power |
380V 50Hz 9.5kw |
380V 50Hz 8kw |
380V 50Hz 5.5k |
|
Air compression (self-prepared) |
0.6-0.8Mpa ≥0.6m³/min |
0.6-0.8Mpa ≥0.45m³/min |
0.6-0.8Mpa ≥0.4m³/min |
|
Recycle water or circulating water consumption |
60-100L/h |
40-80L/h |
40-80L/h |
|
Overall Dimension(L*W*H)(including foundation) |
3650×850×1700 |
2900×750×1600 |
2400×650×1450 |
|
Dimension of Each Part |
1850×850×1700(front) |
1500×750×1600(front) |
1350×650×1250(front) |
|
1800×850×1650(back) |
1400×750×1450(back) |
1050×650×1450(back) |
||
Weight |
About 2000kg |
About 1200kg |
About 800kg |
