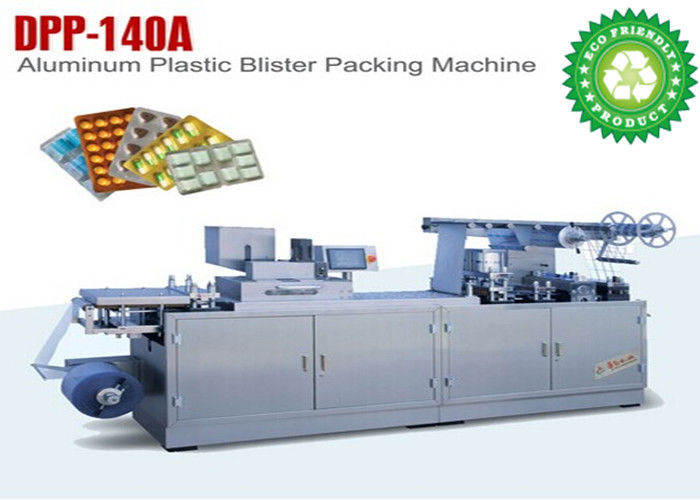

Small Business Automatic Blister Packing Machine the machine feeder can customized

Small Business Automatic Blister Packing Machine the machine feeder can customized
Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized Small Business Automatic Blister Packing Machine the machine feeder can customized
Basic Information
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE
Model Number: DPP-140A
Minimum Order Quantity: 1Set
Price: $9000-$10000/set

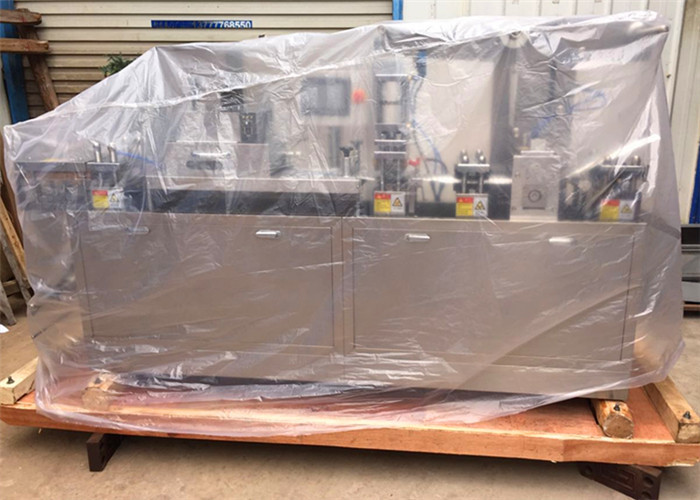

Packaging Details: packed with plastic film then fixed in export wooded box
Delivery Time: within 40 working days after received your payment
Supply Ability: 10 Sets per month
Get Best Price Contact Now
Product Name: Small Blister Packing Machine Pulling: Step Motor Driving
Material Consist: SS304 Control: PLC Control

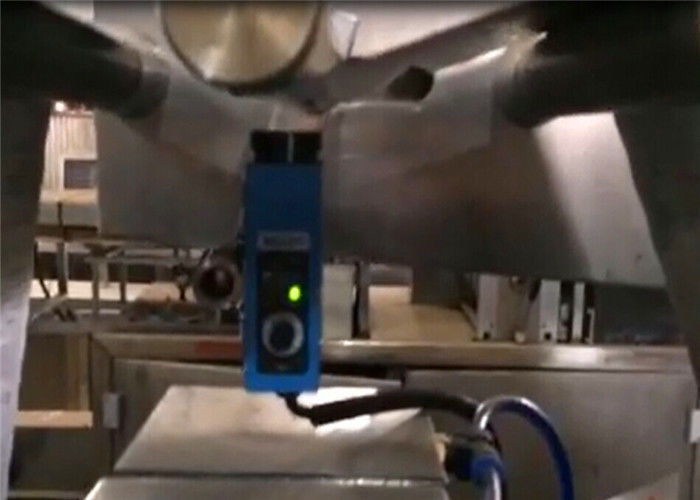

Detection System: Mechanical Detection Or Visual Inspection Plate Correspondence: PRC System
Used: Pill Or Capsule Or Tablet Or Food Etc.
Highlight:

PVC Blister Packing Machine

,

Blister Packaging Machinery



Small Business Automatic Blister Packing Machine the machine feeder can customized



Applications


Blister Machine DPP-140A is good for producing small batches and high quality blister packs in:
Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.





Specifications



Model

140A

Machine Body

Stainless Steel 304

Blanking frequency(times/min)

15-45

Adjustable pulling length

30-120mm

Blister Plate Size

Design According To Customers’ Requirements

Max Forming area and depth(mm)

140*110*15 (20 need Private custom)

Air compressor

(Don't provide)

0.6-0.8Mpa  ≥0.4m3/min

Mould cooling

(Recycle water or circulating water consumption)

40-80 L/h

Power supply

(Three phase)

380V/220V 50HZ 5.5KW

(According to the customer need to

select the voltage)

Wrapper specification(mm)

PVC

160*(0.15-0.6)*(Φ400)

Aluminum foil

160*(0.02-0.035)*(Φ400)

Overall Dimension(L*W*H)(including foundation)

2400*650*1450

Dimension of Each Part

1300*650*1250front)

1050*650*1450(back)

Weight

About 800kg





CHARACTERISTIC

  • Full function PLC & MMI
  • automatic vibration disco brush feeder
  • Separate embossing and trace-pressing stations
  • Recipe program through MMI
  • Full stainless steel 304body
  • Shorter changeover time
  • Forming station: Flat plate type
  • Sealing station: Flat plate type
  • Utmost simplicity in operation & maintenance
  • GMP Compliance





Description

  • Blister pack use varieties of materials, novel shapes, sizes or perforations.
    Fast & easy set-up – no specialist knowledge is required to operate so there is no need for an engineer to be present.
  • Fast changeover - reduces down-time between production batches.
  • HUALE can design your new blister packs. This is especially useful for customers who conduct clinical trials. We can advise them how to rationalise the number of different tools needed, even if the lab needs to package many different products.
  • Compact, portable design.
  • GMP reached

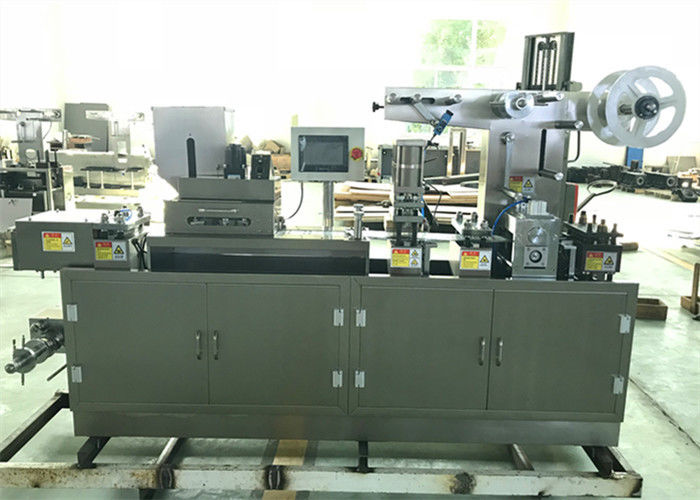

MACHINE DETAIL


Small Business Automatic Blister Packing Machine the machine feeder can customized 0



WARRANTY

  1. Technical Support(24 hours on line email, skype, wechat, whatsapp).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.

Tag:

PVC Blister Packing Machine,

Blister Packaging Machinery,

Blister Packing Equipment
