Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-250F

Minimum Order Quantity:	1Set
Price:	$15000-$30000
Packaging Details:	packed with plastic film then fixed in export wooded box
Delivery Time:	within 1 months after receiving the machine deposit
Supply Ability:	5 Sets per month

Get Best Price Contact Now

Product Name:	Tropical Aluminum Plastic Aluminum Blister Packing Machine	Pulling:	Servo Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection
Used:	Alu-Plastic-Alu Blister And Alu-plastic Blister	Machine Model::	DPP-250F
Certification::	CE And ISO9001
Highlight:	Cam Blister Packing Machine , Blister Sealing Machine

Pharmaceutical AutomaticTropical Blister Packing Machine For Soft Gel Capsule

Quick Features:

Machine Model: DPP-250F

Machine power: 380V 50HZ three phase, the voltage can be adjusted according to customer actual use

Certification: CE and ISO9001

Performance and characteristics:

1. Product detecting and rejecting functions: check out the pills of which the rate of defect is above 15%, half-filled capsules and empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing and displaying the position and situation of the waste plate on the main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point reject and continuous reject.
5. System protective function: the system will alarm if troubles happen.

TECHNICAL PARAMETER

Machine Model		DPP-250F
Double Function		ALU-PLASTIC-ALU	ALU-PLASTIC
Cutting Frequency(ideal sizes:80*57mm)		15-30 cutting/min	20-45 cutting/min
Max. Forming Area and Depth		250×120×15mm	250×120×15mm
Adjustable Scope of Travel(mm)		30-120mm	30-120mm
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.4)×260×(Φ400)	(0.15-0.4)×260×(Φ400)
	PTP(mm)	(0.02-0.15)×260×(Φ250)	(0.02-0.15)×260×(Φ250)
	Alu Alu Foil	(0.10-0.12)×260×(Φ400)
	Paper(mm)		(50-100)g/㎡ ×260×(Φ300)
Power		380V 50Hz 11.5kw	380V 50Hz 8.5kw
Air compression(self-prepared)		0.6-0.8Mpa≥0.5m³/min
Recycle water or circulating water consumption		60-100L/h
Overall Dimension(LWH)(including foundation)		4450×800×1600
Dimension of Each Part		1400×800×1600(front)
		1650×800×1450(middle) 1400×800×1450(back)
Weight		About 1700kg

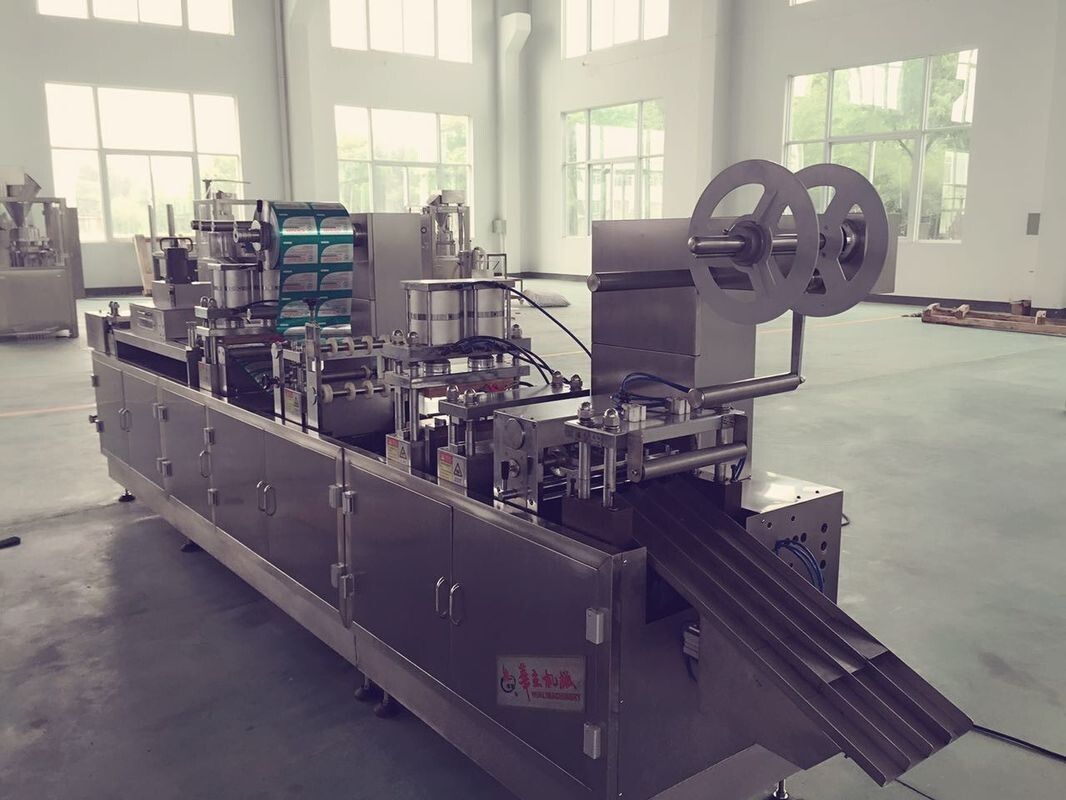

OVERALL SKETCH

1: PVC feeder 2: PVC transporting roller 3: Heating box 4: Forming mechanism(the material of punch head is PTFE)

5: Medicine feeder(The manual feeding without this station)

6: Touch-screen 7: PTP transporting roller

8: Heat-sealing mechanism 9: Trace-pressing mechanism

10: PTP feeding mechanism & scrap-collector 11: Tow mechanism

12: Blanking mechanism 13: Finished product output

Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule 1

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separatly.
If there are strict requirements, chassis can use iron girders.
