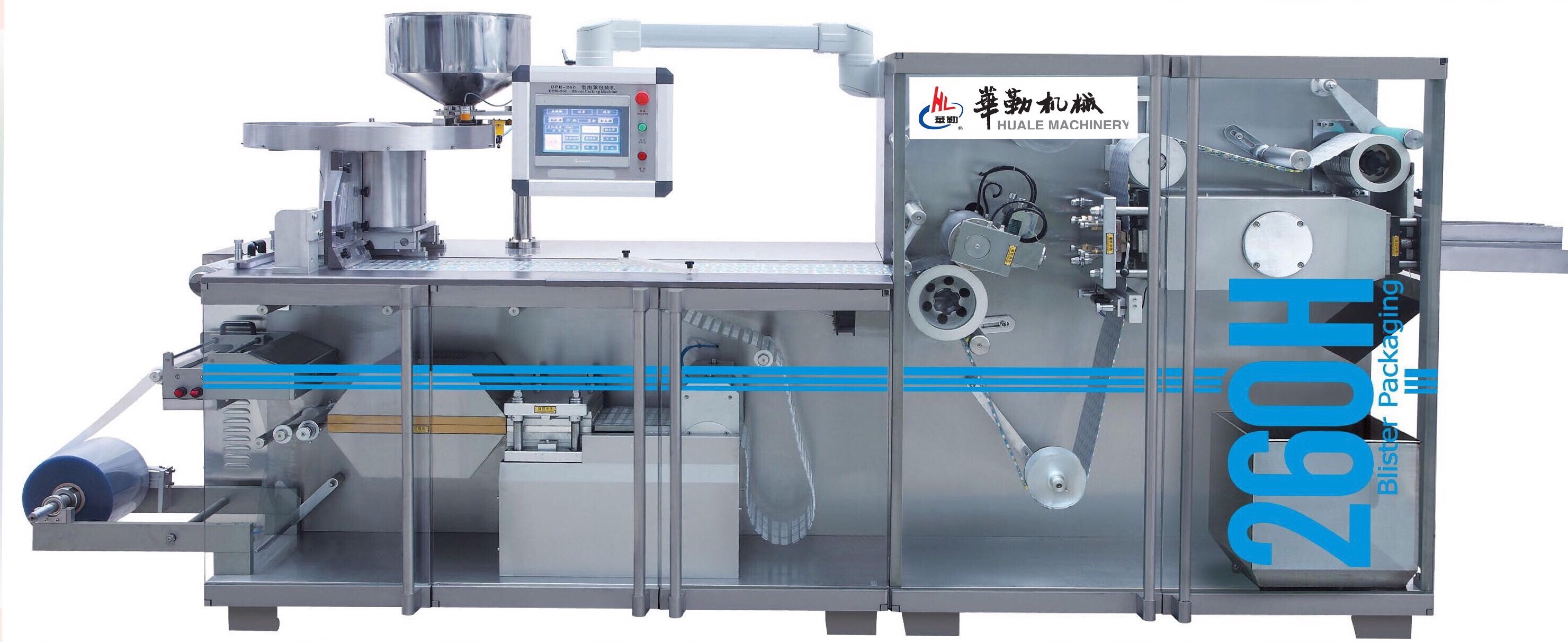

DPH-260 Roller-plate high speed blister packing machine roller sealing

DPH-260 Roller-plate high speed blister packing machine roller sealing

  • DPH-260 Roller-plate high speed blister packing machine roller sealing
  • DPH-260 Roller-plate high speed blister packing machine roller sealing
  • DPH-260 Roller-plate high speed blister packing machine roller sealing
DPH-260 Roller-plate high speed blister packing machine roller sealing
Product Details:
Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPH-260
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Contact Now
Detailed Product Description
Product Name: High Speed Alu PVC Blister Packing Machine Output: Max.200cutting/min
Control: PLC Control



DPH-260 Roller-plate high speed blister packing machine roller sealing




Specifications



Cutting frequency: 40～200 times/minute, 300-500 blister sheets/minute
Max.forming area: 245×250mm
Max.forming depth: 12mm
Travel adjusting: 150～250mm
Size of standard plate: 80×57mm

Width and thickness of

PVC and PTP:

PVC:260×0.15～0.30mm

PTP:260×0.02～0.03mm
Power supply: 380V 50HZ, main motor :1.1KW heating:10.8KW
Air Capacity : ≥0.5m3/min
Cooling water: Tap water or cycling water, 60L/H
Overall size: 6030×1850×1110mm
Weight: 3500kg




DPH-260 Roller-plate high speed blister packing machine roller sealing 0DPH-260 Roller-plate high speed blister packing machine roller sealing 1



DPH-260 Roller-plate high speed blister packing machine roller sealing 2



Tag:

Blister Pack Sealing Machine,

Pharma Blister Packaging Machine,

Blister Packaging Equipment
