Plastic High Speed Blister Packing Machine For Food Blister Packing Industry

Plastic High Speed Blister Packing Machine For Food Blister Packing Industry
Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry Plastic High Speed Blister Packing Machine For Food Blister Packing Industry
Basic Information
Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-260G
Minimum Order Quantity: 1Set
Price: $25000-$30000/set
Packaging Details: packed with plastic film and fixed in export wooden box
Delivery Time: 45 working days after received machine deposit
Payment Terms: T/T or L/C
Supply Ability: 15 Set per year
Get Best Price Contact Now
Product Name: High Speed Blister Packing Machine Max. Forming Area And Depth: 250*200*20mm
Pulling: Servo Motor Driving Detection System: Mechanical Detection Or Visual Inspection
Used: Medicine Or Food
Highlight:

Blister Pack Sealing Machine

,

Pharma Blister Packaging Machine



Plastic High Speed Blister Packing Machine For Food Blister Packing Industry

  1. cutting line
  2. batch number
  3. thermal temperature control and inspection
  4. main machine overload protection
  5. PVC and PTP packing material position inspection
  6. double servo pulling system,
  7. double print register controlling system





Description:

  • The machine used of closed structure, new safety protection design. Adopts top brand PLC controller with touch screen displayed in Double Languages, Frequency inverter for speed control, servo traction which can ensure the length of blister traction adjustable within the range.
  • The machine comes with PVC quick installation and complete set guide way.
  • With thermal temperature control and inspection, main machine over load protection, PVC and PTP packing material position inspection, feeder material position inspection, failure automatic debug and alarm, automatic protection and stop running.
  • The machine adopts newly designed Speed adjustable Double-Hopper System feeder with high precision optical control for high efficiency feeding. It is suitable for different blister sheet style and irregular shape material feeding (Special feeder can be designed according client’s requirement.)
  • All working station of the machine adopts flat type structure with Mould trapezoid style fixing, forward and backward moveable makes much more easier and safer while operation and changing mould.
  • It adopts Contact style preheating, compressed air blow forming, upper and downer mould dot sealing, double servo pulling system, double Print Register Controlling system makes perfect packaging.
  • The cutting edge between blisters are only 1mm, it saves more packaging material and protect our environment.
  • Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
  • The machine has been designed into separated body (three parts) which can be disassembled for easier move into lifts or workshops.

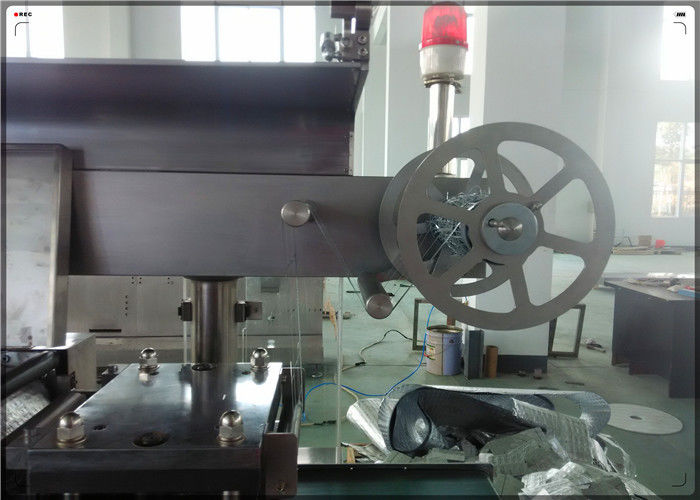

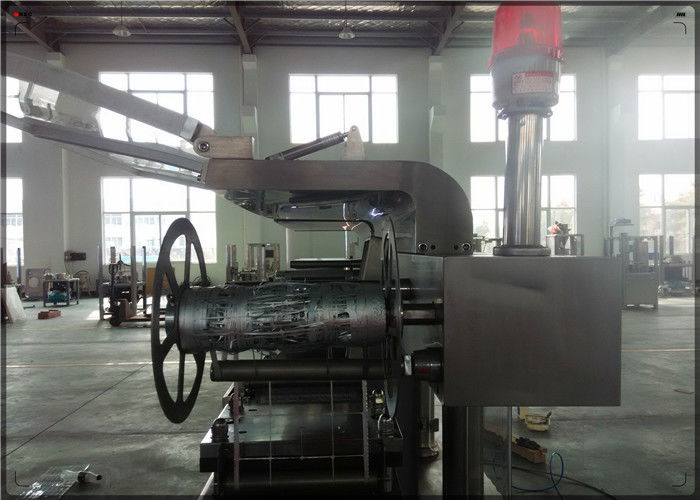

Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 0Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 1



Technical Parameters:



Item Model

DPP-260G

Cutting Frequency(ideal sizes:80*57mm)

20-100 cutting/min

Max. Forming Area and Depth

250×200×20

Adjustable Scope of Travel(mm)

30-220mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.4)×260×(Φ400)

PTP(mm)

(0.02-0.15)×260×(Φ250)

Paper(mm)

(50-100)g/㎡

×260×(Φ300)

Power

380V  50Hz  14kw

Air compression(self-prepared)

0.6-0.8Mpa ≥0.25m³/min

Recycle water or circulating water consumption

 60-100L/h

Overall Dimension(L*W*H)(including foundation)

5600×900×1750

Dimension of Each Part

2300×720×1600(front)

1500×900×1750(middle)

1800×900×1750(back)

Weight

About 2200kg

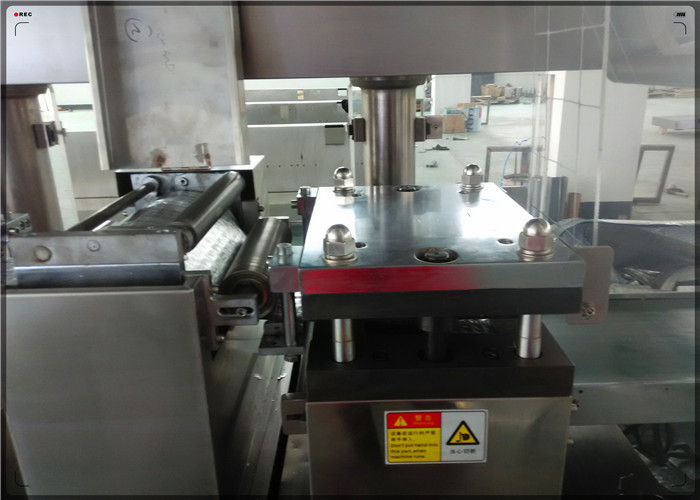

Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 2



Package

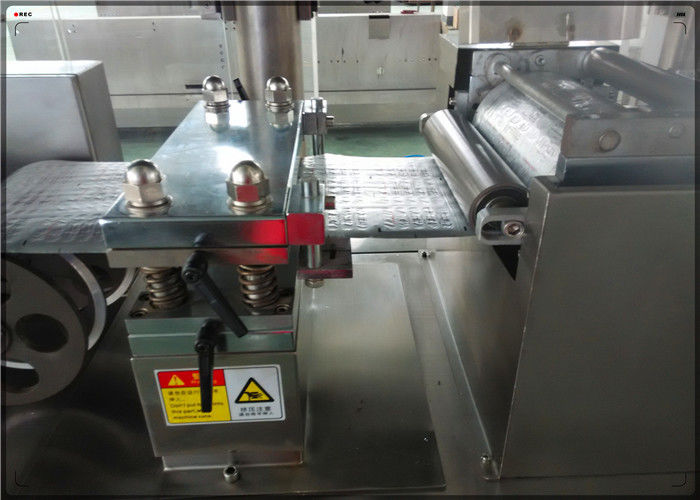

 Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 3

Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 4

Plastic High Speed Blister Packing Machine For Food Blister Packing Industry 5
