Place of Origin: | China |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | ISO9001 |
Model Number: | DPP-320 |
Minimum Order Quantity: | 1Set |
Price: | Negotiation |
Packaging Details: | Wooden Box |
Delivery Time: | 50 working days after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 10 Set per month |
Product Name: | Paper And PVC Blister Packing Machine | Output: | Max.25 Cutting/min |
---|---|---|---|
Max. Forming Area And Depth: | 250*160*40 | Max.Paper-card Size: | 320*220(200-700g) |
Material Consist: | Stainless Steel 304 | Control: | PLC Control |
Air Compressor: | ≥0.25m3/min | Power Supply: | 380V/220V 50HZ 9KW |
Used: | Medicine, Daily Necessities, Etc. | ||
Highlight: | automated packaging Machine,Auto Cartoning Machine |

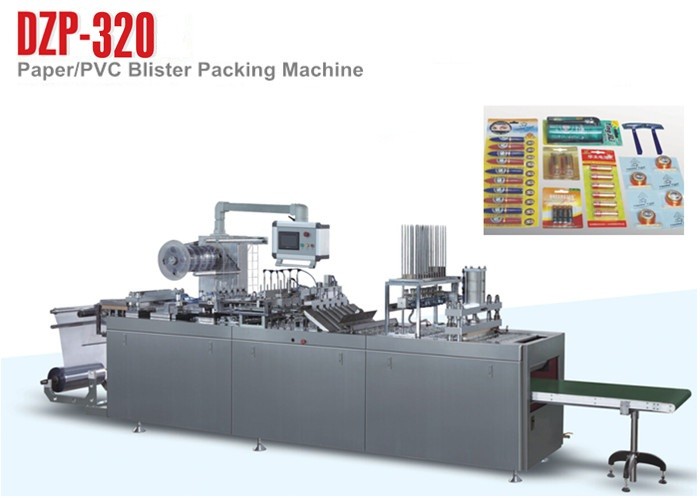

Stainless Steel Automatic High Speed Blister Packing Machine For Daily Necessities
Specifications
Item Model |
DPZ-320 |
Max. Cutting Speed |
25times/min |
Max. Forming Area |
250*160(mm) |
Max. Paper-card Size |
320*200(mm)(200g-700g) |
Adjustable Pulling Length |
40-160(mm) |
Max. Forming Depth |
40(mm) |
Power |
380v 50Hz 9kw |
Air Compression |
≥0.25m3/min |
Overall Dimension(L*W*H) |
4800*600*2000(mm) |
Weight |
1500kg |
Description
Applications
The machine adopts frequency control of motor speed. Collecting machine, electricity, photo, air to integrate. And innovative design, manufacture according to National Standard strictly. Flexible stroke, modularize station structure, easy operate, high output, low noise, and equipped with beautiful out looking. machine is the ideal packing machine. machine main device including PVC heating, blister forming, blister detection(optional), products feeding, products lack detection.(optional), stroke pulling, punching, transporting, heating & sealing, etc.The PVC formed after heating and being soften in the forming mould. The blister fed product via blister detection device then into the punching device to make the single blister with product. After then, the blister delivered to heating and sealing device. At last, the finished products sent out to next procedure. All the devices work synchronously. The blister forming and products deeding equipped with the sensor in case of the bad blister and lack of products in blisters. Waste products rejected out via waste products exit.
