Name: Cosmetic bottle Box Packing Machine With PLC Control System China Manchine Manufacturer
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: ZH-120
Availability: InStock

Home Products Cosmetic Packaging Machine

Cosmetic bottle Box Packing Machine With PLC Control System China Manchine Manufacturer

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	ZH-120

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	50 working days after received your payment.
Supply Ability:	10 Set per month

Contact Now

Detailed Product Description

Product Name:	Blister Cartoning Machine	Output:	Max.120 Boxes/min
Box Dimension Range:	(55-200)mm(20-80)mm(14-45)mm	Material Consist:	Stainless Steel 304
Control:	PLC Control	Capacity Of Air Compressor:	≥0.5Mpa
Power Supply:	380V/220V 50HZ 0.75KW
Highlight:	blister packaging machine , automated packaging Machine

Cosmetic Bottle Box Packing Machine With PLC Control System China Manchine Manufacturer

Specifications

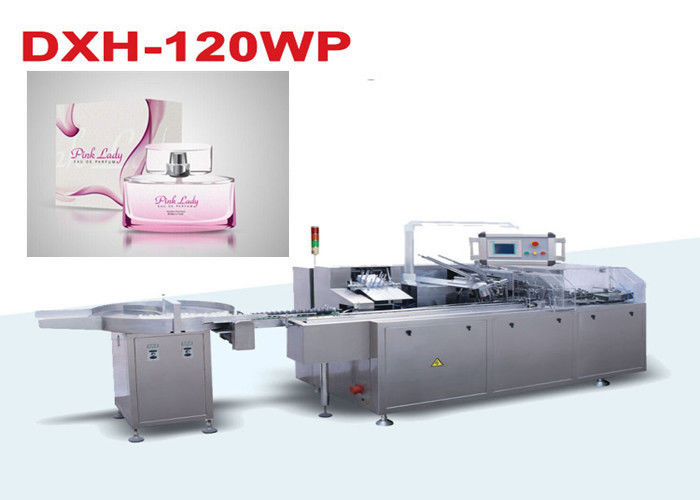

Machine Model		DXH-120WP
Speed		50-120box/min
Carton	Quality Requirement	250-350g/m2
	Dimension Range (L×W×H)	(50-200) ×(20-80) ×(14-45)mm
leaflet	Quality Requirement	55-65g/m2
	Folded Leaflet Specification	(80-240)X(90-190)mm
	Folding Range	1-4 fold
Air Consumption		>0.5Pa 120-160L/min
Motor Power		0.75kw 220V 50HZ
Machine Dimension (L×W×H)		3100x1100x1600mm
Machine Net Weight		About 1500kg

Description

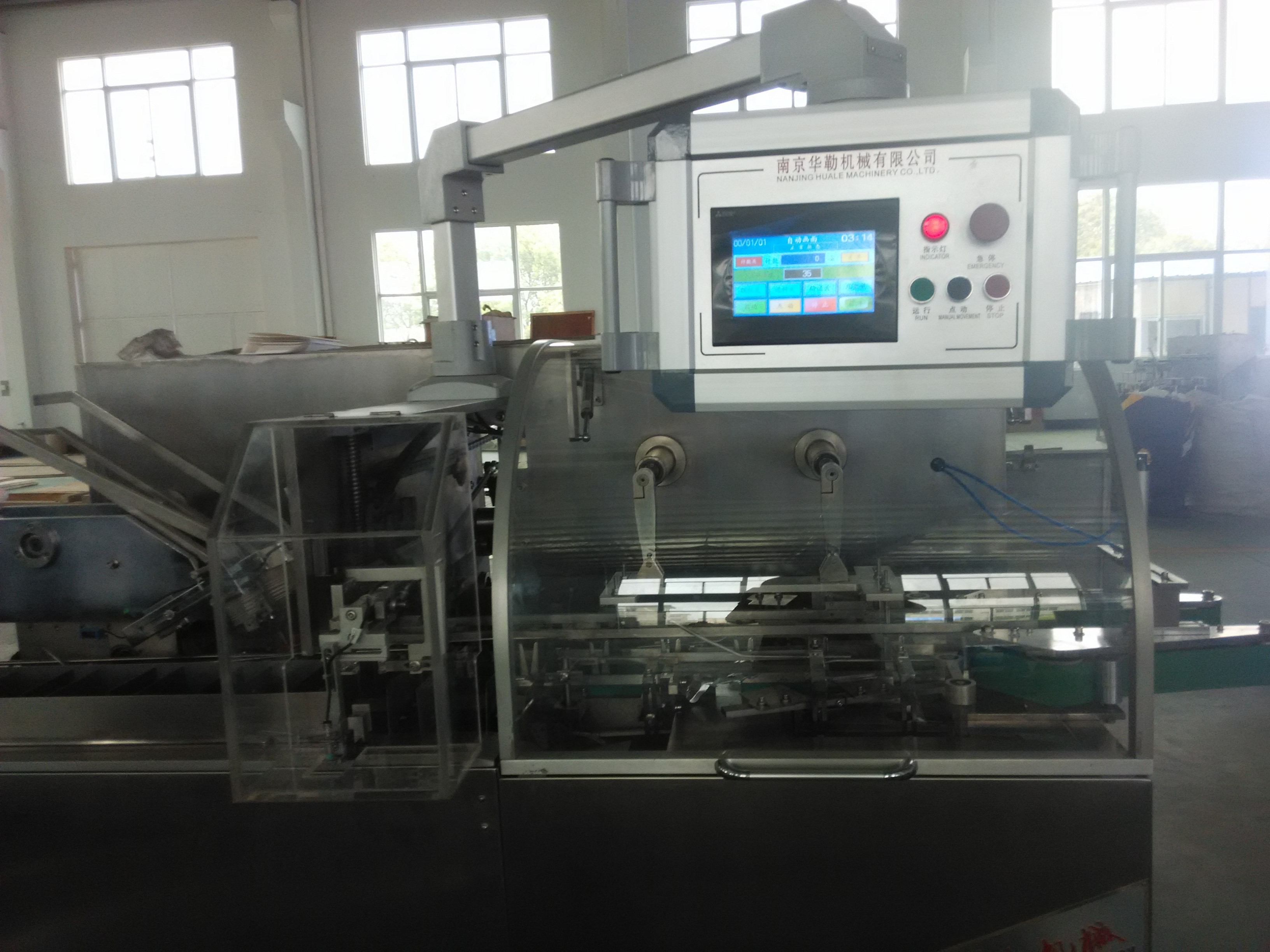

It adopts PLC control and touch screen operating system with speed adjusted.
Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
Main transmission system gets overloading protecting device
The machine gets stable performance, easy changing different sizes of products
Detection and Rejection of cartons which gets no object fed or leaflet fed.
Servo motor pulling is apply to feed different styles of blister plate.

Applications

The machine can pack different sizes and specifics of blister plate or similar objects with

automatic leaflet folding, inserting, carton opening, batch number embossing and carton

sealing (hot glue sealing is an optional for the machine).
