Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added

Product Details:

Place of Origin:	China
Brand Name:	HUALE MACHINERY
Certification:	ISO9001
Model Number:	DDLZ-520

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	40 working days after received your payment
Payment Terms:	T/T or L/C
Supply Ability:	20 Set per month

Contact Now

Detailed Product Description

Product Name:	Automatic Stretch Vacuum Packing Machine	Packing Ways:	Body Fitted Plastic Plastic/ Paper Plastic/ Hard Plastic Package
Application:	Various Foods, Meat, Seafood, Fruits And Vegetables	Vavacuum Degree:	<200pa
Compressed Airlargest Tablet:	>0.6Mpa	Cooling Water:	>0.15Mpa
Power:	380V 50HZ	Net Weight:	2100kg
Highlight:	filling and sealing machine , automatic vacuum packing machine

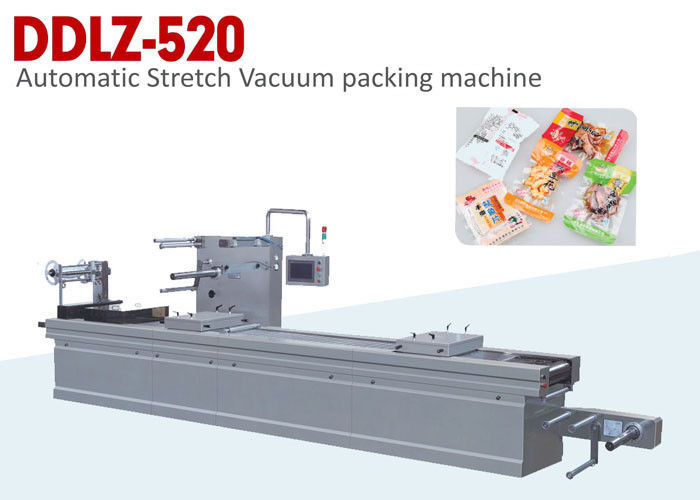

Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added

Applications:

This packing machine is a high precision equipment in our company. It is suitable for all kinds of film thickness and hard film stretch forming.

Performance and characteristic:

The machine come with edge wast recycling system,maintain environmental hygiene.
Adopt advanced cross cutting, slitting system, convenient replacement operation.
Use combination molds which equipped with cooling system, easy to replace so that more than one usage in one machine.
Panasonic servo motor, touch screen, PLC and other control system make the machine easy to operate and adjust.
Photoelectric tracking function, can choose the color cover film or film for packing.Reduce cost and improve product quality.
Nitrogen can be filled on the basis of pumping vacuum also other packaging can do according to customer’s product packaging requirement.

TECHNICAL PARAMETER

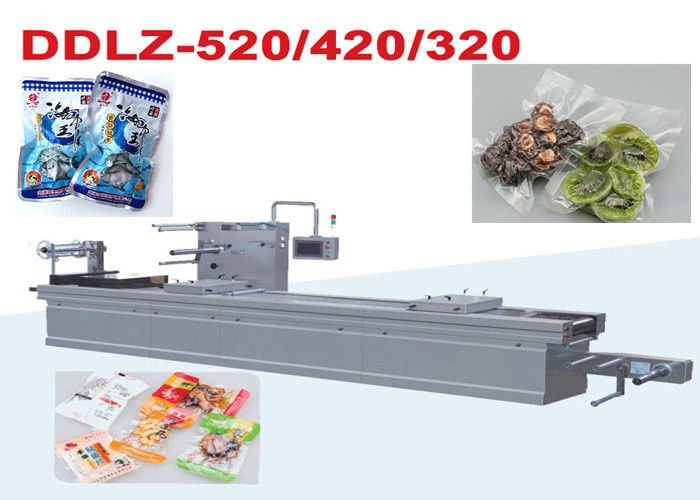

Model	DDLZ-520	DDLZ-420	DDLZ-320
Upper Film Width	492mm	392mm	292mm
Lower Film Width	522mm	422mm	322mm
Vacuum Degree	≦200pa	≦200pa	≦200pa
Compressed air	≧0.6Mpa	≧0.6Mpa	≧0.6Mpa
Cooling water	≧0.15Mpa	≧0.15Mpa	≧0.15Mpa
Power	380V 50HZ	380V 50HZ	380V 50HZ
Weight	2100kg	1700kg	1300kg
Dimension	6200×1400×1900mm	6200×1400×1900mm	6200×1400×1900mm

Automatic Fruits And Vegetables Stretch Vacuum Packing Machine Value Added 0

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.

MANUFACTURING GOOD QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
