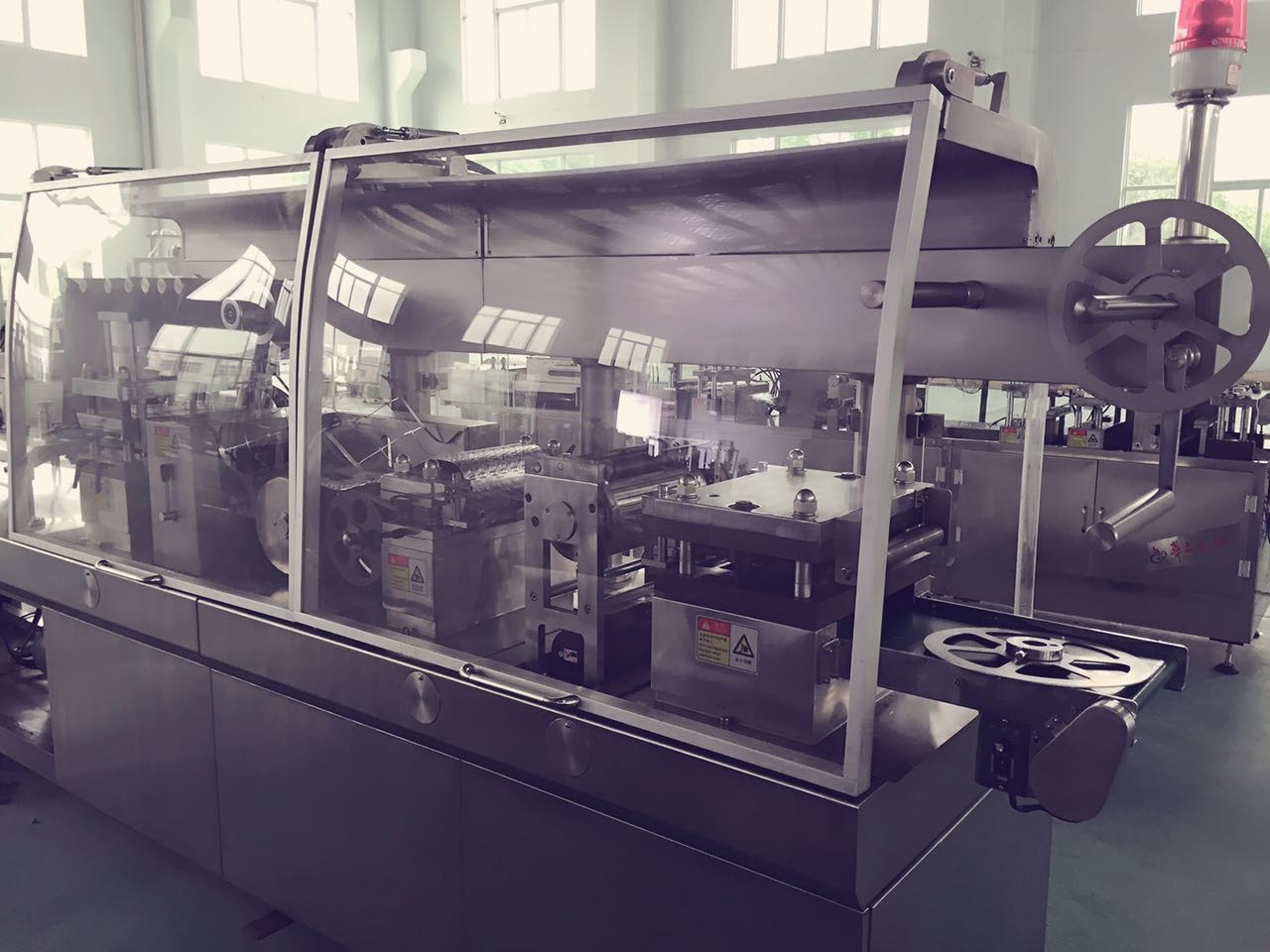

Auto Blister Pack Sealing Machine / Pharmaceutical Packaging Machinery
SPECIFICATIONS
|
Item Model
|
DPP-350A
|
DPP-250A
|
DPP-140A
|
|
Cutting Frequency
(ideal sizes:80*57mm)
|
15-45 cutting/min
|
15-45 cutting/min
|
15-45 cutting/min
|
|
Max. Forming Area and Depth
|
350×130×15
|
250×120×15
|
140×110×15
|
|
Adjustable Scope of Travel(mm)
|
30-140mm
|
30-130mm
|
30-120mm
|
|
Packaging material
(I.D.Φ75)
|
PVC(mm)
|
(0.15-0.6)
×350×(Φ400)
|
(0.15-0.4)
×260×(Φ400)
|
(0.15-0.4)
×160×(Φ350)
|
|
PTP(mm)
|
(0.02-0.15)
×350×(Φ400)
|
(0.02-0.15)
×260×(Φ400)
|
(0.02-0.15)
×160×(Φ350)
|
|
Paper(mm)
|
(50-100)g/㎡
×350×(Φ400)
|
(50-100)g/㎡
×260×(Φ400)
|
(50-100)g/㎡
×160×(Φ350)
|
|
Power
|
380V 50Hz 9.5kw
|
380V 50Hz 8kw
|
380V 50Hz 5.5kw
|
|
Air compression
(Don't Provide)
|
0.6-0.8Mpa
≥0.6m³/min
|
0.6-0.8Mpa
≥0.45m³/min
|
0.6-0.8Mpa
≥0.4m³/min
|
|
Recycle water or
circulating water consumption
|
60-100L/h
|
40-80L/h
|
40-80L/h
|
|
Overall Dimension(L*W*H)(including foundation)
|
3650×850×1700
|
2900×750×1600
|
2400×650×1450
|
|
Weight
|
About 2000kg
|
About 1200kg
|
About 800kg
|
CHARACTERISTIC
1.The overall use the compact cabinet assembling structure, which makes the overall of machine look smooth and compact, easy assembly, handling, installation, maintenance (the sufficient space for maintenance operations).
2.Security, with online detection monitoring system, overload protection, fault alarm and automatically shutdown and multiple safeties interlock control system. There are function buttons such as Start, Stop, Jog, E-stop etc. to control the equipment.
3.Adopt PLC control, stepless frequency control speed,touch screen operation, text display, automatic counting, fault diagnosis tips, easy to operation.
4.The device adopt servo driving to ensure the accuracy of step movements, to achieve the absolute synchronization of every actions.
5.With cylinder sealing,the upper and lower cobwebbing ensure the effect of sealing,this also can prolong the using life of the machine.
6.Output finished products in an orderly manner, detective and waste rejection and collection, which is advantageous for the later packing procedure, and guarantees the quality of product.
7.Products positioning and directional output, which is in favor of the join of latter working process,and equip with waste cutting mechanism, easy for waste collecting.
8.Adjustable travel,adopt manipulator grip to change mould with accurate and synchronization.
9.We can design different mould and feeder according to customer’s requirement.
10.It can work alone,also can be linked to work with pillow-type packing machine and cartoning machine.
PROCESSING

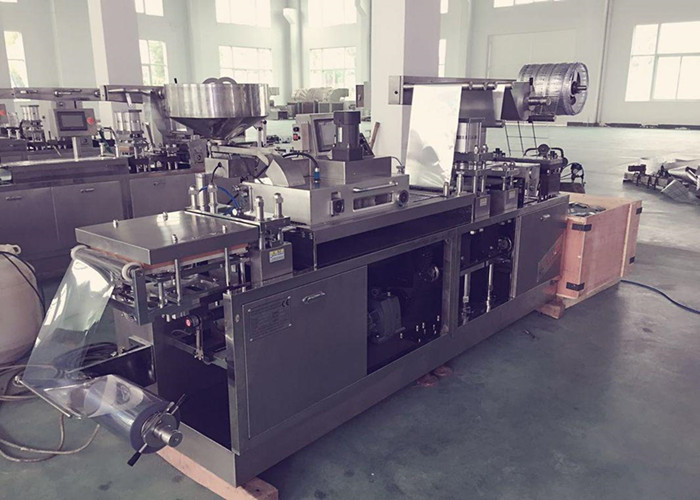

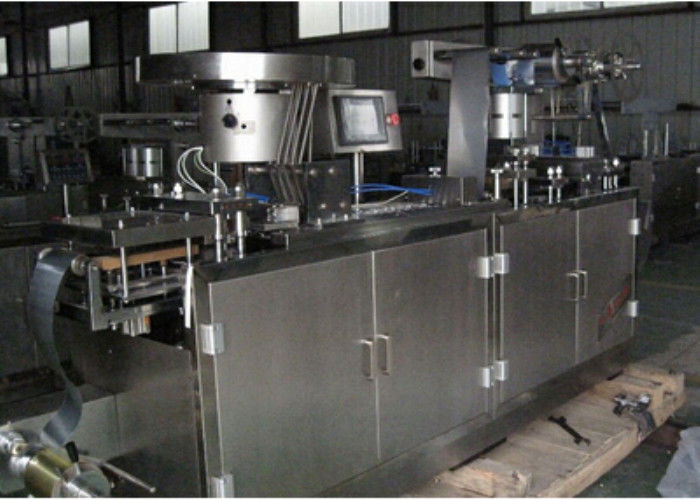

DPP-A Blister Machine can automatically finish feeding packaging materials,forming PVC,feeding products,online detection,sealing,printing batch number,cutting,and rejecting waste products etc.
| 1: PVC feeder |
2: PVC transporting roller |
| 3: Heating box |
4: Forming mechanism |
5: Medicine feeder
(The manual feeding without this station) |
6: Touch-screen |
| |
7: PTP transporting roller |

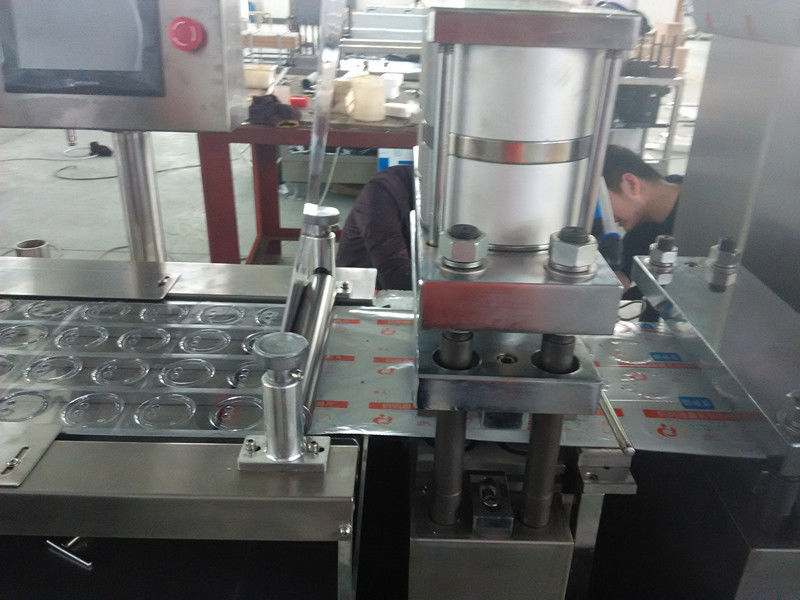

| 8: Heat-sealing mechanism |
9: Trace-pressing mechanism |
| 10: PTP feeding mechanism & scrap-collector |
11: Tow mechanism |
| 12: Blanking mechanism |
13: Finished product output |
