Name: High Speed Automatic Plastic Tray Making Machine for Food Boxes / Plates
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-260
Availability: InStock

Home Products Plastic Tray Making Machine

High Speed Automatic Plastic Tray Making Machine for Food Boxes / Plates

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DPP-260

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	PLASTIC TRAY MAKING MACHINE	Output:	Max.50cutting/min
Max. Forming Area And Depth:	25018030	Pulling:	Step Motor Driving
Material Consist:	SS304/316	Control:	PLC Control
Highlight:	Disposable Plastic Products Making Machine , Nursery Tray Making Machine

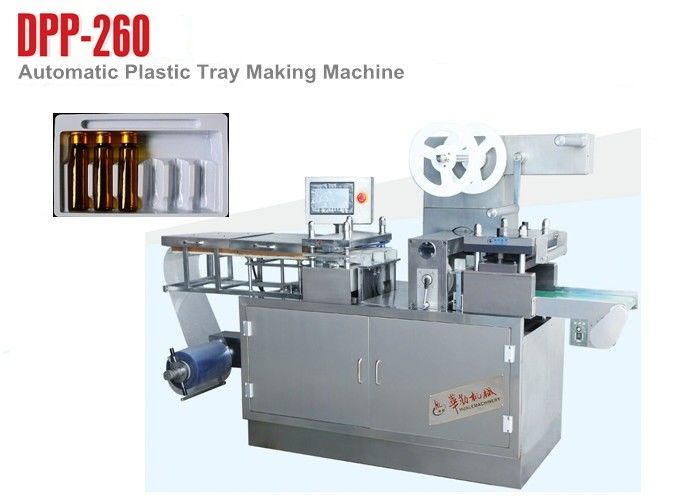

High Speed Automatic Plastic Tray Making Machine for Food Boxes / Plates

Introduction:

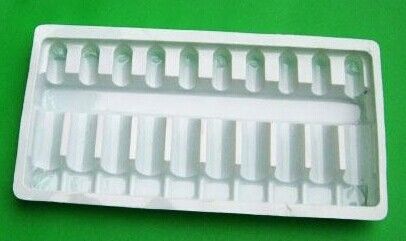

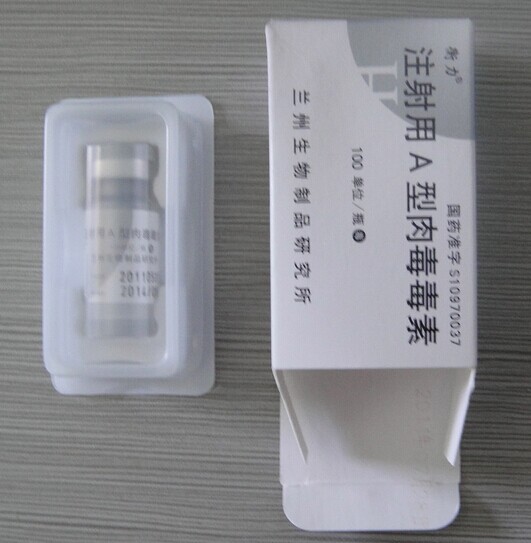

The machine is special for making plastic trays for packaging pharmaceutical industry, medical equipments, food industry, electronic industry and small hardware etc.

Specifications

Item Model		DPP-260
Cutting Frequency		10-50times/min
Max. Forming Area and Depth		250×180×30
Pulling Length		40-200
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.8)×260×(Φ400)
	PTP(mm)	(0.15-0.8)×260×(Φ400)
	PET(mm)	(0.15-0.8)×260×(Φ400)
Power		380V 50Hz 4.5k
Air compression(self-prepared)		0.6-0.8Mpa≥0.5m³/min
Recycle water or circulating water consumption		40-80L/h
Overall Dimension(LWH)		2100×750×1450(including foundation)
Weight		About 600kg

Feature:
The machine adopts compressed air blow forming, air clip pulling and automatic cutting with flat type structure design. The moulds of the machine adopts trapezoid style fixing easier for moving forward or backward makes much more simple on changing moulds.

High Speed Automatic Plastic Tray Making Machine for Food Boxes / Plates 0

WARRANTY

Technical Support(24 hours on line support by emails, skype, MSN, mobile).
Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
Video for debugging after sent products.
Pre-maintance.
Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
Welcome send us samples to test on our machine and we will take video for you to confirm.
Welcome visit our factory for checking machine and offer training course for your workers.

Questions and Answers

Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.

Q: what information should I let you know when I want to get quotation?

A: - the size of your products,the target capacity you want the machine meet. The more information the better.
