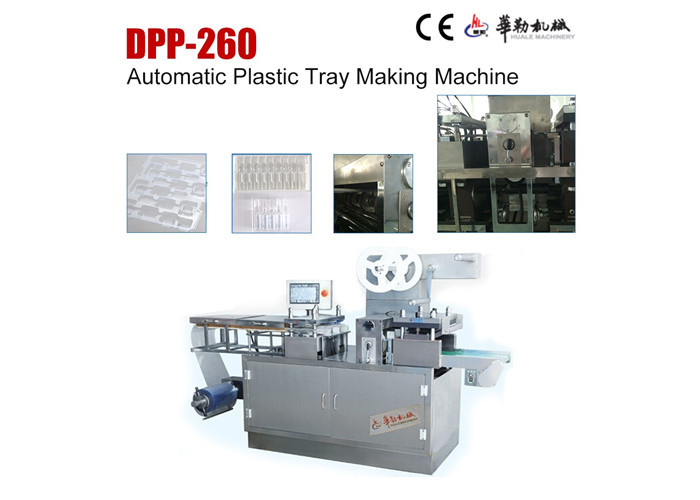

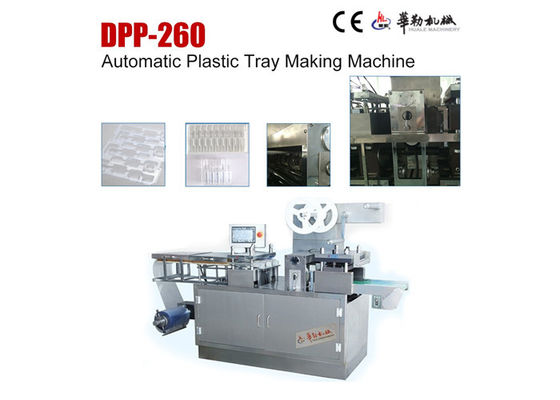

Product Name: Automatic Ampoule Plastic Tray Forming Machine Ce Certificated
Performance and characteristic

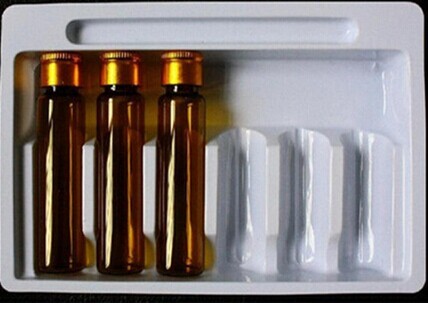

This machine controlled by PLC and man-machine interface operation. It meets packing requirement of small round bottle as ampoule for automatic printing, tray forming, feeding and cutting. It is featured by compact construction and convenient operation.
The length of the tray can be input in touch screen. Molds are located in positioning slot, and it is convenient to change the molds. The blisters are formed by air blowing which is controlled by encoder.
Frequency converter for speed controlling.
Step motor pulling system for saving packaging material and easier adjusting.
TECHNICAL PARAMETER
| Item Model |
DPP-260 |
| Cutting Frequency |
10-30times/min |
| Max. Forming Area and Depth |
250×180×30mm |
| Pulling Length |
40-200mm |
| Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.8)×260×(Φ400) |
| PTP(mm) |
(0.15-0.8)×260×(Φ400) |
| PET(mm) |
(0.15-0.8)×260×(Φ400) |
| Power |
380V 50Hz 4.5k |
| Air compression(self-prepared) |
0.6-0.8Mpa≥0.5m³/min |
| Recycle water or circulating water consumption |
40-80L/h |
| Overall Dimension(L*W*H) |
2750×750×1450mm(including foundation) |
| Dimension for each part |
1450×750×1300 1300×750×1650mm |
| Weight |
About 700kg |

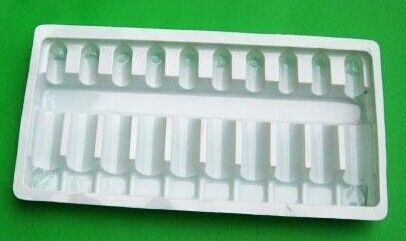

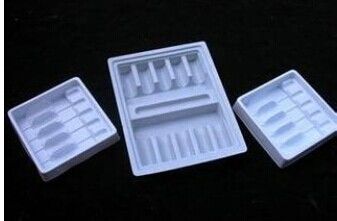

| Notes: blister tray size designed according to customers requirements. |
THIS MACHINE CAN CONNECT WITH CARTONNING MACHINE TO ESTABLISH A PRODUCTION LINE
WARRANTY
- Technical Support(24 hours on line trademanager, skype, MSN, mobile).
- Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
- Video for debugging after sent products.
- Pre-maintance.
- Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
- Welcome send us samples to test on our machine and we will take video for you to confirm.
- Welcome visit our factory for checking machine and offer training course for your workers.
PACKAGE
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separately.
- If there are strict requirements, chassis can use iron girders.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s development.
From beginning of company opening, we are especially focus on quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
Q: what information should I let you know when I want to get quotation?
A: - the size of your product,the target capacity you want the machine meet. The more information the better.
