Name: Aluminum Plastic Automatic Blister Packing Machine DPP-140A
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-140A
Price: 14,500.00 USD
Availability: InStock

Home Products Automatic Blister Packing Machine

Aluminum Plastic Automatic Blister Packing Machine DPP-140A

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DPP-140A

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	$9000-$20000 USD/set
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Blister Packing Machine	Output:	Max.45cutting/min
Max. Forming Area And Depth:	14011015	Pulling:	Servor Motor
Material Consist:	SS304/316	Control:	PLC Control
Highlight:	PVC Blister Packing Machine , Blister Packaging Machinery

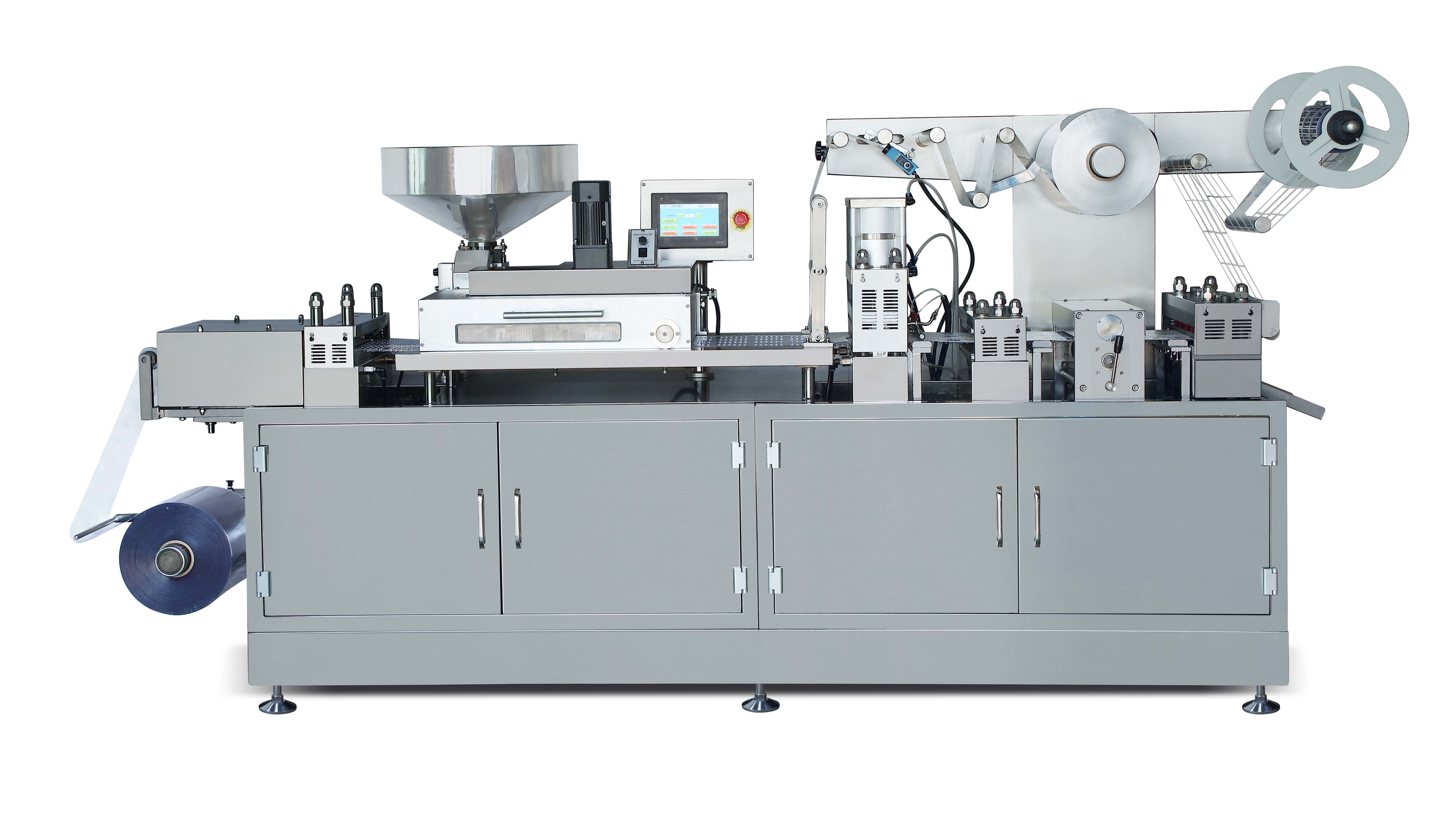

Aluminum Plastic Automatic Blister Packing Machine DPP-140A

DPP-140A Small Flat Type Aluminum Plastic Blister Packing Machine

Blister Machine DPP140A is ideal for producing small batches of high quality blister packs in: Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.
Model		140A
Machine Body		Stainless Steel 304
Blanking frequency(times/min)		15-45
Adjustable pulling length		30-120mm
Blister Size		Design According To Customers’ Requirements
Max Forming area and depth(mm)		14011015 (20 need Private custom)
Air compressor		0.6-0.8Mpa ≥0.4m3/min
Mould cooling (Recycle water or circulating water consumption)		40-80 L/h
Power supply (Three phase)		380V/220V 50HZ 5.5KW (According to the customer need to select the voltage)
Wrapper specification(mm)	PVC	160(0.15-0.6)(Φ400)
	Aluminum foil	160(0.02-0.035)(Φ400)
Overall Dimension(LWH)(including foundation)		24006501450
Dimension of Each Part		13006501250front)
		10506501450(back)
Weight		About 800kg
