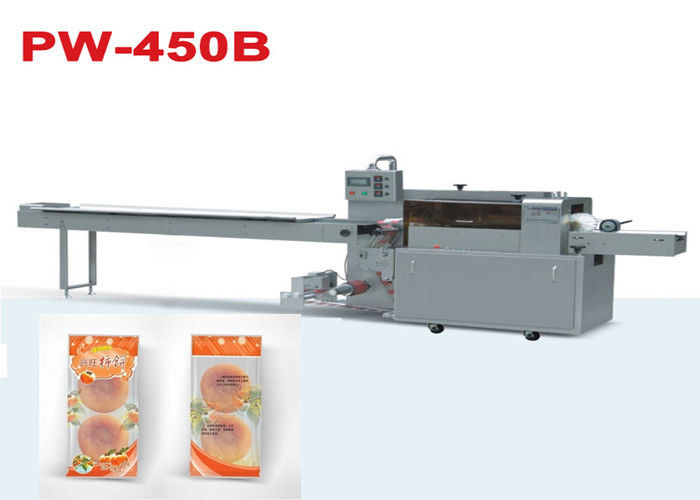

Name: Double Frequency Controlled Pillow Type Automatic Packing Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: PW-450B
Availability: InStock

Home Products Food Packaging Machine

Double Frequency Controlled Pillow Type Automatic Packing Machine

Product Details:

Place of Origin:	China
Brand Name:	HUALE MACHINERY
Certification:	ISO9001
Model Number:	PW-450B

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	40 working days after received your payment
Payment Terms:	T/T or L/C
Supply Ability:	20 Set per month

Contact Now

Detailed Product Description

Product Name:	High Speed Aotumatic Bag Packing Machine	Packing Material:	PVC, PE
Bag Size:	(70-350)(30-130)(10-50)mm	Bag Packing Speed:	30-160 Bags/min
Packing Film Width:	80-450mm	Power:	220V 50/60HZ
Application:	Food, Daily Necessities	Net Weight:	800kg
Highlight:	filling and sealing machine , automatic vacuum packing machine

Name: Double Frequency Controlled Pillow Type Automatic Packing Machine

Performance and characteristics:

1. Double transducer control, flexible bag length cutting.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.

Technical Parameters:

Bag Size	Length	70-350mm
	Width	30-130mm
	Height	10-50mm
Vertical &Transverse sealing strength		>15N/m㎡
Speed		30-160 bags/min
Packing Film Width		80-450mm
Power		220V 50/60HZ 3kv
Weight		800kg
Dimensions		44008301700mm

Double Frequency Controlled Pillow Type Automatic Packing Machine 0

Double Frequency Controlled Pillow Type Automatic Packing Machine 1

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.

This machine also can be connected with carton box packing machine to form a production Line.

Double Frequency Controlled Pillow Type Automatic Packing Machine 2

MANUFACTURING GOOD QUALITY MACHINE & PROVIDING EXCELLENT AFTER SERVICE!
