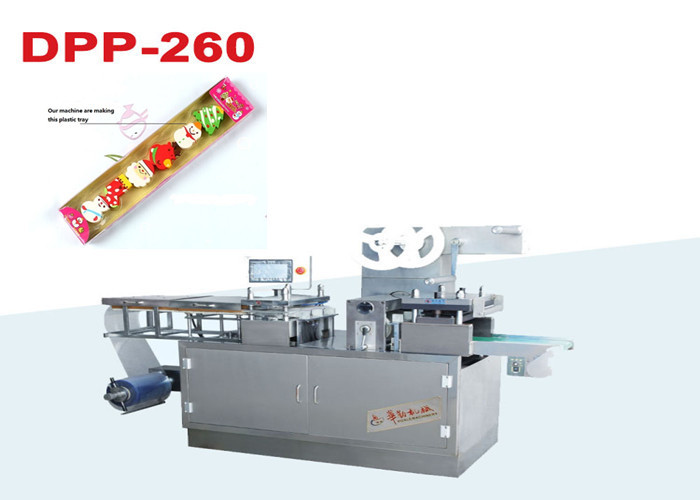

Name: Automatic PVC Disposable Plates Tray Making Machine For Medicine small electrionic
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-260
Availability: InStock

Home Products Plastic Tray Making Machine

Automatic PVC Disposable Plates Tray Making Machine For Medicine small electrionic

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE/ISO9001
Model Number:	DPP-260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	20 Set per month

Contact Now

Detailed Product Description

Product Name:	Automatic Plastic Tray Packing Machine	Punching Frequency:	10-50 Cutting/ Min
Packaging Material:	PVC PE PET	Power:	380V 50Hz 4.5Kw
Max. Forming Area And Depth:	25018030	Applications:	Pharmaceutical Industry, Food Industry, Electronic Industry And Small Hardware.
Weight:	About 600kg
Highlight:	Plastic Plate Making Machine , Disposable Plastic Products Making Machine

Name: Automatic PVC Disposable Plates Tray Making Machine For Medicine small electrionic

Introduction:

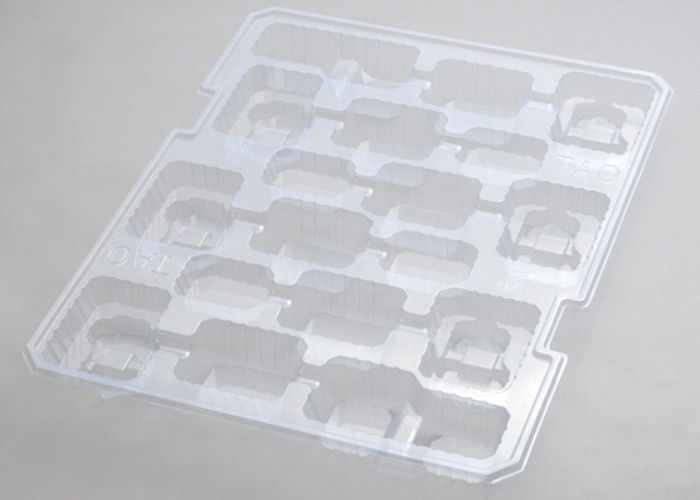

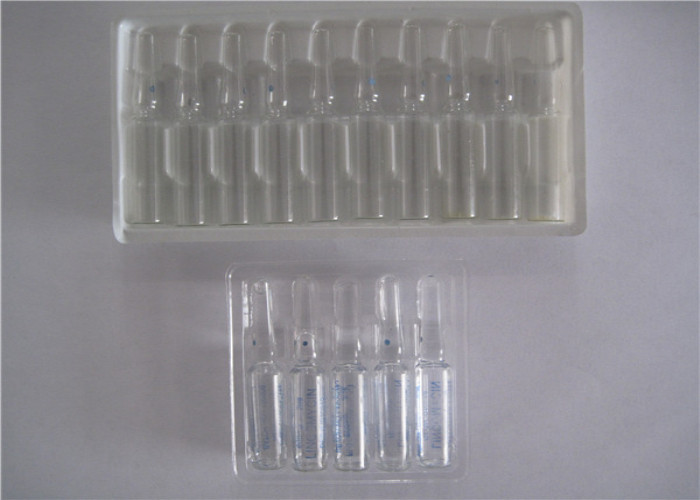

This machine is special for making plastic trays for different smaller items, such as electronic cell , smaller hardware and small sized food so on.

Performance and characteristic

The machine adopts compressed air blow forming, air clip pulling and automatic cutting with flat type structure design.
The mold for the machine adopts trapezoid style fixing, can move forward and backward easily.
It is very convenient to change mold.

TECHNICAL PARAMETER

Item Model		DPP-260
Cutting Frequency		10-50times/min
Max. Forming Area and Depth		250×180×30
Pulling Length		40-200
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.8)×260×(Φ400)
	PTP(mm)	(0.15-0.8)×260×(Φ400)
	PET(mm)	(0.15-0.8)×260×(Φ400)
Power		380V 50Hz 4.5k
Air compression(self-prepared)		0.6-0.8Mpa≥0.5m³/min
Recycle water or circulating water consumption		40-80L/h
Overall Dimension(LWH)		2100×750×1450(including foundation)
Weight		About 600kg

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.
