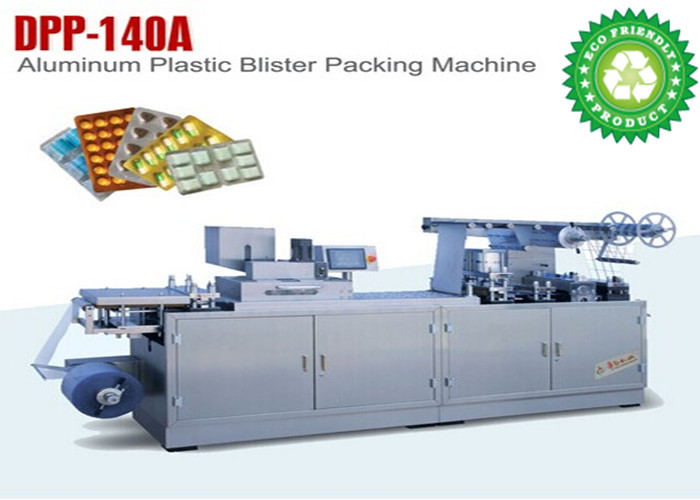

Health Supplement Capsule Plastic Alu Blister Packing Machine

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-140A

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Get Best Price Contact Now

Name:	Blister Packing Machine	Output:	Max.45cutting/min
Used:	Pill Or Capsule Or Tablet Etc.	System:	PLC Touch Screen
Noise:	Low	Option Parts 1:	Vision Inspection System
Highlight:	Blister Packaging Machinery , Blister Packing Equipment

Health supplement capsule aluminum plastic blister packing machine FACTORY PRICE

Introduction:

It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.

Performance and characteristics:

The machine heats the PVC through heated board and forms by compressed air frothing.
It adopts the interface of human-machine and PLC control system
We can design the mould and feeder according to customer’s requirement
The machine include functions for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
Step motor is adopted on the machine for precise controlling the pulling length and saving packing material.
The heating mold will automatically separate when the machine stops, which can protect the packing material from heated mould.

TECHNICAL PARAMETER

Item Model		DPP-350A	DPP-250A	DPP-140A
Cutting Frequency (ideal sizes:80*57mm)		15-45 cutting/min	15-45 cutting/min	15-45 cutting/min
Max. Forming Area and Depth		350×130×15	250×120×15	140×110×15
Adjustable Scope of Travel(mm)		30-140mm	30-130mm	30-120mm
Packaging material (I.D.Φ75)	PVC(mm)	(0.15-0.6) ×350×(Φ400)	(0.15-0.4) ×260×(Φ400)	(0.15-0.4) ×160×(Φ350)
	PTP(mm)	(0.02-0.15) ×350×(Φ400)	(0.02-0.15) ×260×(Φ400)	(0.02-0.15) ×160×(Φ350)
	Paper(mm)	(50-100)g/㎡ ×350×(Φ400)	(50-100)g/㎡ ×260×(Φ400)	(50-100)g/㎡ ×160×(Φ350)
Power		380V 50Hz 9.5kw	380V 50Hz 8kw	380V 50Hz 5.5kw
Air compression (Don't Provide)		0.6-0.8Mpa ≥0.6m³/min	0.6-0.8Mpa ≥0.45m³/min	0.6-0.8Mpa ≥0.4m³/min
Recycle water or circulating water consumption		60-100L/h	40-80L/h	40-80L/h
Overall Dimension(LWH)(including foundation)		3650×850×1700	2900×750×1600	2400×650×1450
Dimension of Each Part		1850×850×1700(front)	1500×750×1600(front)	1350×650×1250(front)
Dimension of Each Part		1800×850×1650(back)	1400×750×1450(back)	1050×650×1450(back)
Weight		About 2000kg	About 1200kg	About 800kg
