Name: Chewing Gum Plastic Blister Pack Sealing Machine 45 Cutting / Min
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-250A
Availability: InStock

Home Products Automatic Blister Packing Machine

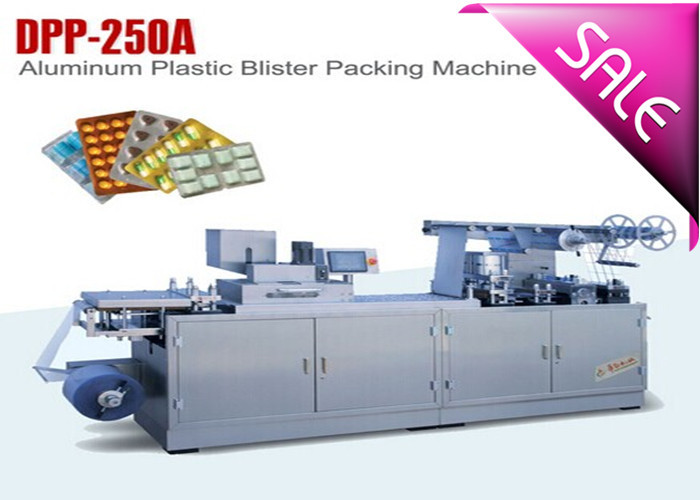

Chewing Gum Plastic Blister Pack Sealing Machine 45 Cutting / Min

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-250A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Name:	Blister Packing Machine	Output:	Max.45cutting/min
Used:	Pill Or Capsule Or Tablet Etc.	System:	PLC Touch Screen
Noise:	Low	Option Parts 1:	Vision Inspection System
Highlight:	PVC Blister Packing Machine , Blister Packing Equipment

Chewing Gum Plastic Blister Pack Sealing Machine 45 Cutting / Min

Introduction:

PLC control system, touch screen with Chinese/English language.

Wide application
High quality
Easy to operate

Performance and characteristics:

1. This machine gets the function for easy cutting line embossing, batch number embossing, trace pressing and wasted packaging material rewinding.

2. The step motor is adopted on the machine for precise controlling the pulling length and saving material.

3. The heating molds of the machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

4. The mold and the automatic feeder can be designed according to customer’s request.

TECHNICAL PARAMETER

Item Model		DPP-350A	DPP-250A	DPP-140A
Cutting Frequency (ideal sizes:80*57mm)		15-45 cutting/min	15-45 cutting/min	15-45 cutting/min
Max. Forming Area and Depth		350×130×15	250×120×15	140×110×15
Adjustable Scope of Travel(mm)		30-140mm	30-130mm	30-120mm
Packaging material (I.D.Φ75)	PVC(mm)	(0.15-0.6) ×350×(Φ400)	(0.15-0.4) ×260×(Φ400)	(0.15-0.4) ×160×(Φ350)
	PTP(mm)	(0.02-0.15) ×350×(Φ400)	(0.02-0.15) ×260×(Φ400)	(0.02-0.15) ×160×(Φ350)
	Paper(mm)	(50-100)g/㎡ ×350×(Φ400)	(50-100)g/㎡ ×260×(Φ400)	(50-100)g/㎡ ×160×(Φ350)
Power		380V 50Hz 9.5kw	380V 50Hz 8kw	380V 50Hz 5.5kw
Air compression (Don't Provide)		0.6-0.8Mpa ≥0.6m³/min	0.6-0.8Mpa ≥0.45m³/min	0.6-0.8Mpa ≥0.4m³/min
Recycle water or circulating water consumption		60-100L/h	40-80L/h	40-80L/h
Overall Dimension(LWH)(including foundation)		3650×850×1700	2900×750×1600	2400×650×1450
Dimension of Each Part		1850×850×1700(front)	1500×750×1600(front)	1350×650×1250(front)
Dimension of Each Part		1800×850×1650(back)	1400×750×1450(back)	1050×650×1450(back)
Weight		About 2000kg	About 1200kg	About 800kg
