Name: Flat type Aluminum Plastic Automatic Blister Packaging Machinery For Cosmetic Industry
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-350A
Availability: InStock

Home Products Automatic Blister Packing Machine

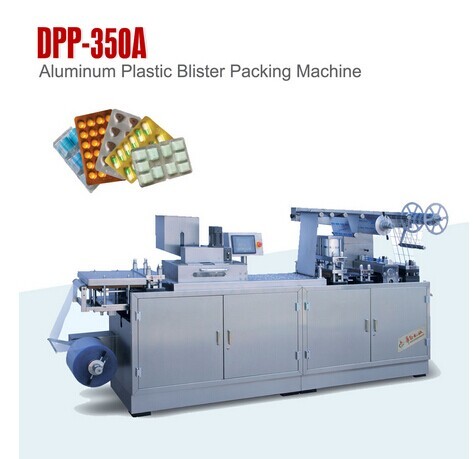

Flat type Aluminum Plastic Automatic Blister Packaging Machinery For Cosmetic Industry

Product Details:

Place of Origin:	China
Brand Name:	HUALE MACHINUARY
Certification:	CE/ ISO9001
Model Number:	DPP-350A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negoation
Packaging Details:	packed in plastic bag and fixed in export wooden box
Delivery Time:	30 working days after received your payment
Supply Ability:	20 Sets per month

Contact Now

Detailed Product Description

Machine Name:	Flat Type Aluminum Plastic Blister Packing Machine	Packaging Material:	Aluminum Foil PVC Or PVC Heating Sealing Paper
Puching Frequnency:	45cutting/min	Max Forming Area And Depth:	35013015mm
Blister Plate Size:	Design According To Customer's Requirement	Machine Weight:	About2000kg
Highlight:	Blister Packaging Machinery , Blister Packing Equipment

Flat type Aluminum Plastic Automatic Blister Packaging Machinery For Cosmetic Industry

Introductions:

This machine is suitable for kinds of products packaging and it is easy to operate. The machine is suitable for aluminum foil(PTP), PVC or paper PVC blister packaging.

It adopts the interface of human-machine and PLC control system.

Performance and characteristics:

The machine heats the PVC through heated board and forms by compressed air frothing.

The heating mold will automatically separate when the machine stops, which can protect the packing material from heated mould.

Adopt Step motor for precise controlling the pulling length and saving packing material.

Functions for cutting line embossing, batch number embossing and wasted packaging material rewinding.

Mold and feeder can be designed according to customer’s requirement.

TECHNICAL PARAMETER

Item Model		DPP-350A
Cutting Frequency(ideal sizes:80*57mm)		15-45 cutting/min
Max. Forming Area and Depth		350×130×15
Adjustable Scope of Travel(mm)		30-140mm
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.4)×350×(Φ400)
	PTP(mm)	(0.02-0.15)×350×(Φ400)
	Paper(mm)	(50-100)g/㎡ ×350×(Φ400)
Power		380V 50Hz 9.5kw
Air compression(self-prepared)		0.6-0.8Mpa≥0.6m³/min
Recycle water or circulating water consumption		60-100L/h
Overall Dimension(LWH)(including foundation)		3650×850×1700
Dimension of Each Part		1850×850×1700(front)
		1800×850×1650(back)
Weight		About 2000kg
