Name: Aluminum PVC Flat Type Large Forming Area Blister Packaging Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-350A
Price: 17,500.00 USD
Availability: InStock

Home Products Automatic Blister Packing Machine

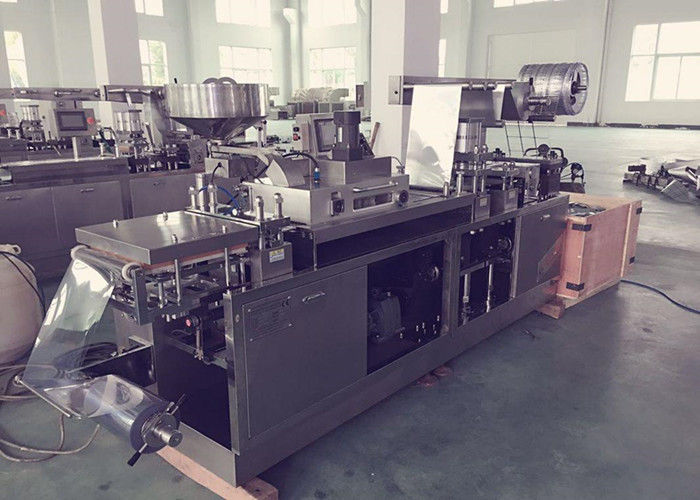

Aluminum PVC Flat Type Large Forming Area Blister Packaging Machine

Product Details:

Place of Origin:	China
Brand Name:	HUALE MACHINUARY
Certification:	CE/ ISO9001
Model Number:	DPP-350A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$15000-$20000
Packaging Details:	packed in plastic bag and fixed in export wooden box
Delivery Time:	30 working days after received your payment
Supply Ability:	20 Sets per month

Contact Now

Detailed Product Description

Machine Name:	Flat Type Aluminum Plastic Blister Packing Machine	Packaging Material:	Aluminum Foil PVC Or PVC Heating Sealing Paper
Puching Frequnency:	45cutting/min	Max Forming Area And Depth:	35013015mm
Blister Plate Size:	Design According To Customer's Requirement	Machine Weight:	About2000kg
Highlight:	Blister Packaging Machinery , Blister Packing Equipment

Product Name:Aluminum PVC Larger Forming Area Blister Packaging Machine

Introductions:

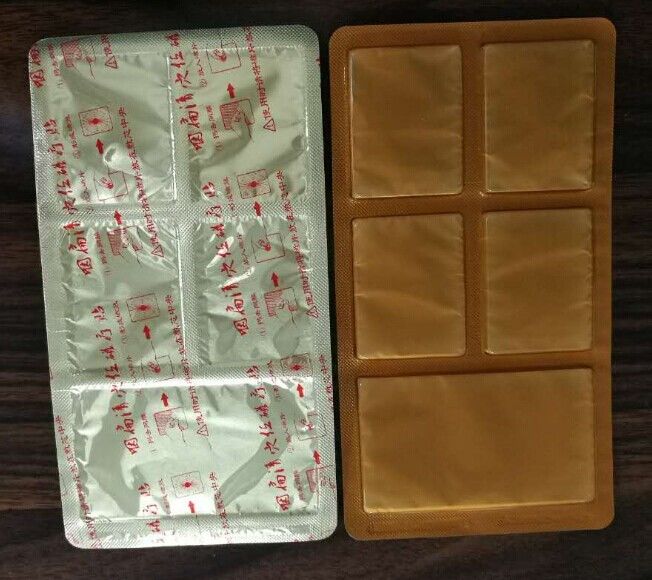

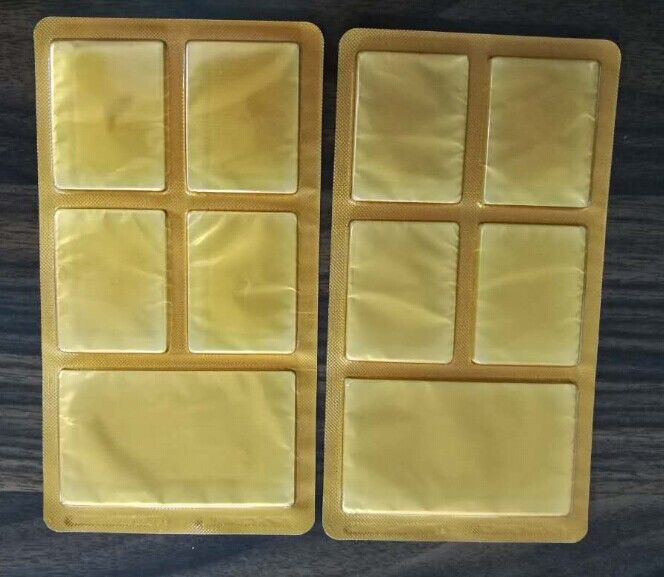

This machine is suitable for kinds of products packaging and it is easy to operate. The machine is suitable for aluminum foil(PTP), PVC or paper PVC blister packaging.

It adopts the interface of human-machine and PLC control system.

FEATURES

Full function PLC & MMI
automatic vibration disco brush feeder
Separate embossing and trace-pressing stations
Recipe program through MMI
Full stainless steel 304body
Shorter changeover time
Forming station: Flat plate type
Sealing station: Flat plate type
Utmost simplicity in operation & maintenance
GMP Compliance

Performance and characteristics:

The machine is controlled by PLC,which make it has accurately operation and simple construction. The larger forming area and depth is suitable for more items which expand application range of the machine.
The machine use heating board to make PVC’s temperature up tp 100℃ and use compressed air to make PVC formed.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.
Speed is shifted by step-less transducer. Blanking frequency is 45times/min.
the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
Mould and feeder can be designed according to customer ‘s request.

TECHNICAL PARAMETER

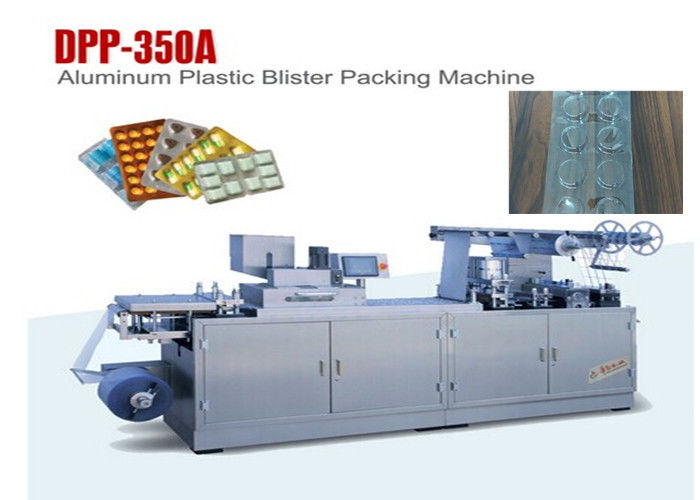

Item Model		DPP-350A
Cutting Frequency(ideal sizes:80*57mm)		15-45 cutting/min
Max. Forming Area and Depth		350×130×15
Adjustable Scope of Travel(mm)		30-140mm
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.4)×350×(Φ400)
	PTP(mm)	(0.02-0.15)×350×(Φ400)
	Paper(mm)	(50-100)g/㎡ ×350×(Φ400)
Power		380V 50Hz 9.5kw
Air compression(self-prepared)		0.6-0.8Mpa≥0.6m³/min
Recycle water or circulating water consumption		60-100L/h
Overall Dimension(LWH)(including foundation)		3650×850×1700
Dimension of Each Part		1850×850×1700(front)
		1800×850×1650(back)
Weight		About 2000kg

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.
