Aluminum Foil Automatic Blister Packing Machine For Medicine / Health Food

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-140A

Minimum Order Quantity:	1Set
Price:	USD $100-12,000/set
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	10 Set per month

Get Best Price Contact Now

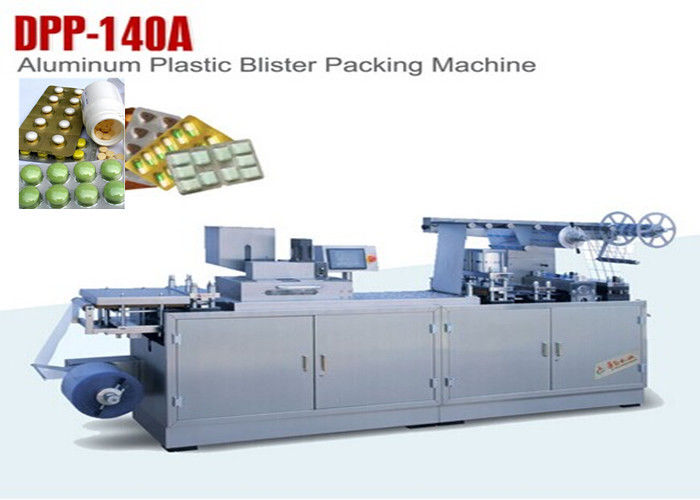

Product Name:	DPP-140A Mini Automatic Blister Packaging Machine	Punching Frequency:	15-45cutting/min
Adjustable Pulling Length:	30-120mm	Packing Material:	PVC PTP And Aluminum Foil
Control:	PLC Control	Power:	380/220V Three Phase
Weight:	800kg
Highlight:	PVC Blister Packing Machine , Blister Packaging Machinery

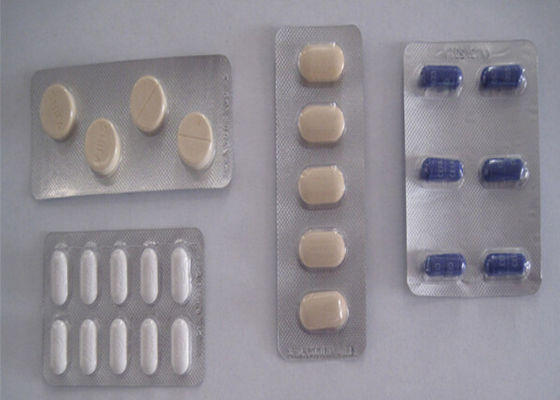

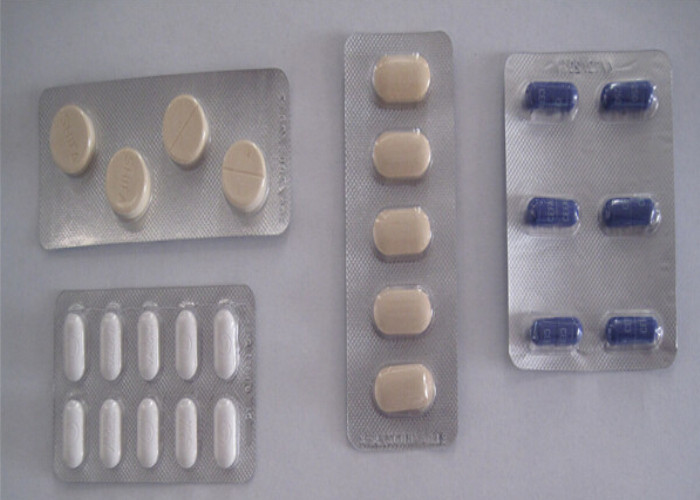

Automatic aluminum foil blister pack equipment for medicine, health food.

Instroduction

The machine is controlled by PLC,which make it has accurately operation and simple construction.
The machine use heating board to make PVC’s temperature up tp 100℃ and use compressed air to make PVC formed.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.
Speed is shifted by step-less transducer. Blanking frequency is 45times/min max.

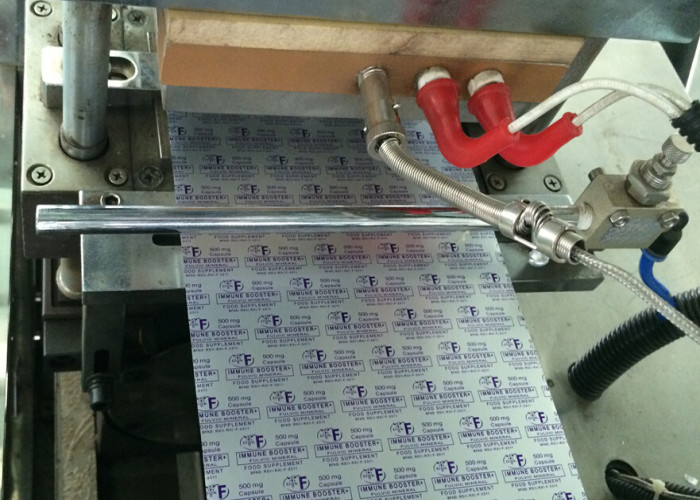

the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
Mould and feeder can be designed according to customer ‘s request.

TECHNICAL PARAMETER

Item Model		DPP-140A
Cutting Frequency(ideal sizes:80*57mm)		15-45 cutting/min
Max. Forming Area and Depth		140×110×15mm
Adjustable Scope of Travel(mm)		30-120mm
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.4)×160×(Φ350)
	PTP(mm)	(0.02-0.15)×160×(Φ350)
	Paper(mm)	(50-100)gsm ×160×(Φ350)
Power		380V 50Hz 5.5k
Air compression(self-prepared)		0.6-0.8Mpa≥0.4m³/min
Recycle water or circulating water consumption		40-80L/h
Overall Dimension(LWH)(including foundation)		2400×650×1450
Dimension of Each Part		1350×650×1250(front)
		1050×650×1450(back)
Weight		About 800kg

Package:

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.

Aluminum Foil Automatic Blister Packing Machine For Medicine / Health Food 0

AFTER SERVICE:

For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem.
For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.
