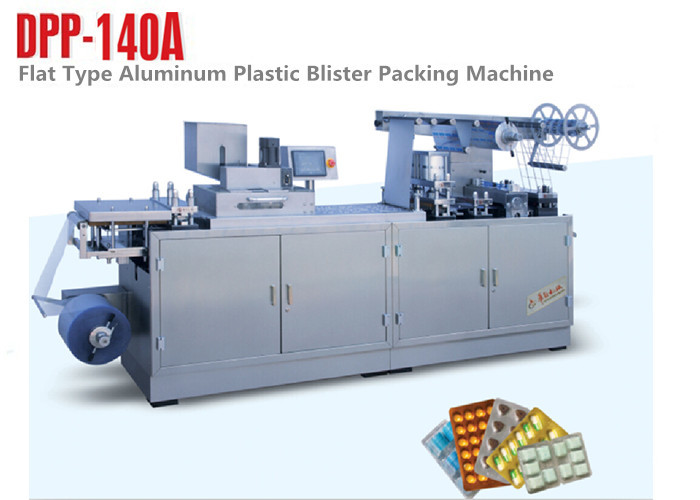

Name: PVC Blister Forming Machine , Blister Packaging Equipment With PLC Control
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-140A
Availability: InStock

Home Products Automatic Blister Packing Machine

PVC Blister Forming Machine , Blister Packaging Equipment With PLC Control

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DPP-140A

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Blister Packing Machine	Output:	Max.45cutting/min
Max. Forming Area And Depth:	14011015	Pulling:	Step Motor Driving
Material Consist:	SS304/316	Control:	PLC Control
Detection System:	Mechanical Detection Or Visual Inspection	Plate Correspondence:	PRC System
Used:	Pill Or Capsule Or Tablet Or Food Etc.
Highlight:	Blister Packaging Machinery , Blister Packing Equipment

Alu PVC Blister Packaging Equipment Blister Pack Machines PLC Control

Specifications

Model		140A
Machine Body		Stainless Steel 304
Blanking frequency(times/min)		15-45
Adjustable pulling length		30-120mm
Blister Plate Size		Design According To Customers’ Requirements
Max Forming area and depth(mm)		14011015 (20 need Private custom)
Air compressor (Don't provide)		0.6-0.8Mpa ≥0.4m3/min
Mould cooling (Recycle water or circulating water consumption)		40-80 L/h
Power supply (Three phase)		380V/220V 50HZ 5.5KW (According to the customer need to select the voltage)
Wrapper specification(mm)	PVC	160(0.15-0.6)(Φ400)
	Aluminum foil	160(0.02-0.035)(Φ400)
Overall Dimension(LWH)(including foundation)		24006501450
Dimension of Each Part		13006501250front)
		10506501450(back)
Weight		About 800kg

Description

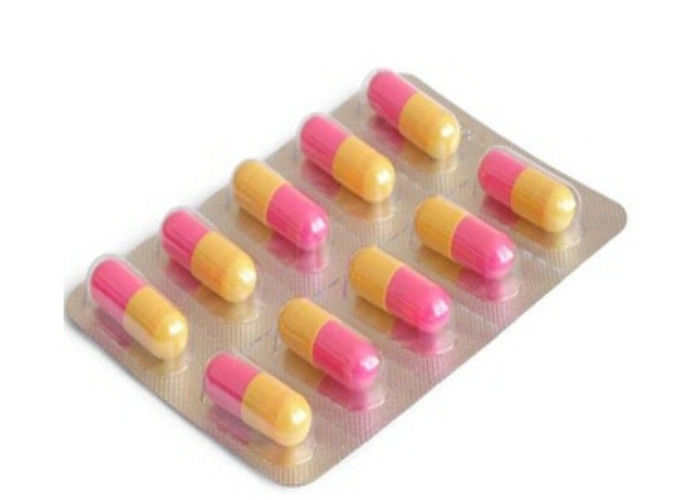

Blister pack use varieties of materials, novel shapes, sizes or perforations.
Fast & easy set-up – no specialist knowledge is required to operate so there is no need for an engineer to be present.
Fast changeover - reduces down-time between production batches.
HUALE can design your new blister packs. This is especially useful for customers who conduct clinical trials. We can advise them how to rationalise the number of different tools needed, even if the lab needs to package many different products.
Compact, portable design.
GMP reached

Applications
Blister Machine DPP-140A is good for producing small batches and high quality blister packs in:
Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.
