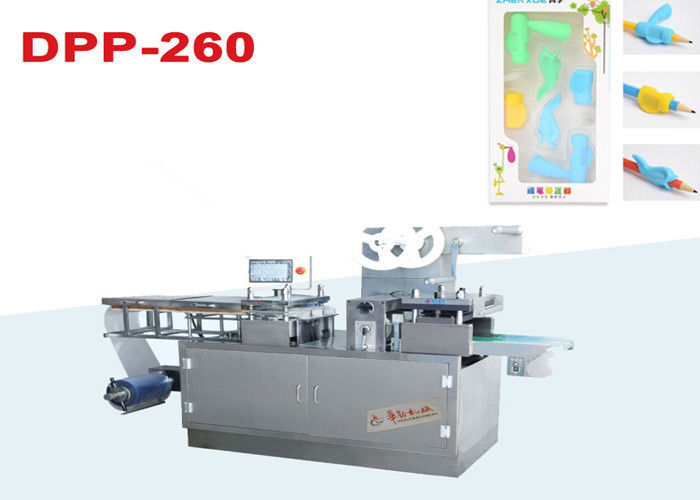

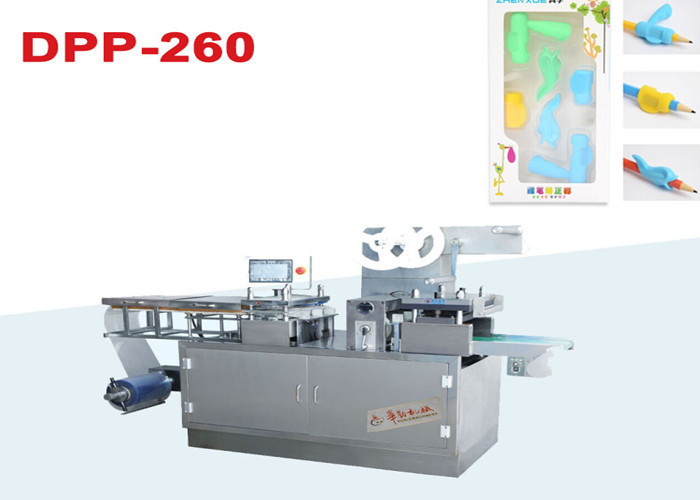

Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine

Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine
Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine
Basic Information
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE/ISO9001
Model Number: DPP-260
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30 working days after received your payment
Supply Ability: 10 Sets per month
Get Best Price Contact Now
Product Name: Automatic Plastic Tray Packing Machine Punching Frequency: 10-50 Cutting/ Min
Packaging Material: PVC PE PET Power: 380V 50Hz 4.5Kw
Max. Forming Area And Depth: 250*180*30 Applications: Pharmaceutical Industry, Food Industry, Electronic Industry And Small Hardware.
Weight: About 600kg
Highlight:

Plastic Plate Making Machine

,

Disposable Plastic Products Making Machine

Name:Stationary tray blister making machine/ plastic heat forming machine



Introduction:



This machine Mainly used for the products with simple structure but in big quantity, such as small cake trays, button cell trays, cup carriers and disposable medical care products.





TECHNICAL PARAMETER



Item Model

DPP-260

Cutting Frequency

10-50times/min

Max. Forming Area and Depth

250×180×30

Pulling Length

40-200

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.8)×260×(Φ400)

PTP(mm)

(0.15-0.8)×260×(Φ400)

PET(mm)

(0.15-0.8)×260×(Φ400)

Power

380V  50Hz  4.5k

Air compression(self-prepared)

0.6-0.8Mpa≥0.5m³/min

Recycle water or circulating water consumption

40-80L/h

Overall Dimension(L*W*H)

2100×750×1450(including foundation)

Weight

About 600kg





Performance and characteristic



  • The machine adopts compressed air blow forming, air clip pulling and automatic cutting with flat type structure design.
  • The mold for the machine adopts trapezoid style fixing, can move forward and backward easily.
  • It is very convenient to change mold, about 30 minutes.

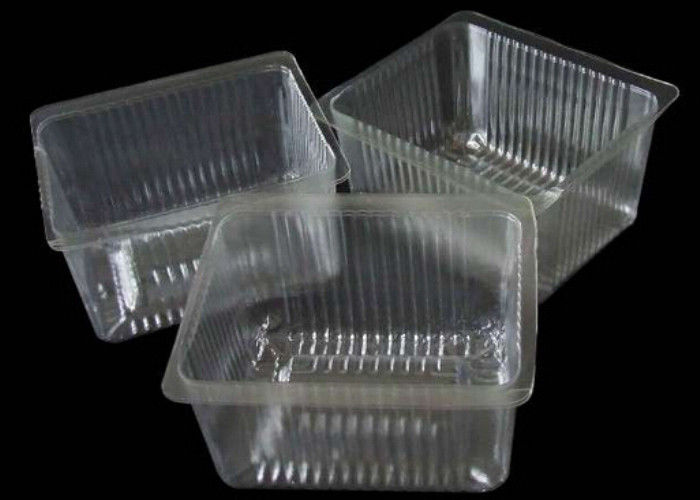

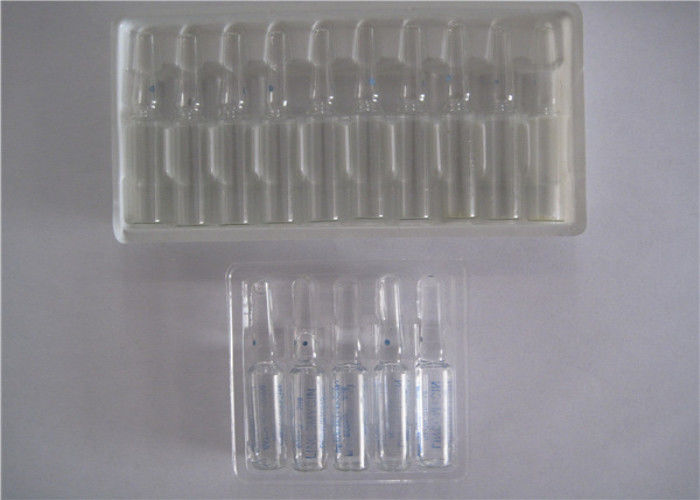

TRAY PRODUCTS



Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine 0



PACKAGE

  1. The machine will not be shaking in transport with wooden fixed.
  2. The machine will not be affected with damp in transport with packed with PE plastic bags.
  3. Easy shaking station will fixed with hard rope.
  4. Long machine will packed separately.
  5. If there are strict requirements, chassis can use iron girders.



Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine 1

Stationary Tray Blister Making Machine , 10-50 Cutting / Min Plastic Vacuum Forming Machine 2
