High Speed Automatic Carton Packing Machine For Pharmaceutical And Health Care Industry

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001

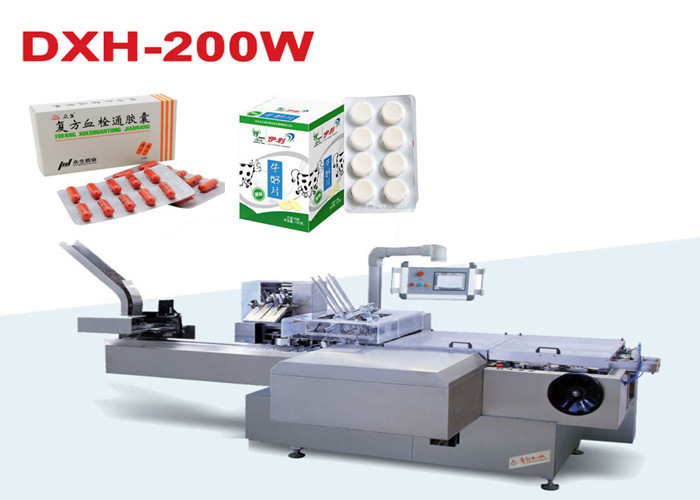

Model Number:	DXH-200W

Minimum Order Quantity:	1Set
Price:	1-100,000 usd/set
Packaging Details:	EXPORTED WOODEN BOX.
Delivery Time:	45 working days after received your payment.
Supply Ability:	10 Set per year

Get Best Price Contact Now

Product Name:	HIGH SPEED AUTOMATIC CARTONING MACHINE	Output:	Max.200 Boxes/min
Box Dimension Range:	(55-220)mm(20-100)mm(14-70)mm	Material Consist:	Stainless Steel 304
Weight:	1500KG	Dimension:	4300mm1440mm1600mm
Motor Power:	1.5kw 380v 50Hz
Highlight:	filling and sealing machine , automatic vacuum packing machine

Name: High Speed Automatic Carton Packing Machine For Pharmaceutical And Health Care Industry

Introduction

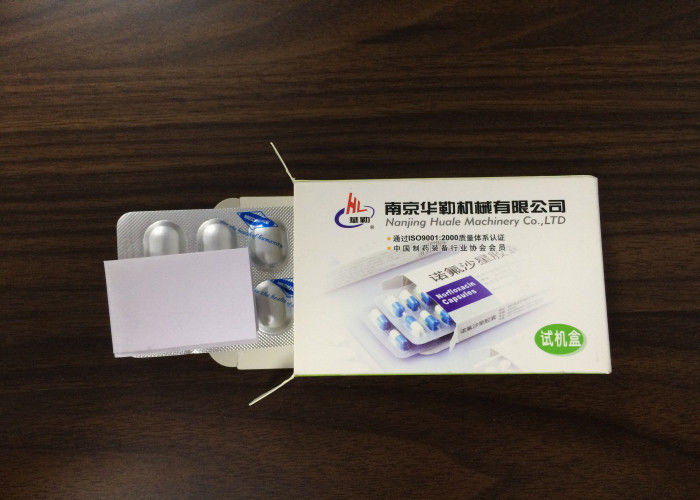

This High Speed carton machine is new designed and based on domestic and abroad advanced technology which combined Mechanical, electrical, pneumatic and optical together. The machine is suitable for packaging different objects with automatic leaflet inserting, carton opening, object cartoning, batch number embossing and carton sealing, such as ALU-PVC blister plate, bottles, cosmetics, playing cards, electronics and daily use hardware, etc.

Performance and characteristics

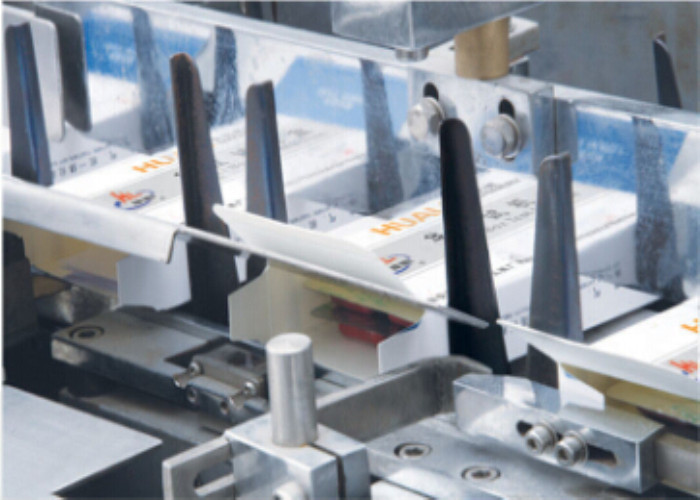

The machine works continuously with mechanical pushing objects into carton with smooth and reliable working situation.
The object pusher comes with alarming system while the objects are not at the right position, it ensures the good carton quality and safety in operation.

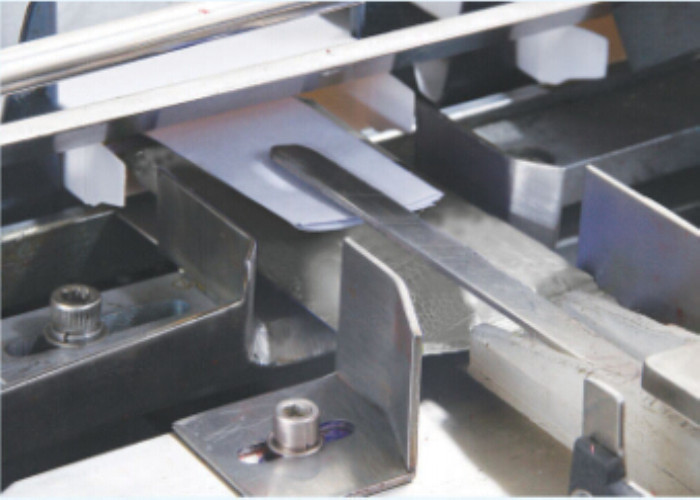

Continuous carton opening system with pulling style opening station makes machine working more stable and smoothly.
The machine adopts servo feeding system which makes the feeding more smoothly and stable.
The machine has the vacuum protection stopping system and automatic testing and stopping system for cover opening, to ensure human safety when operating.
It is easy and convenient to change and adjust the product size with hand wheel.
The speed is controlled by converter while the whole system is controlled by PLC and operating by touch screen for easier and simpler production, all machine running status are displayed by double language.
The machine has the function of overloading protecting and failure diagnosis indication, and production of automatic shutdown system failure.

Technical parameters

Cartoning speed		200 carton/min
Carton	Request	250-350g/m2(according to carton size)
Carton	Specification	(55-220)(20-100)(14-70)mm
Leaflet	Request	55-70g/m2
	Dimension Range	(80-240)(90-190)mm(LW)
	Folding area	(1-4)fold
Compressed air	Pressure	≥0.6Mpa
Compressed air	Consumption	120-160L/min
Power		380V 50HZ 1.5kw
Dimension		430014401600mm (LWH)
Net weight		1500kg

High Speed Automatic Carton Packing Machine For Pharmaceutical And Health Care Industry 0

WARRANTY

Technical Support(24 hours on line trademanager, skype, MSN, mobile).
Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
Video for debugging after sent products.
Pre-maintance.
Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
Welcome send us samples to test on our machine and we will take video for you to confirm.
Welcome visit our factory for checking machine and offer training course for your workers.
