Name: Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-260
Price: 8,000.00 USD
Availability: InStock

Home Products Plastic Tray Making Machine

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE/ISO9001
Model Number:	DPP-260

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD $1000-15000/SET
Packaging Details:	packed in plastic bag and fixed in export wooden box
Delivery Time:	30 working days after received payment
Supply Ability:	10 Set per month

Contact Now

Detailed Product Description

Machine Name:	Plastic Thermoforming Machine	Mold Material:	PS/PVC/PET/PE
Pulling Motor:	Step Motor	Forming Type:	Compressed Air Blow Forming
Applications:	Pharmaceutical Industry, Food Industry, Electronic Industry And Small Hardware.
Highlight:	Plastic Plate Making Machine , Nursery Tray Making Machine

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine

Application

This automatic plastic tray making machine is used for molding the plastic material as PS/PVC/PET and so on

It is widely used for the products with simple structure but in big quantity, such as small cake trays, button cell trays, cup carriers and disposable medical care products.

Description

Flat type structure design, small volume, convenient operating.

Compressed air blow forming, Step motor pulling and automatic cutting with flat type structure design.

The mold for the machine adopts trapezoid style fixing, can move forward and backward easily.

It is very convenient to change mold, about 30 minutes.

TECHNICAL PARAMETER

Item Model		DPP-260
Cutting Frequency		10-50times/min
Max. Forming Area and Depth		250×180×30
Pulling Length		40-200
Packaging material(I.D.Φ75)	PVC(mm)	(0.15-0.8)×260×(Φ400)
	PTP(mm)	(0.15-0.8)×260×(Φ400)
	PET(mm)	(0.15-0.8)×260×(Φ400)
Power		380V 50Hz 4.5k
Air compression(self-prepared)		0.6-0.8Mpa≥0.5m³/min
Recycle water or circulating water consumption		40-80L/h
Overall Dimension(LWH)		2100×750×1450(including foundation)
Weight		About 600kg

Applicable Object

PS/PVC/PET Plastic cup lid,Hardware tray,food tray,pharmaceutical tray etc.

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 0

Cup lid styles

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 1

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 2

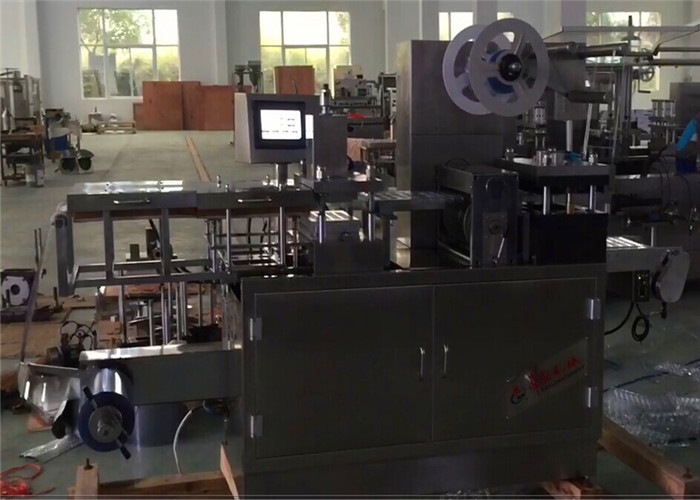

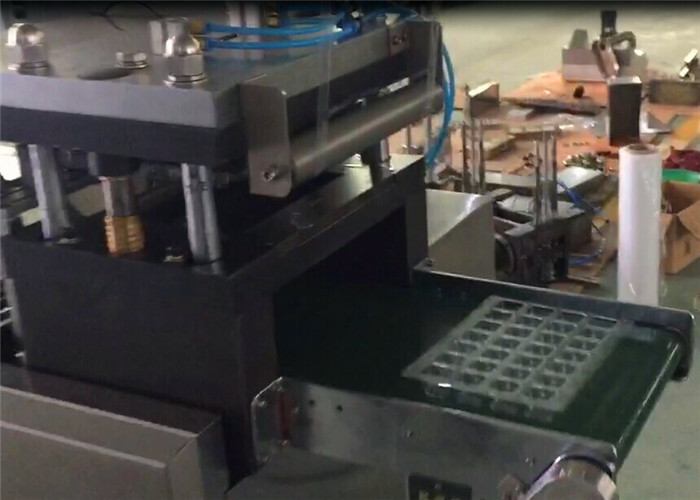

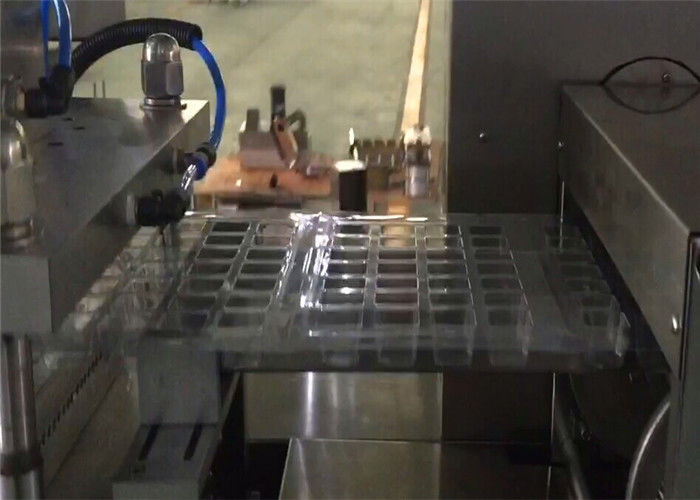

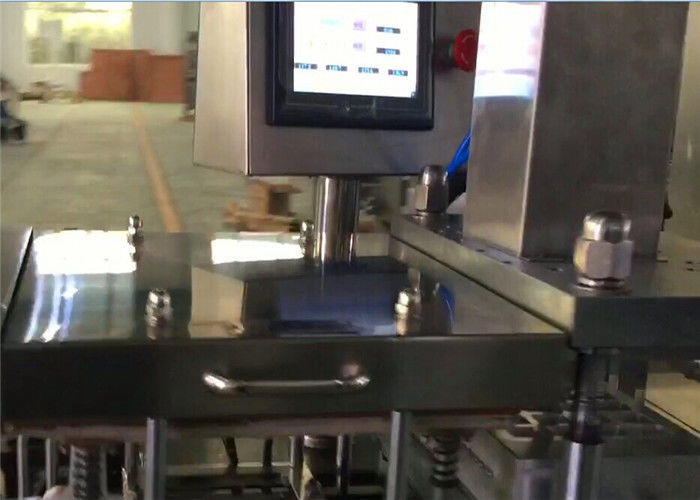

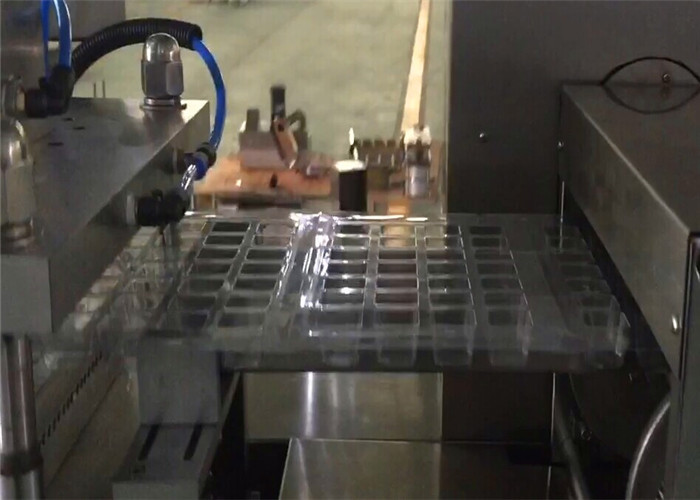

MACHINE WORKING PHOTOES

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 3

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 4

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 5

PACKAGE

The machine will not be shaking in transport with wooden fixed.
The machine will not be affected with damp in transport with packed with PE plastic bags.
Easy shaking station will fixed with hard rope.
Long machine will packed separately.
If there are strict requirements, chassis can use iron girders.

Noiseless Plastic Tray Making Machine Auto Plastic Mold Thermoforming Machine 6
