Place of Origin: | China |
---|---|
Brand Name: | HUALE MACHINUARY |
Certification: | CE/ ISO9001 |
Model Number: | DPP-250A |
Minimum Order Quantity: | 1 set |
Price: | usd 10000-2000/set |
Packaging Details: | packed in plastic bag and fixed in export wooden box |
Delivery Time: | Within 40 working days upon receipt the machine deposit |
Supply Ability: | 5 Sets per month |
Machine Name: | Flat Type Aluminum Plastic Blister Packing Machine | Model: | DPP-250A |
---|---|---|---|
Packaging Material: | PVC, PP, PET, PTP, Heating Sealing Paper | Application: | Food Industry, Cosmetic Industry, Pharmaceutical Industry And Medical Device Industry |
Motor: | Step Motor | ||
Highlight: | PVC Blister Packing Machine,Blister Packing Equipment |

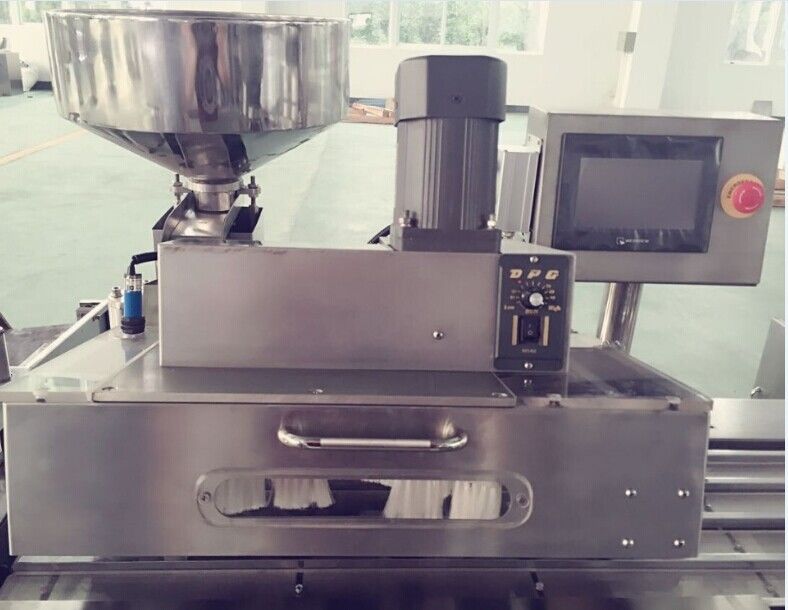

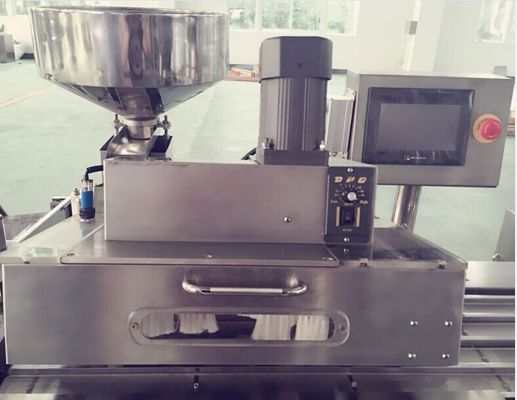

Fully Automatic Blister Packing Machine With Auto Vibration Disco Brush Feeder
Features:
Performance:
The PVC is soften by heating board in the heating box and formed by compressed air in the forming mechanism. The the medicine( such as capsules or tablets) will be filled into the blister through the feeder. The Aluminum foil is transported by mini motor and enter into heat sealing mechanism and integrate with PVC to heat-seal. After heat-sealing, the machine are going to batch number print, trace-pressing. At last the blister wrapper will enter into the blanking mechanism and complete the blister packing. The heating mould can automatically separate when the machine stops, which contributes to protect the packing material from heated.
Technical Parameters
Item Model |
DPP-250A |
|
Cutting Frequency(ideal sizes:80*57mm) |
15-45 cutting/min |
|
Max. Forming Area and Depth |
250×120×15 |
|
Adjustable Scope of Travel(mm) |
30-130mm |
|
Packaging material(I.D.Φ75) |
PVC(mm) |
(0.15-0.4)×260×(Φ400) |
PTP(mm) |
(0.02-0.15)×260×(Φ400) |
|
Paper(mm) |
(50-100)g/㎡ ×260×(Φ400) |
|
Power |
380V 50Hz 8kw |
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.45m³/min |
|
Recycle water or circulating water consumption |
40-80L/h |
|
Overall Dimension(L*W*H)(including foundation) |
2900×750×1600 |
|
Dimension of Each Part |
1500×750×1600(front) |
|
1400×750×1450(back) |
||
Weight |
About 1200kg |
