Name: DPP - 140A Small Blister Pack Machines , Bubble Thermoforming Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-140A
Price: 10,000.00 USD
Availability: InStock

Home Products Automatic Blister Packing Machine

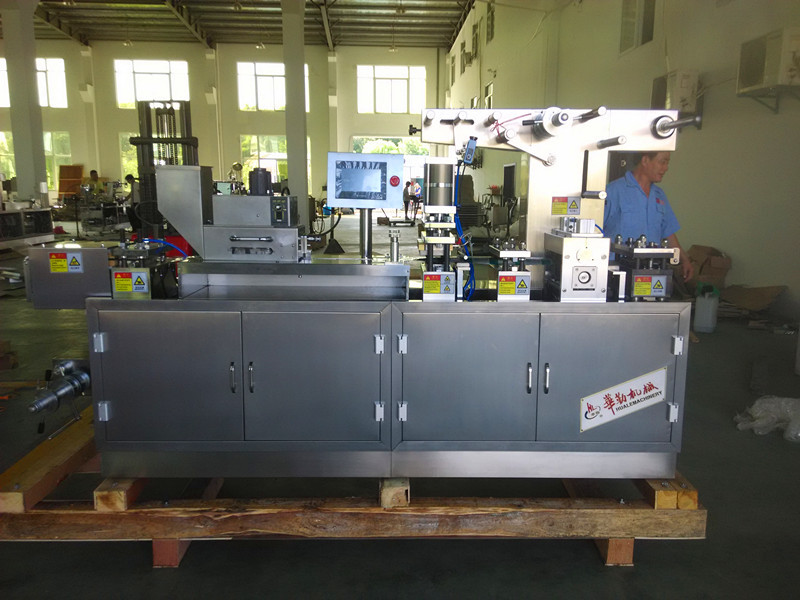

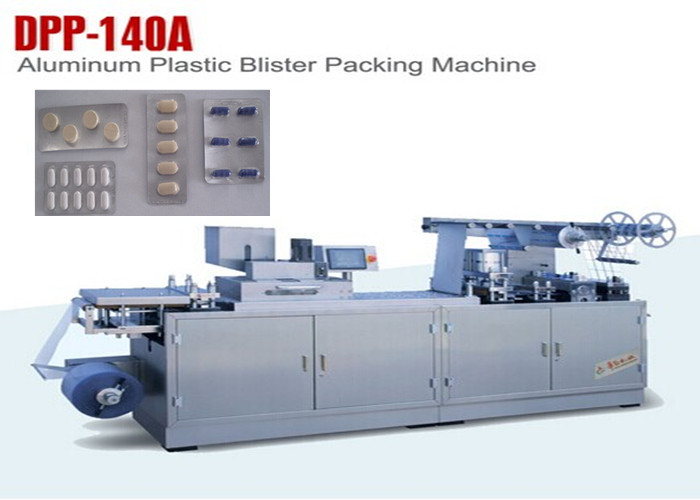

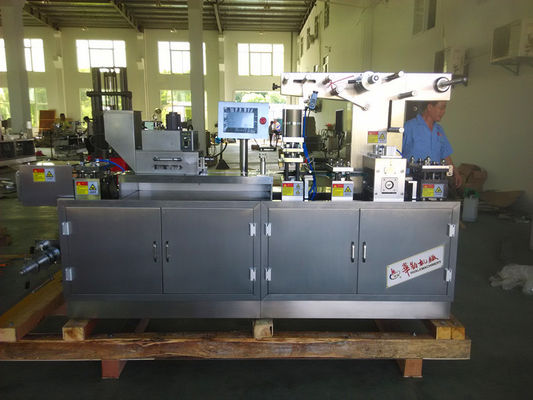

DPP - 140A Small Blister Pack Machines , Bubble Thermoforming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DPP-140A

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	$9000-$11000/set
Packaging Details:	packed with plastic film then fixed in export wooded box
Delivery Time:	within 40 working days after received your payment
Supply Ability:	10 Sets per month

Contact Now

Detailed Product Description

Product Name:	Blister Packing Machine	Pulling:	Step Motor Driving
Material Consist:	SS304/316	Control:	PLC Control
Detection System:	Mechanical Detection Or Visual Inspection	Plate Correspondence:	PRC System
Used:	Pill Or Capsule Or Tablet Or Food Etc.
Highlight:	PVC Blister Packing Machine , Blister Packaging Machinery

DPP - 140A Small Blister Pack Machines , Bubble Thermoforming Machine

(can change feeder)

FEATURES

Full function PLC & MMI

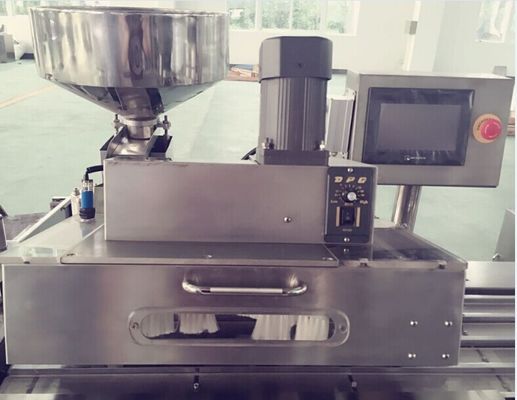

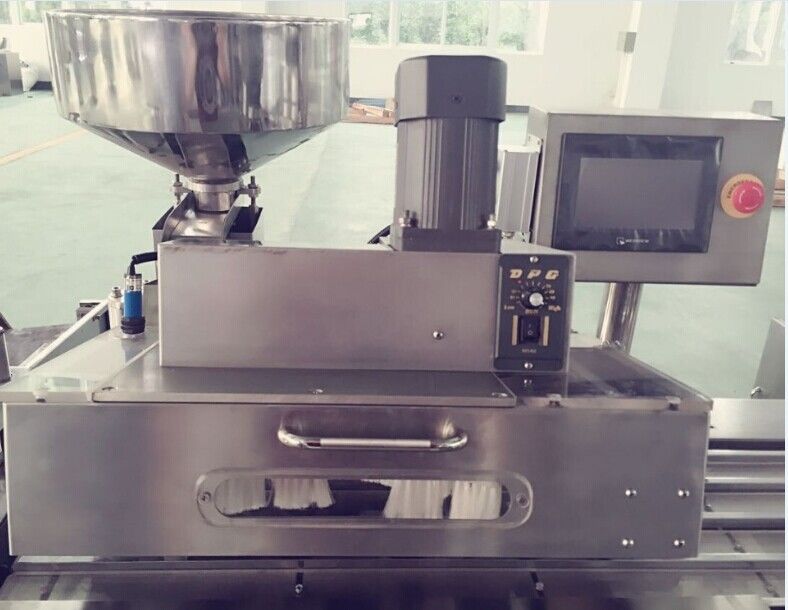

automatic vibration disco brush feeder
Separate embossing and trace-pressing stations
Recipe program through MMI
Full stainless steel 304body
Shorter changeover time
Forming station: Flat plate type
Sealing station: Flat plate type
Utmost simplicity in operation & maintenance
GMP Compliance

Specifications

Model		140A
Machine Body		Stainless Steel 304
Blanking frequency(times/min)		15-45
Adjustable pulling length		30-120mm
Blister Plate Size		Design According To Customers’ Requirements
Max Forming area and depth(mm)		14011015 (20 need Private custom)
Air compressor (Don't provide)		0.6-0.8Mpa ≥0.4m3/min
Mould cooling (Recycle water or circulating water consumption)		40-80 L/h
Power supply (Three phase)		380V/220V 50HZ 5.5KW (According to the customer need to select the voltage)
Wrapper specification(mm)	PVC	160(0.15-0.6)(Φ400)
	Aluminum foil	160(0.02-0.035)(Φ400)
Overall Dimension(LWH)(including foundation)		24006501450
Dimension of Each Part		13006501250front)
		10506501450(back)
Weight		About 800kg

Description

Blister pack use varieties of materials, novel shapes, sizes or perforations.
Fast & easy set-up – no specialist knowledge is required to operate so there is no need for an engineer to be present.
Fast changeover - reduces down-time between production batches.
HUALE can design your new blister packs. This is especially useful for customers who conduct clinical trials. We can advise them how to rationalise the number of different tools needed, even if the lab needs to package many different products.
Compact, portable design.
GMP reached

OVERALL SKETCH

DPP - 140A Small Blister Pack Machines , Bubble Thermoforming Machine 0

WARRANTY

Technical Support(24 hours on line email skype, wechat, whatsapp).
Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
Video for debugging after sent products.
Pre-maintance.
Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
Welcome send us samples to test on our machine and we will take video for you to confirm.
Welcome visit our factory for checking machine and offer training course for your workers.
