PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw

PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw
PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw
Basic Information
Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-88H
Minimum Order Quantity: 1Set
Price: 4800 usd/set
Packaging Details: 1.The machine will not be shaking in transport with wooden fixed. 2.The machine will not be affected with damp in transport with packed with PE plastic bags. 3.Easy shaking station will fixed with hard rope. 4.Long machine will packed separately. 5.If ther
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Get Best Price Contact Now
Product Name: Small Blister Packing Machine Output: Max.30cutting/min
Max. Forming Area And Depth: 100*90*15 Material Consist: SS304/316
Control: PC Circuit Panel Detection System: Mechanical Detection Or Visual Inspection
Power: 220V 50Hz 4.5Kw Cooling: 30-50L/h
Highlight:

PVC Blister Packing Machine

,

Blister Packing Equipment

PC controled Mini Pharmaceutical Automatic Blister Packaging Machinery DPP-88H



Description



1. Pulling length can be adjusted. Mold is located by located groove so that it's easy to change mold. The
machine heats the PVC through conduction and forms it through pressing and frothing.
2. The material is fed automatically. The mold and feeder can be designed as user's requirements.
3. The heating molds will automatically separate when the machine stops, which contributes to protect the material from heated moulds.
4. The machine comes with Perforation embossing, batch number embossing and wasted material rewinding.
5. Air Clip forward and backward cycling running for pulling the packing material.
6. Speed is controlled by inverter while operation on touch panel.



Specifications



using air clip to tow material

operated by PC circuit panel

speed controlled by transducer

forming tray, filling in tray and sealing tray functions etc.

The feeder can be changed as your request.

CE ISO Certification.



Techincal Parameter



Item Model

DPP-88H

Cutting Frequency

10-30times/min

Max. Forming Area and Depth

100×90×15mm

Adjustable Scope of Travel

40-100mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.4)×110×(Φ300)

PTP(mm)

(0.02-0.15)×110×(Φ250)

PET(mm)

(50-100)g/m2×110×(Φ300)

Power

220V  50Hz  4.5k

Air compression(self-prepared)

0.6-0.8Mpa≥0.3m³/min

Recycle water or circulating water consumption

 30-50L/h

Overall Dimension(L*W*H)

1700×450×1100(including foundation)

Weight

About 300kg

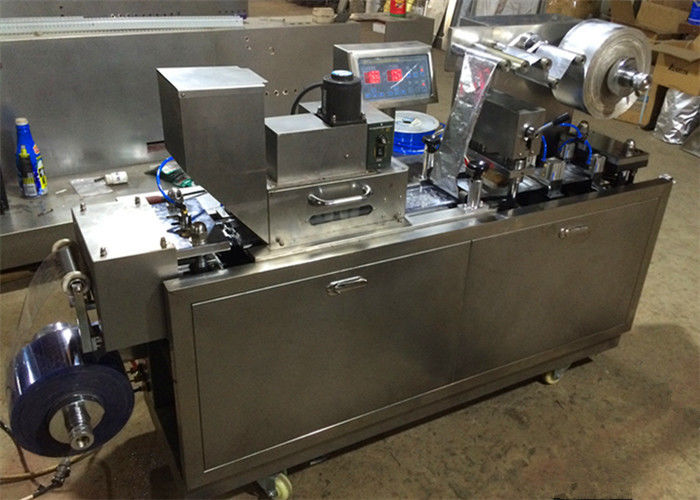

Machine details



PC Controlled Mini Pharmaceutical Blister Packaging Machinery DPP-88H 220V 50Hz 4.5Kw 0





WARRANTY

  1. Technical Support(24 hours on line , skype, wechat, whatsapp).
  2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
  3. Video for debugging after sent products.
  4. Pre-maintance.
  5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
  6. Welcome send us samples to test on our machine and we will take video for you to confirm.
  7. Welcome visit our factory for checking machine and offer training course for your workers.



Questions and Answers



Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.
