Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules

Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules

  • Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules
  • Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules
Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules
Product Details:
Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard
Model Number: DPP-260
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 20.000-30.000 usd/set
Packaging Details: packed with plastic film then fixed in export wooded box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Ampoule Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 250*180*30 Pulling: Step Motor Driving
Material Consist: SS304/316 Control: PLC Control
Detection System: Mechanical Detection Or Visual Inspection Plate Correspondence: PRC System
Highlight:

Pharmaceutical Packaging Machine

,

ampoule filling machine



Name:Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoule



Introduction



High-tech blister packing machine for aluminum-plastic, paper-plastic packing
Adopting PLC, frequency converter and man-machine interface
Ease for operation, stable running and qualified with GMP
Large forming area and more plates per cutting
Especially for ampoule and vial etc packing in pharmacy industry.





Specifications



It adopts hanging design,easy to clean up the machine parts,with the requirements of GMP,this machine is widely used for syringe,vials,injection,ampoule blister packing .

This machine Mainly used for packing ampoules into blister, suitable for different Ampoule size ,2ml,5ml,10ml

Item Model

DPP-260

Punching Frequency

10-30 times/min

Max. Forming Area and Depth

250×180×30

Puling length

40-200

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.8)×260×(Φ400)

PTP(mm)

(0.15-0.8)×260×(Φ400)

PET(mm)

(0.15-0.8)×260×(Φ400)

Power

380V  50Hz  4.5k

Air compression(self-prepared)

0.6-0.8Mpa≥0.5m³/min

Recycle water or circulating water consumption

 40-80L/h

Overall Dimension(L*W*H)

2750×750×1450(including foundation)

Dimension of Each Part

1450×750×1300



1300×750×1450

Weight

About 700kg



Description

  • Follows the GMP structures standared and adopts PLC touch screen interface control system.
  • The main motor is equipped with a vaniable frequency speed controller and with servo-motor drive
  • With Ampoule,vials spcial servo feeder and blister forming detection device
  • With Safety Cover.

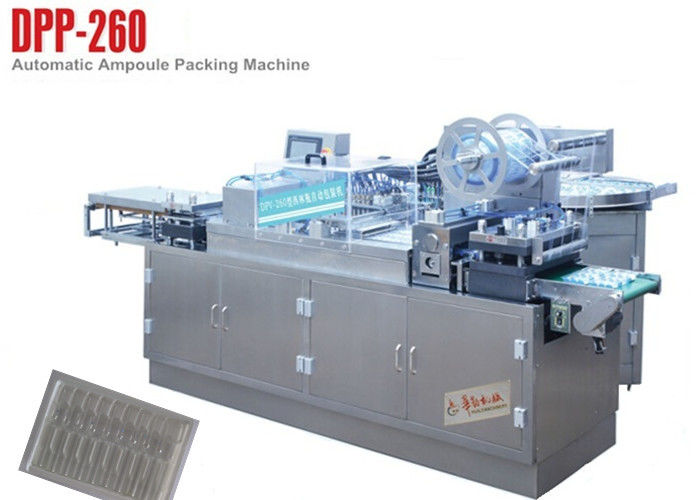

Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules 0

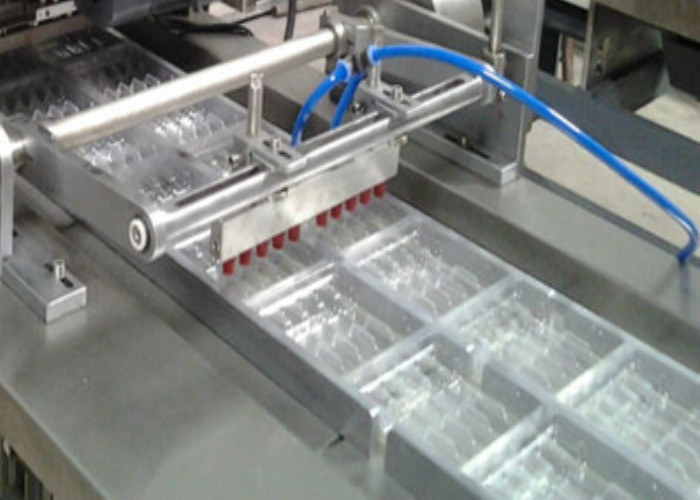

Fully Automatic Pharmaceutical Ampoule Packing Machine for 2ml 5ml 10ml Ampoules 1





Questions and Answers



Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.

Q: what information should I let you know when I want to get quotation?

A: - the size of the blister plates,the target capacity you want the machine meet. The more information the better.
