Professional Ampoule Packing Machine Pharma Blister Packaging Machine

Professional Ampoule Packing Machine Pharma Blister Packaging Machine
Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine Professional Ampoule Packing Machine Pharma Blister Packaging Machine
Basic Information
Place of Origin: China
Brand Name: HUALE MACHINERY
Certification: CE/GMP Standard

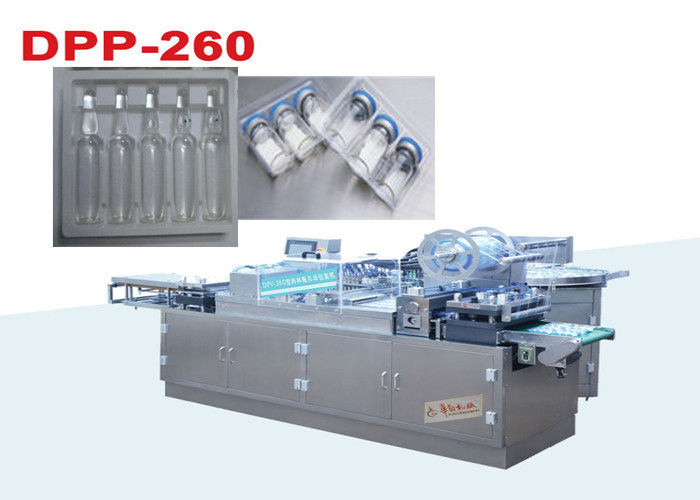

Model Number: DPP-260
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 15 Set per month
Get Best Price Contact Now
Product Name: Automatic Pharmaceutical Oral Liquid Blister Packing Machine Output: Max.30 Cutting/min
Max. Forming Area And Depth: 250*180*30 Overall Dimension: 2750×750×1450MM
Weight: 700kg Power: 380V 50Hz 4.5k
Highlight:

Pharmaceutical Packaging Machine

,

vial filling machine



Name: Professional Ampoule Packing Machine Pharma Blister Packaging Machine





Description

  • The length of the tray can be input in touch screen. Molds are located in positioning slot, and it’s
  • convenient to change the molds. The blisters are formed by air blowing which is controlled by encoder.
  • HIMI: PLC Control, Frequency inverter for speed controlling.
  • Step motor pulling system for saving packaging material and easier adjusting.
  • Auto feeder: It can be designed and required by clients’ different requirments.



Specifications



Item Model

DPP-260

Punching Frequency

10-30 times/min

Max. Forming Area and Depth

250×180×30

Puling length

40-200

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.8)×260×(Φ400)

PTP(mm)

(0.15-0.8)×260×(Φ400)

PET(mm)

(0.15-0.8)×260×(Φ400)

Power

380V  50Hz  4.5k

Air compression(self-prepared)

0.6-0.8Mpa≥0.5m³/min

Recycle water or circulating water consumption

40-80L/h

Overall Dimension(L*W*H)

2750×750×1450(including foundation)

Dimension of Each Part

1450×750×1300

1300×750×1450

Weight

About 700kg

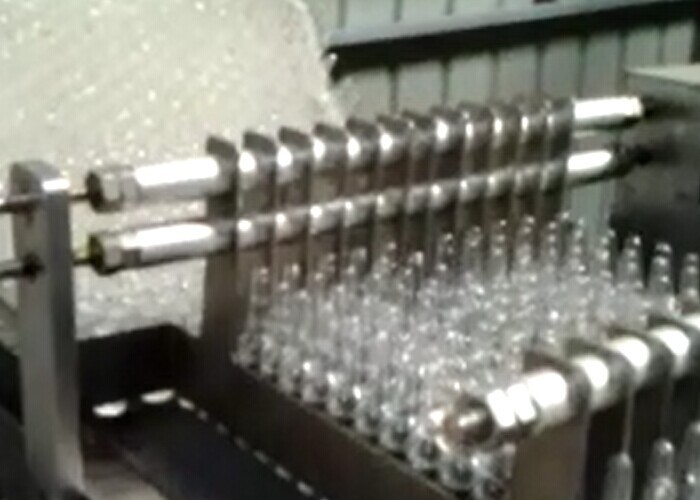

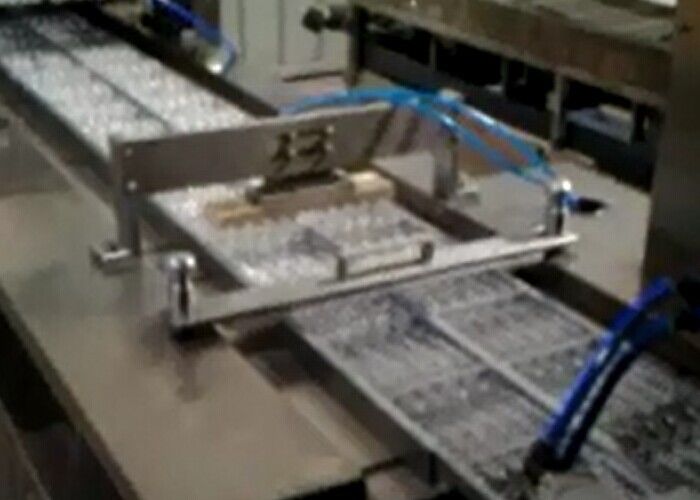

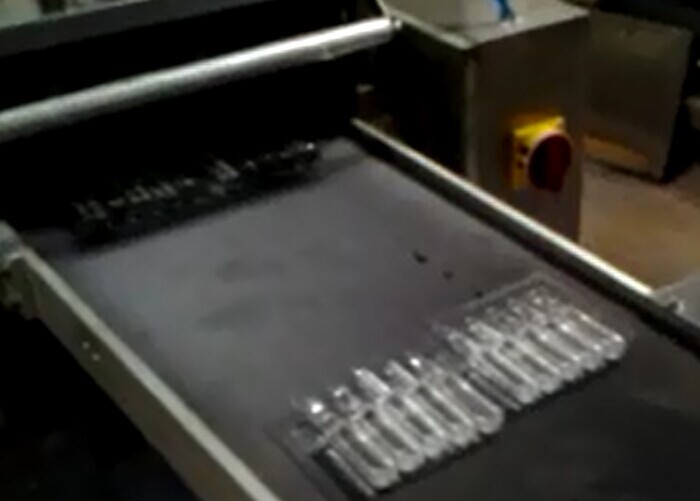

Machine Details



Professional Ampoule Packing Machine Pharma Blister Packaging Machine 0



Questions and Answers



Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.

Q: what information should I let you know when I want to get quotation?

A: - the size of yourproduct ,the target capacity you want the machine meet. The more information the better.
