Name: Mini Automatic Liquid Filling And Sealing Machine for Plastic Ampoule Packing
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DSG-118
Price: 10,000.00 USD
Availability: InStock

Home Products Ampoule Packing Machine

Mini Automatic Liquid Filling And Sealing Machine for Plastic Ampoule Packing

Product Details:

Place of Origin:	China
Brand Name:	Huale
Certification:	ISO
Model Number:	DSG-118

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1-20000 usd/set
Packaging Details:	packed in plastic bag and fixed in export wooden case
Delivery Time:	40 work days
Supply Ability:	5 Sets per month

Contact Now

Detailed Product Description

Machine Material:	Stainless Steel 304	Machine Name:	Liquid Filling And Sealing Machine
Use:	Plastic Ampoul Or Other.	Control System:	PLC Programmable Control System
Automation:	Fully Automatic	Apply:	Liquid Packing
Highlight:	Pharmaceutical Packaging Machine , ampoule filling machine

Product Name:Mini Type Automatic Liquid Filling And Sealing Machine for Plastic Ampoul Packing

Description:

1.The machine is controlled by PLC, Speed can be adjusted.

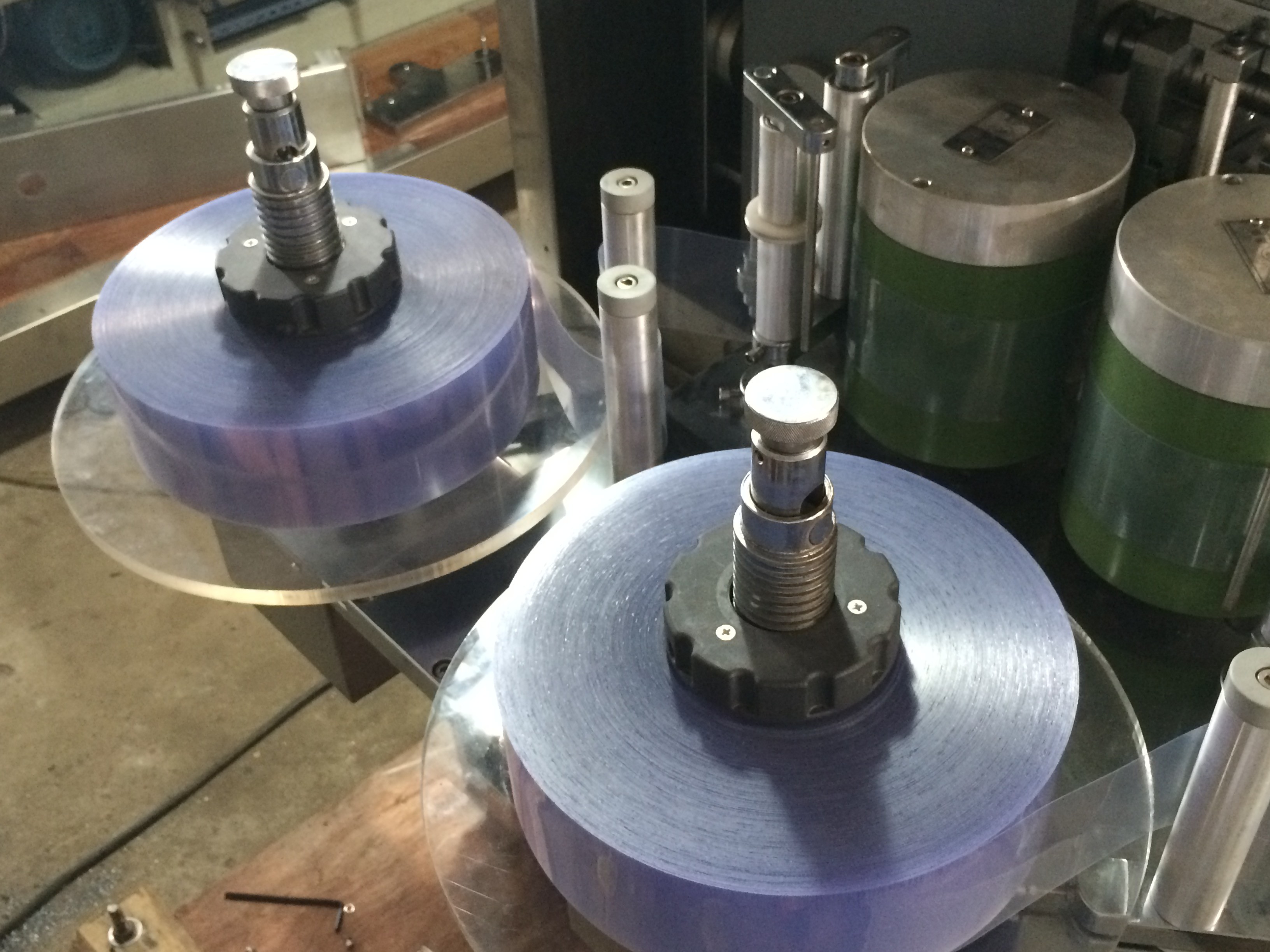

2.Running machine is including Rewinding, forming, filling, sealing, print batch number, cutting, six processes.
3.Touch button panel for operating.

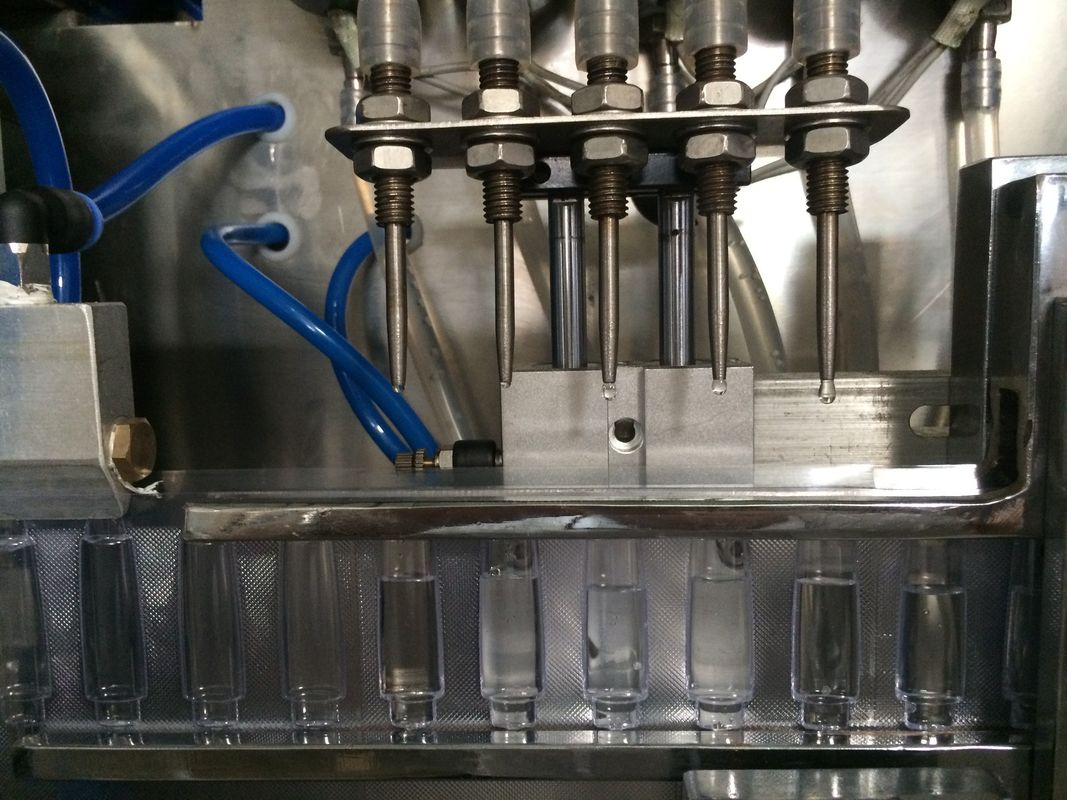

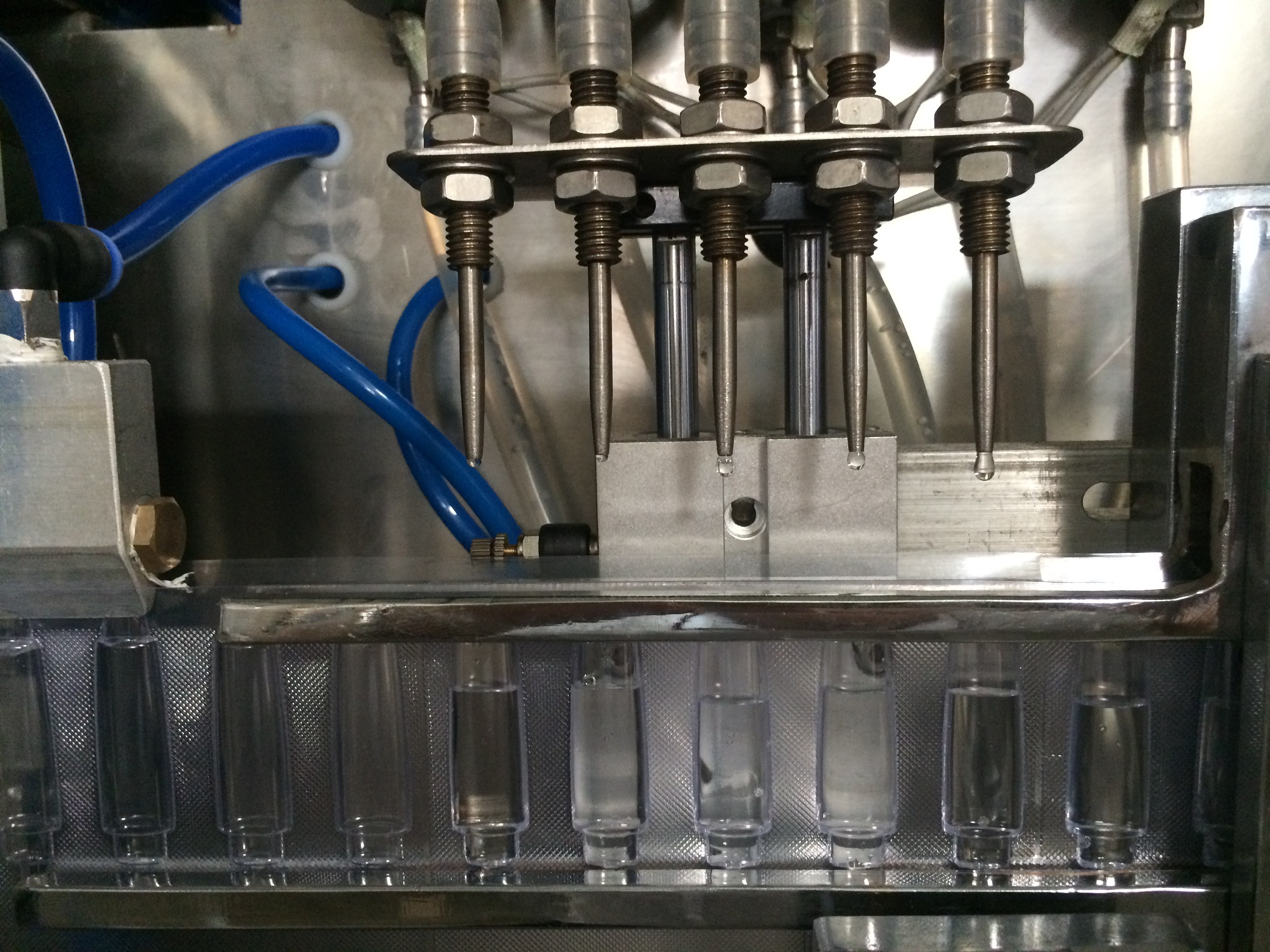

4.The machine adopts piston filling system, never drop and leak, bubbled.
5.Machine whole body is made by stainless steel 304 quality, and suitable for GMP Standard.
6.Main pneumatic parts are imported, and all imported Electronic Part.

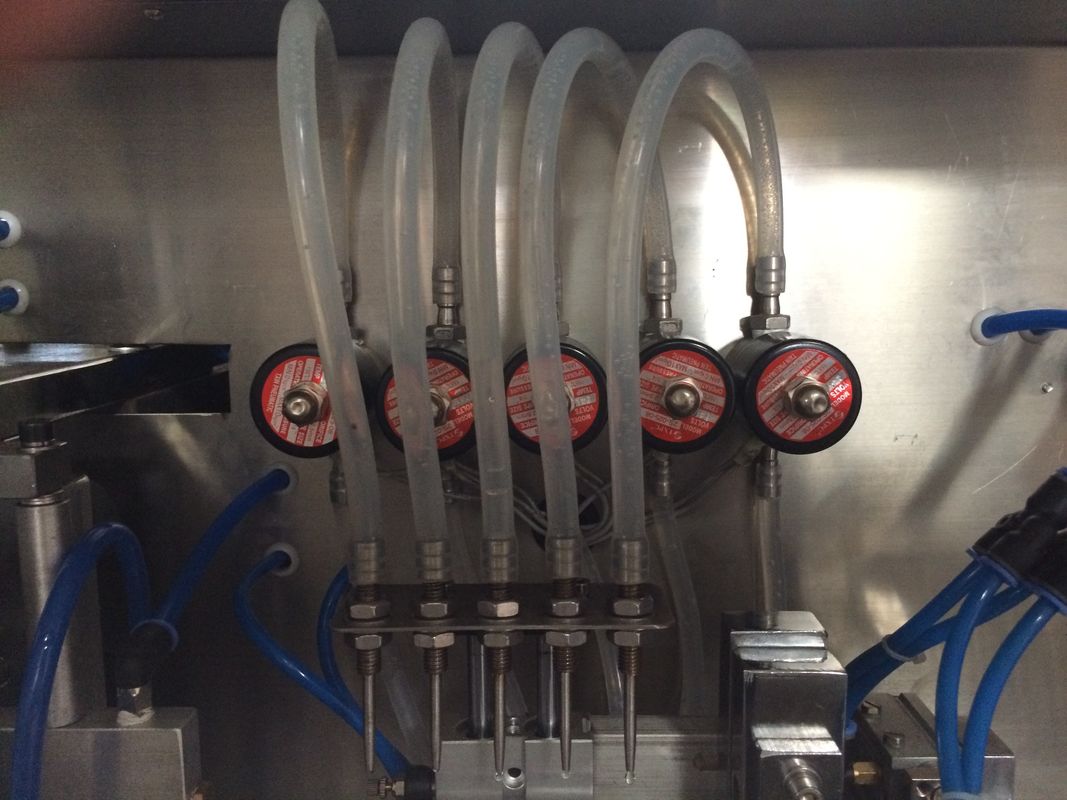

7.Electronic peristaltic pump automatic filling system and mechanical filling two options, accurate measurement, slight error.

Main Technical Data

Model	DSG-118 (2 filling Nozzle)	DSG-118 (5 filling Nozzle)
Punchine Frequency	0-25	0-25
Packing Material	(0.2-0.4) ×120mm	(0.2-0.4) ×120mm
Filling Capacity	2-20ml/pc	5-25ml/pc
Total power	3.5KW	4KW
Power supply	220V-380V/50HZ	220V-380V/50HZ
Weight	500kg	700kg
Overall Dimensions(L×W×H)	1800×800×1400mm	2200×900×1500mm

Application

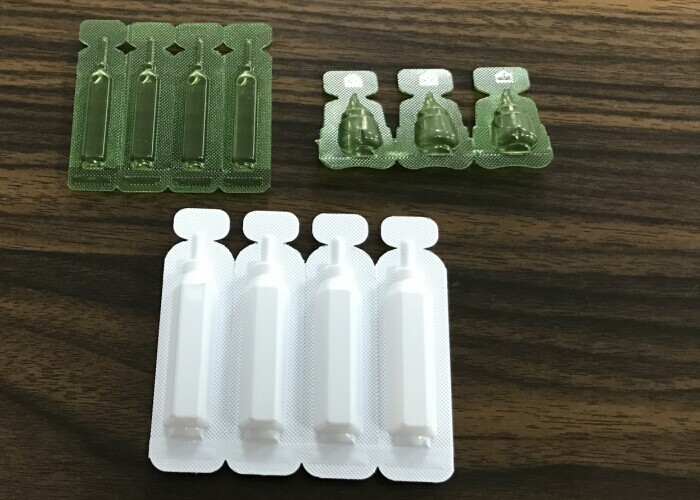

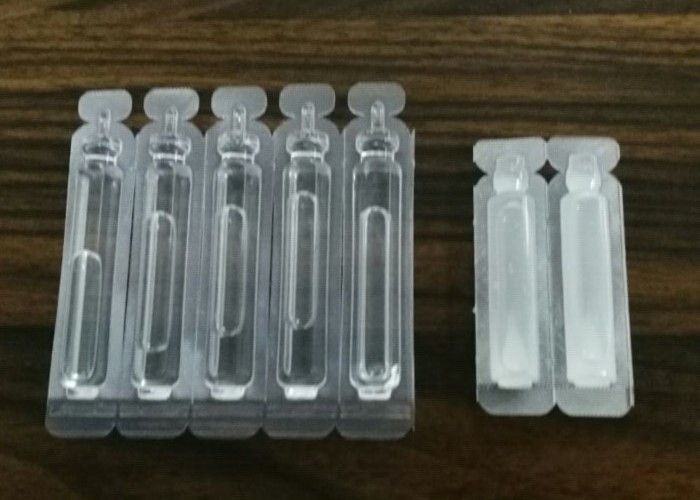

This machine is suitable for medical , food , cosmetic product packaging such as oral liquid , chocolate cream ,jelly with soft granule,medical gel , Aloe-gel,toner, hair dye,hand lotion,perfume and so on.
