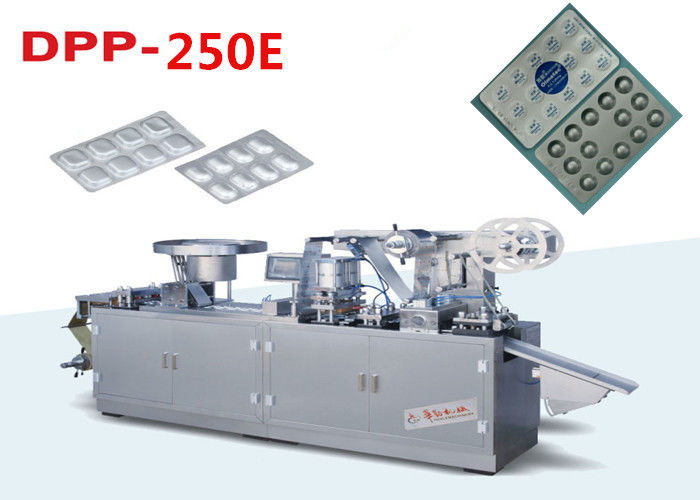

Name: Automatic Pharmaceutical Packaging Equipment Aluminum Foil Blister Pack Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DPP-250E
Availability: InStock

Home Products Pharmaceutical Blister Packaging Machines

Automatic Pharmaceutical Packaging Equipment Aluminum Foil Blister Pack Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DPP-250E

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiation
Packaging Details:	WOODEN BOX.
Delivery Time:	30 working days after received your payment.
Supply Ability:	15 Set per month

Contact Now

Detailed Product Description

Product Name:	Alu Alu Blister Packing Machine	Output:	Max. 45 Cutting/min
Max. Forming Area And Depth:	25012012mm	Pulling:	Step Motor Pulling Or Servo Motor Driving
Punch Pin:	PTFE（High Temperature Resistant, Non Stick Coating）	Detection System:	Mechanical Detection Or Visual Inspection
Used:	Alu-PVC Blister And Alu-Alu Blister
Highlight:	shrink packing machine , Blister Packaging Machine Pharmaceutical Industry

Automatic Pharmaceutical Packaging Equipment Aluminum Foil Blister Pack Machine

This machine is suitable for pack capsules and tablets which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function:aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing modules.

Description

Performance as Aluminum Aluminum blister packing machine

The machine adopt a special cold forming module to make Aluminum foil formed.
The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
Mould and feeder can be designed according to customer ‘s request.
the machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

Performance as Aluminum PVC blister packing machine

The machine use heating board to make PVC’s temperature up to 100℃ and use compressed air to make PVC formed.
The machine is controlled by PLC,which make it has accurately operation and simple construction. The travel scope can be adjusted from 10 to 160mm which expand application range of the machine.
Speed is shifted by step-less transducer. Blanking frequency is 10-30times/min.
Mould and feeder can be designed according to customer ‘s request.
The machine gets the function for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
The heating molds of the packing machine will automatically separate when the machine stops, which contributes to protect the packing material from the heated mold.

TECHINCAL PARAMETERS

Double Function		ALU-ALU	ALU-PVC
Cutting Frequency(ideal sizes:80*57mm)		15-30 cutting/min	20-45 cutting/min
Max. Forming Area and Depth		250×120×12mm	150×110×15mm
Adjustable Scope of Travel(mm)		30-120mm	30-120mm
Packaging material(I.D.Φ75)	PVC(mm)		(0.15-0.4)×260×(Φ400)
	PTP(mm)	(0.02-0.15)×260×(Φ250)	(0.02-0.15)×260×(Φ250)
	Alu Alu Foil	(0.14-0.18)×260×(Φ400)
	Paper(mm)		(50-100)g/㎡ ×260×(Φ300)
Power		380V 50Hz 4.5kw	380V 50Hz 8kw
Air compression(self-prepared)		0.6-0.8Mpa≥0.6m³/min	0.6-0.8Mpa≥0.45m³/min
Recycle water or circulating water consumption		40-80L/h	40-80L/h
Overall Dimension(LWH)(including foundation)		2900×750×1600	2900×750×1600
Dimension of Each Part		1500×750×1600(front)	1500×750×1600(front)
Dimension of Each Part		1400×750×1450(back)	1400×750×1450(back)
Weight		About 1200kg	About 1200kg
