Name: Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DTJ-T
Price: 4700 USD
Availability: InStock

Home Products Semi Auto Capsule Filling Machine

Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DTJ-T

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$4700 /Set
Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Sets per month

Contact Now

Detailed Product Description

Control Mode:	Semi-automatic	Dimension:	13507001600mm
Capsule Size:	00#,0#,1#,2#,3#,4#	Vacuum Pump:	40m3/h
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Driven Type:	Electric
Control:	PLC Control With Touch Screen	Weight:	350kg

Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine

It is a special capsule filling machine which is suitable for capsule filling with powder or granules.

It can be used for Laboratory in pharmaceutical factory, small scale chemical works,

Chemical laboratory, small scale chemical factory,Food factory laboratory etc.

Main parameters

Capacity	Max. 18,000 pcs/h
Power supply	380V/220V 50HZ 2.2KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1350×700×1600
Packing dimension:(mm)	1800×800×1800
Net weight:(Kg)	350
Gross weight:(Kg)	480

Advatages

It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.
It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.

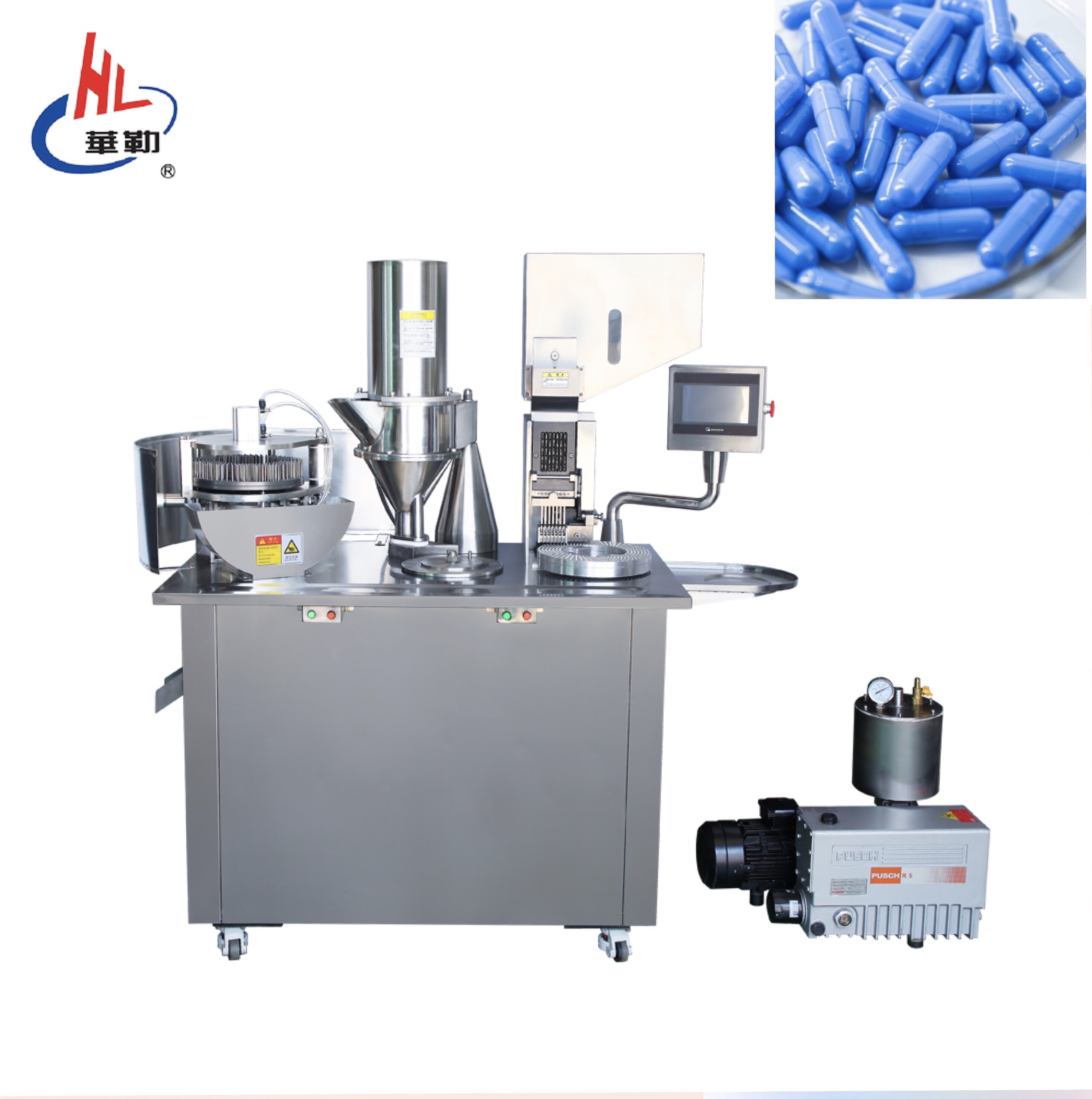

Machine introduction

Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine 0

Finished capsules

Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine 2

Cheap Semi-Auto Capsule Powder Filling Machine Capsule Filler Powder Filling Machine 3
