Place of Origin: | CHINA |
---|---|
Brand Name: | HUALE MACHINERY |
Certification: | CE ISO9001 |
Model Number: | DTJ-V |
Minimum Order Quantity: | 1 Set |
Price: | $4500-7000 /Set |
Packaging Details: | Wooden Box |
Delivery Time: | 30 working days after received your payment |
Supply Ability: | 30 Set per month |
Product Name: | Manual Automatic Capsule Filling Machine | Capacity: | 8000-12500 Capsules/h |
---|---|---|---|
Material: | Stainless Steel 304/316 | Control System: | PLC Control System |
Vacuum Pump: | Oil Vacuum Pump (XD-040 40m3/h) | Capacity Of Air Compressor: | 0.1m3/min |
Power Supply: | 380V/220V 50HZ 2.1KW | Used For: | Powder Or Granules |
Air Compressor: | Not Provide | ||
Highlight: | Semi Automatic Capsule Filler,Gelatin Capsule Filling Machine |

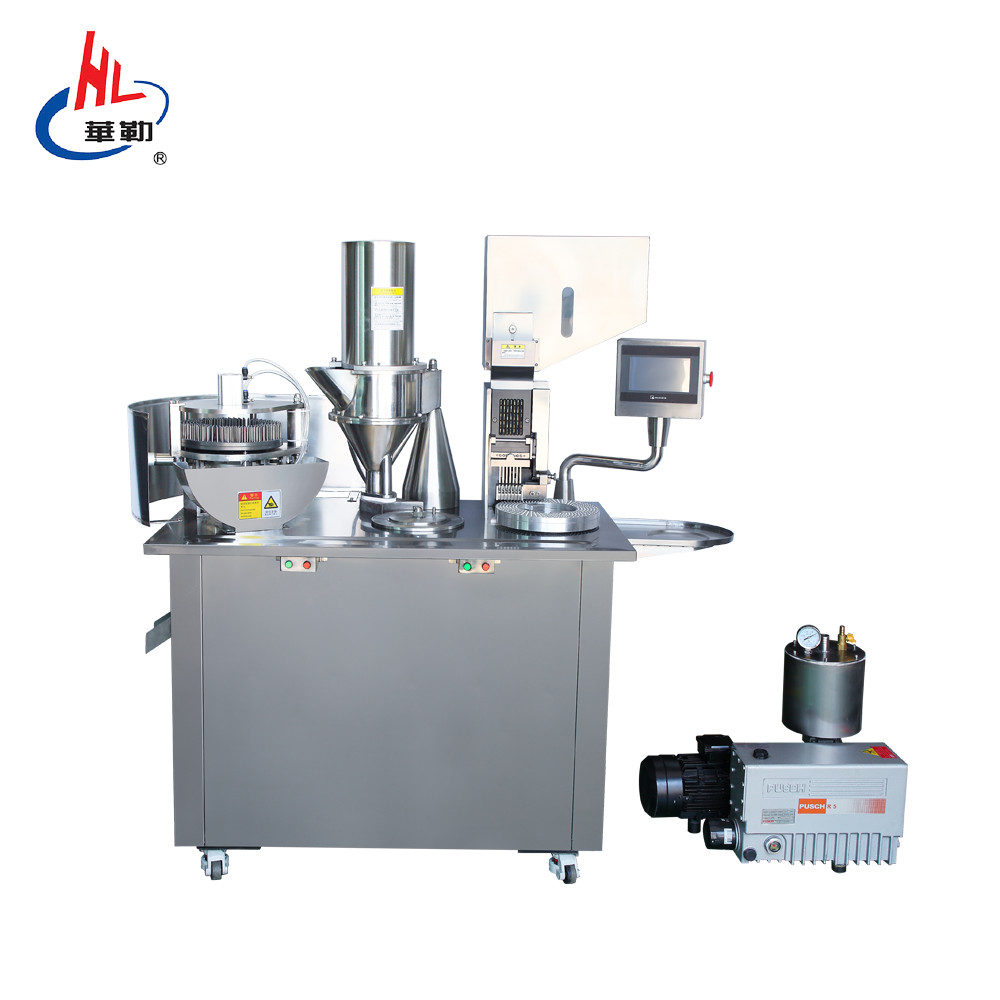

Popular Gelatin Capsule Filling Machine Muti Functional Capsule Filling Equipment
Introduction
This machine is suitable for medium & small pharmaceutical factory, hospital preparation lab, health supplement industry etc. It si suitable for capsule which is filled with powder or granules.

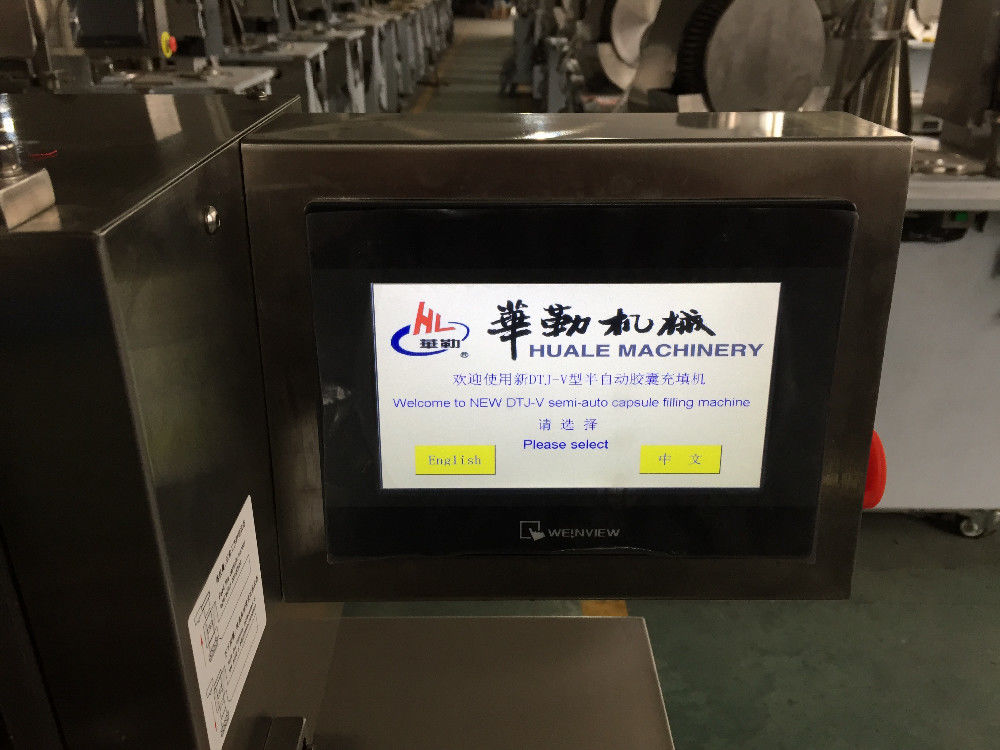

The machine adopt a programmable control system, touch panel, speed-shift, and electronic automatic counter.It can semi-automatically complete the actions of position, separation, filling, locking, etc., suitable for conventional pharmaceutical products such as powder, pellets, granules, as well as for nutritional products such as herbs, vitamins or even special products with sticky, abrasive, fibrous, or other properties. This space-saving machine provides a straightforward operation, format changeover within five minutes and dosage accuracy.
Technical parameters--old type
Machine Model |
DTJ-V |
Output |
12500-22500 Capsules/H |
Capsule Size |
Suitable for filling capsule size 00#-5# |
Dosage Type |
Powder/Pellet/granules |
Power Supply |
380V 50HZ 2.1KW |
Overall dimension. |
1200mm x 700mm x 1600mm |
Net weight. |
330kg |
Technical parameters--new type
Capsule size | No. 000#-3# |
Capacity(capsules/h) | 10000-22500((Depending on the operation of skilled workers) |
Power supply | 380V 3Pharse 4.0kw |
Vacuum pump | 40m3/h |
Capacity of air compressor | 0.03m3/min 0.7Mpa |
Overall dimensions:(mm) | 1140×700×1630 |
Packing dimension:(mm) | 1650×800×1750 |
Net weight:(Kg) | 430 |
Gross weight:(Kg) | 500 |
Finished capsules

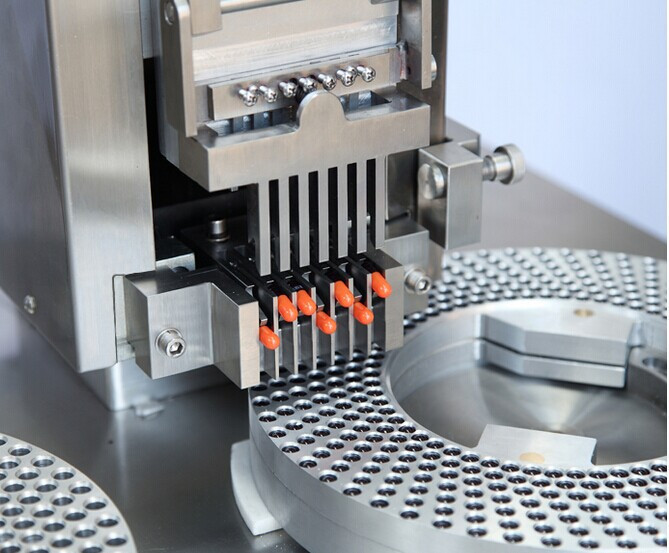

Introduction of filling process

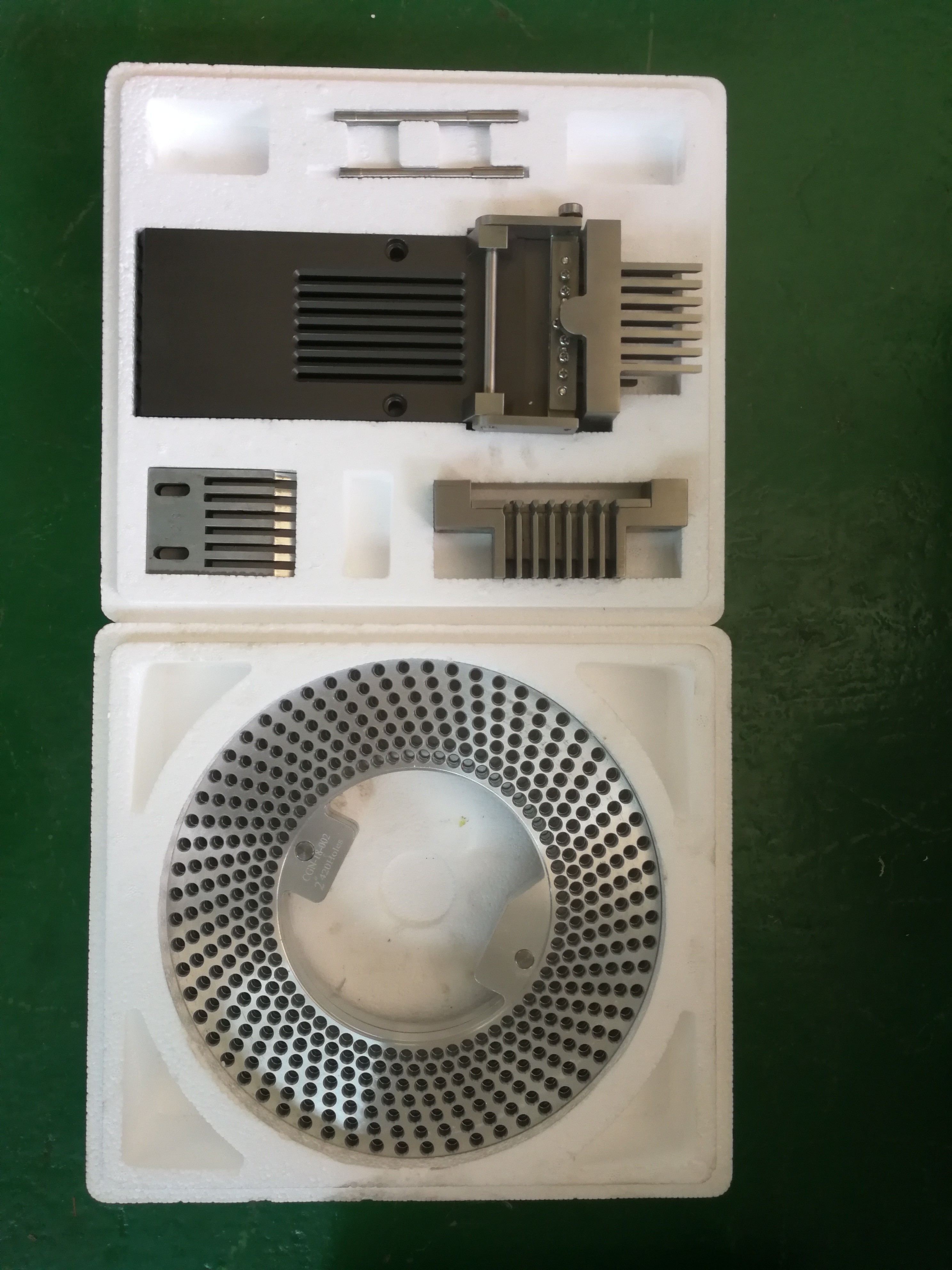

A Set Of Mold
NO. |
Name |
1 |
Capsule-dispensing pipe |
2 |
Capsule-pressing head |
3 |
Capsule-carrying switch |
4 |
Capsule-carrying comb |
5 |
Capsule-carrying comb base |
6 |
Capsule-driving plate |
7 |
Pin disk |
8 |
Capsule ring |
