Place of Origin: | china |
---|---|
Brand Name: | HUALE MACHINUARY |
Certification: | CE/ ISO9001 |
Model Number: | DTJ-V |
Minimum Order Quantity: | 1 set |
Price: | negoation |
Packaging Details: | wooden box |
Delivery Time: | 30 working days after received your payment |
Supply Ability: | 20 Set per month |
Product Name: | Semi-automatic Capsule Filling Machine | Capsule Size: | 00#-5# And Safe Capsule A-E |
---|---|---|---|
Power Supply: | 380V 50Hz 2.1Kw | Application: | Powder Or Granules |
Output: | 12500-22500 Pcs/h | ||
Highlight: | Small Capsule Filling Machine,Semi Automatic Capsule Filler |

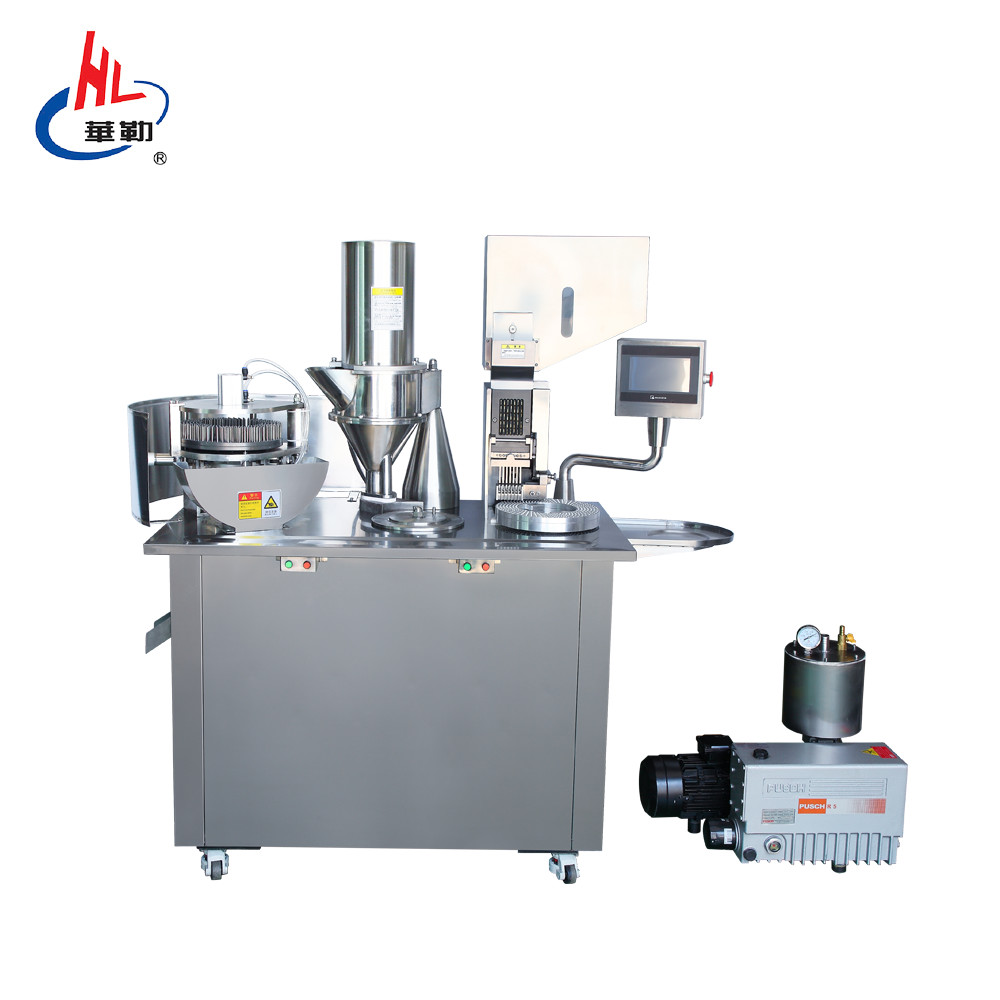

Hot Sale Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery
Introductions:
This semi automatic herbal capsule filling machine is suitable for medium and small batch production.
This machine is used widely by medium & small pharmaceutical factory, hospital preparation lab, health supplement industry etc.
Performance and characteristic
Technical parameters---Old type
Machine Model |
DTJ-V |
Output |
12500-22500 Capsules/H |
Capsule Size |
Suitable for filling capsule size 00#-5# |
Dosage Type |
Powder/Pellet/granules |
Power Supply |
380V 50HZ 2.1KW |
Overall dimension. |
1200mm x 700mm x 1600mm |
Net weight. |
330kg |

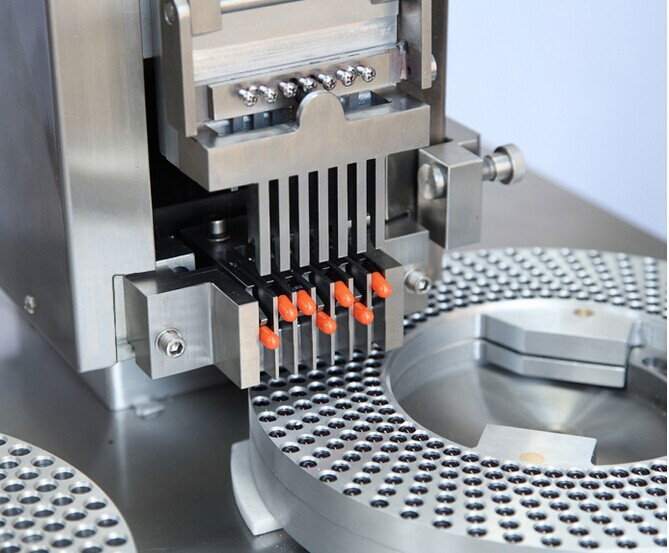

Machine parts Introduction
Technical parameters---New type
Capsule size | No. 000#-3# |
Capacity(capsules/h) | 10000-22500((Depending on the operation of skilled workers) |
Power supply | 380V 3Pharse 4.0kw |
Vacuum pump | 40m3/h |
Capacity of air compressor | 0.03m3/min 0.7Mpa |
Overall dimensions:(mm) | 1140*700*1630 |
Packing dimension:(mm) | 1650*800*1750 |
Net weight:(Kg) | 430 |
Gross weight:(Kg) | 500 |

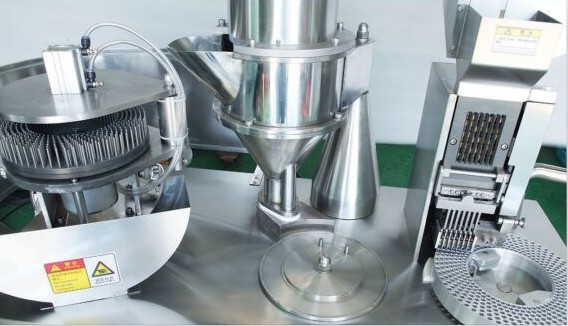

Machine part introduction
ELECTRIC CONFIGURATION
380V 50Hz 3Pharse 4wires |
||||
Name | Model | Brand | Qua | Remark |
Single pole rotary vane vacuum pump | XD-040 |
Shanghai Fu Yu |
1 | |
three phase asynchronous motor | Y263M2-4 | DA SU | 2 | |
Three phase vertical gear reduction motor | TJH400W-7.5:1 | TAI JIE | 1 |
Silent type |
Frequency converter | DVM-2S004G-02 | Delisle | 3 | |
PLC | DVD32ES200T | DELTA | 1 | |
Touch screen | MT6070iH | Weinview | 1 | |
Worm gear reducer (double out axles) | NMRV50-15:1-63B5 | DING ZU | 1 | |
transformer | JBK3-63 | RUI AN | 1 | |
intermediate relay | JIX-2C | OMRON | 2 | |
AC relay | CJX2-12 |
Schneider |
2 | |
Breaker | DZ47-63 D20 |
Schneider |
1 | |
Breaker | DZ47-63 C6 |
Schneider |
1 | |
Emergency stop switch | Y090-11X | CHINT | 1 | |
Filling cylinder | SC50X125 | Adyk | 1 | |
Lock cylinder | MAL100X80 | Adyk | 1 | |
Air filter pressure regulating valve |
AL-2000 | Adyk | 1 | |
photoswitc |
GL-8F | JAPAN | 1 | |
proximity switch |
H12-D5NK | RUI XIANG | 1 |
