Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DTJ-V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$5000-6500 /Set
Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Setsper month

Contact Now

Detailed Product Description

Control Mode:	Semi-automatic	Dimension:	13507001600mm
Capsule Size:	00#,0#,1#,2#,3#,4# Are Available	Vacuum Pump:	Oil Vacuum Pump (XD-040 40m3/h)
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Driven Type:	Electric
Control:	PLC Programming Control With Touch Screen	Weight:	330kg
Highlight:	Semi Automatic Capsule Filler , Gelatin Capsule Filling Machine

Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump

It is a special capsule filling machine which is suitable for capsule filling with powder or granules.

It can be used for Laboratory in pharmaceutical factory, small scale chemical works,

Chemical laboratory, small scale chemical factory,Food factory laboratory etc.

Main parameters

Price	6500USD/SET
Capsule size	No. 00#-5# & Security Capsule A-E
Capacity	Max. 18,000 pcs/h
Power supply	380V/220V 50HZ 2.2KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1350×700×1600
Packing dimension:(mm)	1800×800×1800
Net weight:(Kg)	330
Gross weight:(Kg)	400

Advatages

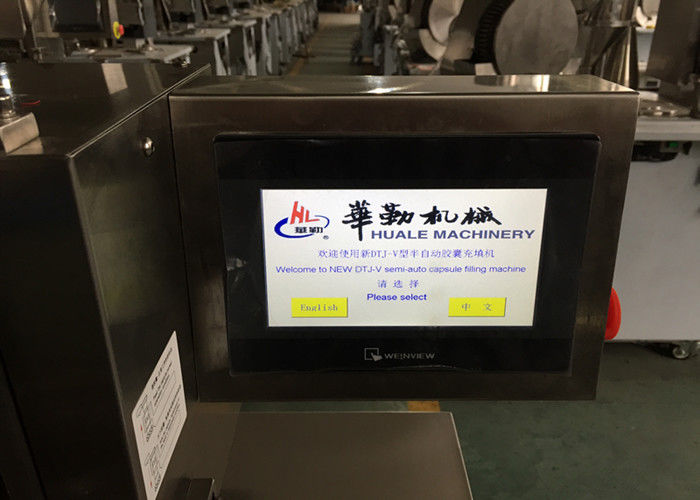

It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.

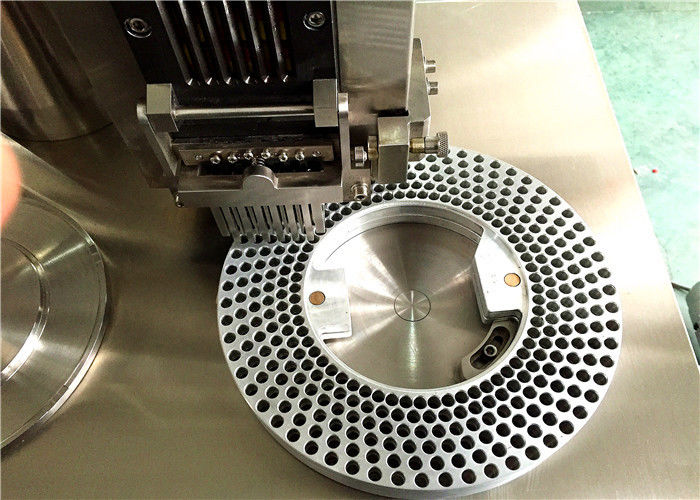

It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.

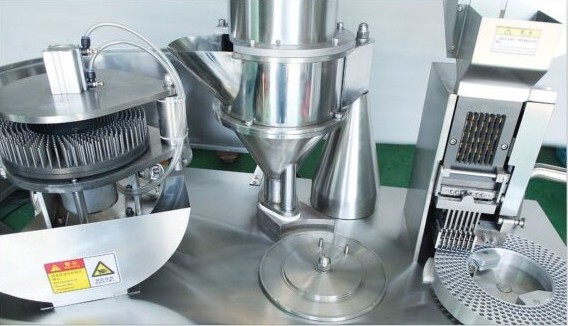

Machine introduction

Finished capsules

Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump 2

Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump 3

Old style machine introduction

Machine Model	DTJ-V
Output	8000-12500 capsules/hour
Capsule size	00#-5# & Safety Capsule A-E
Power supply	380V 50HZ 2.1KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1200×700×1600
Net weight:(Kg)	330kg
Holes	1#-5#:420 0#:360 00#:300 000#:250
Mold	Capsule-dispensing pipe, Capsule-pressing head, Capsule-carrying switch, Capsule-carrying comb, Capsule-carrying comb base, Capsule-driving plate, Pin disk, Capsule ring

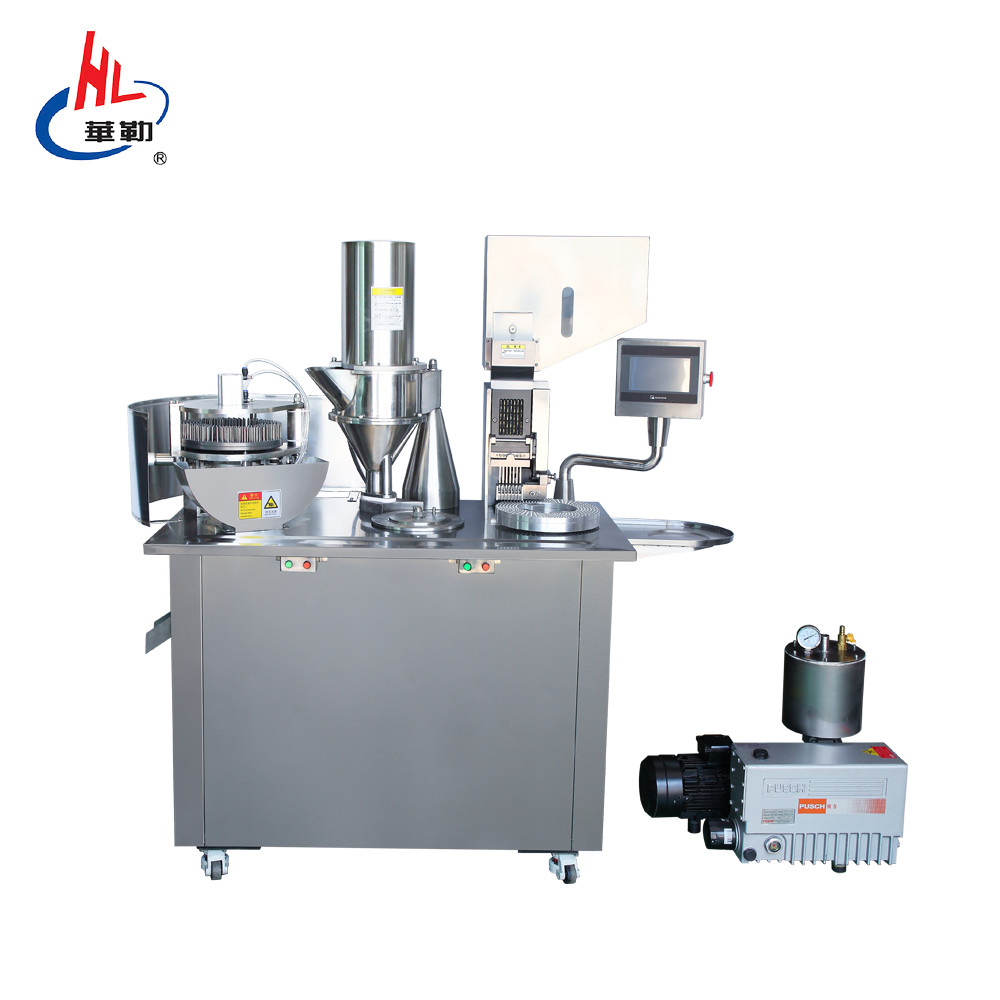

Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump 4

1: Pedal	7: Filling mechanism
2: Output	8: Input of Capsule (The hopper)
3: Filling Control Button	9: Capsule dispensing mechanism
4: Pins Plate	10: Security Baffle
5: Locking mechanism	11: The mold
6: Input of Powder	12: working bench 13.Control panel

Advanced Touch Screen Semi Automatic Capsule Filling Machine Oil Vacuum Pump 5

NO	Name
1	Capsule-dispensing pipe
2	Capsule-pressing head
3	Capsule-carrying switch
4	Capsule-carrying comb
5	Capsule-carrying comb base
6	Capsule-driving plate
7	Pin disk
8	Capsule ring
